| Place of Origin: | CHINA |
| Brand Name: | YUHONG SPECIAL STEEL |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| Model Number: | 201,202,304,304l,316,316l,409 | Standard: | ASTM A268 |
|---|---|---|---|
| Material: | Ss409 | Specification: | ASTM A268 TP409 Ferritic Martensitic Stainless Steel Tube |
| Test: | NDT IBR | Type: | Seamless,welded |
| Application: | Ornament,medical,industry,etc | Shape: | Round.square.Rectangle |
| Finish: | Annealed & Pickled, Bright Annealing, Polished | Surface: | Polishing, Mirro Surface, Bright, Pickling |
| High Light: | Martensitic Stainless Steel Tube,Ferritic Stainless Steel Tube,Stainless Steel ASTM A268 Tube |
||

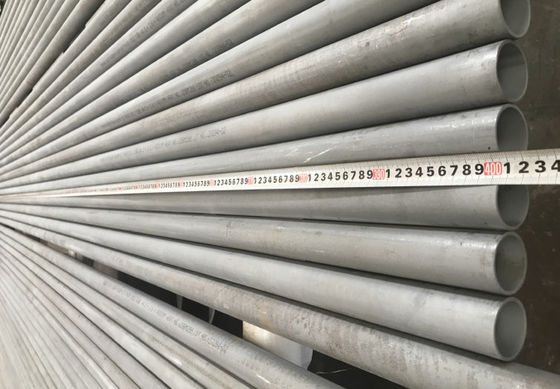

ASTM A268 TP409 FERRITIC AND MARTENSITIC STAINLESS STEEL TUBE
We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Specification:
| Model | Stainless Steel Tube | |||
| Standard | ASTM A213,ASTM A312,ASTM A789,ASTM A790 | |||
| Material Grade | 201/202/304/316/S31803/S32750 | |||
| Outer Diameter | 0.1mm-219.1mm | |||
| Thickness | 0.05mm-20mm | |||
| Length | ≤12000mm or as per customer request | |||
| Tolerance | a) Outer Diameter:±0.2mm | |||
| b) Thickness:±10% or as customer request | ||||
| c) Length:±10mm | ||||
| Surface | Satin/Hairline:180#,320# | |||
| Polish:400#,600#,800# or Mirror surface | ||||
| Pickling | ||||
| Application | Decoration,(processed into railings,handrails,doors and windows),Medical,Industry,etc. | |||
| Packaging | Plastic bag/woven packing | |||
| Please send details packing to us if you have other requirements | ||||
Chemical composition:
| Grade | C | Si | Mn | P | S | Cr | Ni | Ti |
| TP409, UNS S40900 | 0.08 max | 1.00 max | 1.00 max | 0.045 max | 0.030 max | 10.5~11.7 | 0.5 max | 6*C min, 0.75 max |
Mechanical properties:
| Tensile strength | Yield strength | Elongation |
| 380 | 170 | 20 |
ASTM 268 Standard Specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service. Covers standard specification for a number of grades of nominal wal thickness, welded ferritic and martensitic stainless steel tubing for general corrosion-resisting and high-temperature service.
The steel shall conform to the required chemical coompositon for carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, aluminum, copper, nitrogen, titanium, and columbium. The number of tubes in a lot heat treated by the continuous process shall be determined from the size of the tubes. The steel shall conform to the following tensile properties: tensile strength, yield strength, and elongation.
The tubes shall have a hardness number that will not exceed the prescribed Brinell and Rockwell hardness values. Several mechanical tests shall be conducted, namely: tension test; flaring test (for seamless tubes); flange test (for welded tubes); hardness test; reverse flattening test; intergranular corrosion test; and hydrostatic or nondestructive electric test.
