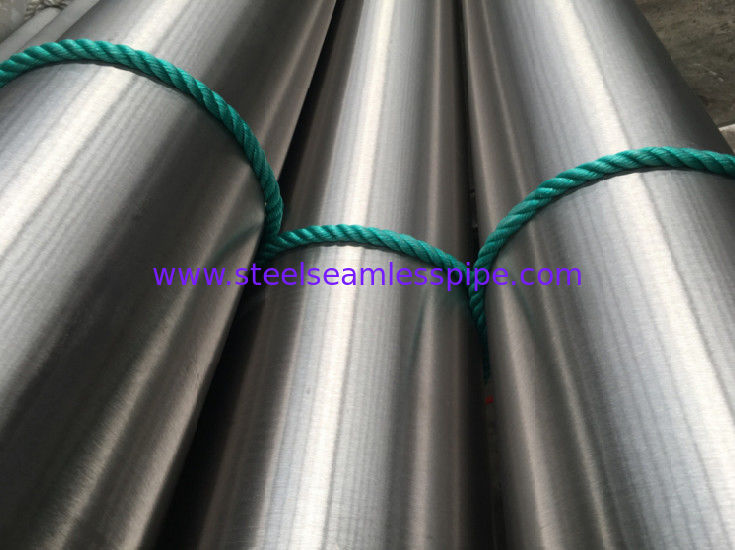

ASME SB165 UNS NO4400 Monel 400 Nickel Alloy Pipe

ASME SB165 UNS NO4400 Monel 400 Nickel Alloy Pipe

  • ASME SB165 UNS NO4400 Monel 400 Nickel Alloy Pipe
  • ASME SB165 UNS NO4400 Monel 400 Nickel Alloy Pipe
  • ASME SB165 UNS NO4400 Monel 400 Nickel Alloy Pipe
  • ASME SB165 UNS NO4400 Monel 400 Nickel Alloy Pipe
ASME SB165 UNS NO4400 Monel 400 Nickel Alloy Pipe
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS
Model Number: ASME SB165 UNS NO4400 Alloy Monel 400 Nickel Alloy Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Standard: ASME SB165 Material: Monel 400
Application: Fluid Pipe Chemical Fertilizer Pipe Shape: Round Pipe
Technique: Hot Rolled Surface: Black, Galvanized, Oiled, Painted,etc.
Processing Service: Bending, Welding, Decoiling, Punching, Cutting
High Light:

Monel 400 Nickel Alloy Pipe


ASME SB165 Nickel Alloy Pipe


ASME SB165 monel 400 pipe

ASME SB165 UNS NO4400 Alloy Monel 400 Nickel Alloy Pipe


We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.


Alloy 400 (UNS N04400) is a solid-solution alloy that can be hardened only by cold working. It has high strength and toughness over a wide temperature range and excellent resistance to many corrosive environments.


Alloy 400 is widely used in many fields, especially marine and chemical processing. Typical applications are valves and pumps; pump and propeller shafts; marine fixtures and fasteners; electrical and electronic components; springs; chemical processing equipment; gasoline and fresh water tanks;  crude petroleum stills, process vessels and piping; boiler feedwater heaters and other eat exchangers; and deaerating heaters.


These ASTM B165 Copper Nickel Seamless Pipes is widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas. In these applications, it is advantageous to use a nickel – based alloy such as ASME SB 165 Copper Nickel Seamless Tubes due to its resistance to localized corrosion in these applications. Nickel – based alloys such as these ASTM B165 Cupro Nickel Seamless Pipes have a tendency to crater crack, so grinding of starts and stops is recommended. Contamination by grease, oil, lead, sulphur, or other low melting point elements in ASME SB 165 Cupro Nickel Seamless Tubes can lead to severe cracking problems. The welding surface and adjacent areas of these ASTM B165 Cu-Ni Seamless Pipes should be cleaned thoroughly with an appropriate solvent such as 99.9 % isopropanol (IPA). Prior to any welding for ASME SB 165 Cu-Ni Seamless Tubes, all foreign matter — grease, cutting fluids, crayon markings, scale — should be removed. Solution annealing of these ASTM B165 Copper Nickel Pipes is performed at a temperature of 2150 Degree F for a time commensurate with section size. The heat – affected weld zones in ASME SB 165 Copper Nickel Tubes have reduced precipitation of carbides and other phases to ensure uniform corrosion resistance.


Monel 400 Chemical Composition

Grade UNS Chemical,%
C Si Mn S Ni Cu Fe
Monel 400 N04400 0.030 Max 0.50 Max 2.00 Max 0.024 Max Ni+Co 63.0 Min 28.0-34.0 2.50 Max


Monel 400 Mechanical Properties

Grade UNS Tensile Strength Min,MPa Yield Strength Min,MPa Elongation in 2 in or 50mm,Min,%
Monel 400 N04400 483 193 35




  • Feed water and steam generator tubing.
  • Brine heaters, sea water scrubbers in tanker inert gas systems.
  • Sulfuric acid and hydrofluoric acid alkylation plants.
  • Pickling bat heating coils.
  • Heat exchangers in a variety of industries.
  • Transfer piping from oil refinery crude columns.
  • Plant for the refining of uranium and isotope separation in the production of nuclear fuel.
  • Pumps and valves used in the manufacture of perchlorethylene, chlorinated plastics.
  • Monoethanolamine (MEA) reboiling tube.
  • Cladding for the upper areas of oil refinery crude columns.
  • Propeller and pump shafts.


ASME SB165 UNS NO4400 Monel 400 Nickel Alloy Pipe 0
