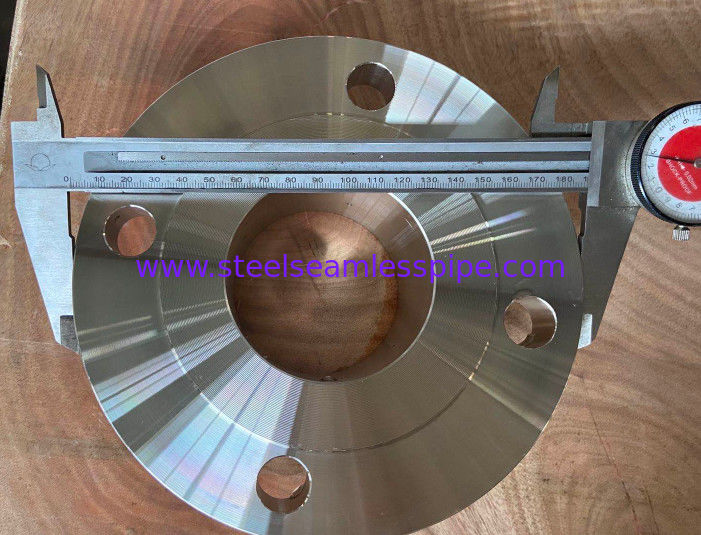

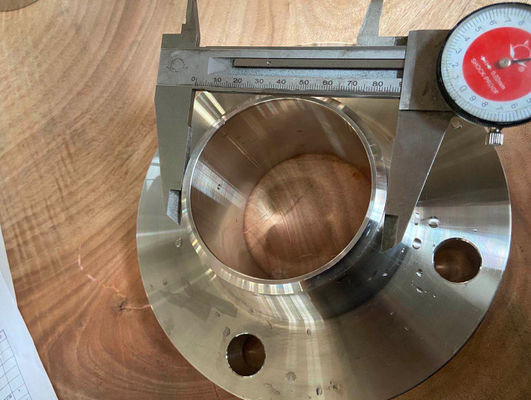

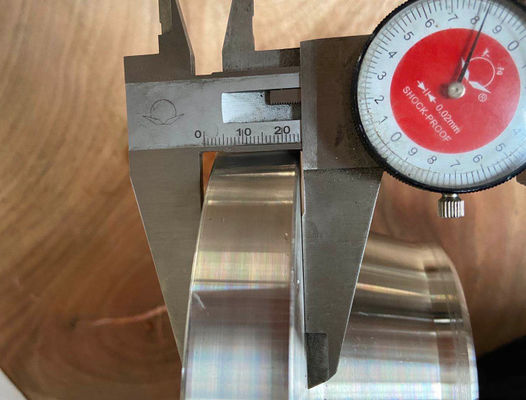

ASTM B564 UNS N02200 ASME B16.5 Forged Steel Flanges

ASTM B564 UNS N02200 ASME B16.5 Forged Steel Flanges

  • ASTM B564 UNS N02200 ASME B16.5 Forged Steel Flanges
  • ASTM B564 UNS N02200 ASME B16.5 Forged Steel Flanges
  • ASTM B564 UNS N02200 ASME B16.5 Forged Steel Flanges
  • ASTM B564 UNS N02200 ASME B16.5 Forged Steel Flanges
ASTM B564 UNS N02200 ASME B16.5 Forged Steel Flanges
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: API , ABS, DNV, GL , LR, NK
Model Number: ASTM B564 UNS N02200 NICKEL 200 FORGED FLANGE ASME B16.5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Size: 1/2"-120" Standard: DIN,ANSI,ISO,ASME,JIS
Material: Nickel 200 Type: Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange
Process: Forged Packing: Wooden Case
Technics: Froged
High Light:

ASTM B564 forged steel flanges

,

ASME B16.5 forged steel flanges

,

UNS N02200 forged stainless flanges

ASTM B564 UNS N02200 NICKEL 200 FORGED FLANGE ASME B16.5



We are one of the biggest projects pipeline products supplier in China , Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.



Specification

Grade

Nickel Alloy 200 / UNS N02200

Standard

ASTM B564, ASME SB564

Dimensions

ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44

Size

1/2" - 48" (15NB - 1200NB)

Class / Pressure Rating

150 Class, 300 Class, 200 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.

Form

Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges

Flange Face Type

Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)





Equivalent grades for nickel 200/201 weld neck flange

STANDARD

WERKSTOFF NR.

UNS

JIS

BS

GOST

AFNOR

EN

Nickel 200

2.4066

N02200

NW 2200

NA 11

НП-2

N-100M

Ni 99.2

Nickel 201

2.4068

N02201

NW 2201

NA 12

НП-2

-

LC-Ni 99



Nickel 200/201 Chemical Composition

Grade C Mn Si S Cu Fe Ni
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min
Nickel 201 0.02 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min



Nickel 200/201 Mechanicla Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 / 201 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45%





Product Range:

WNRF Flanges Size : 1/8" NB TO 48"NB.

WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Stainless Steel WNRF Flanges: ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181

Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal

WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10

Value Added Services





Nickel Alloy 200 Flanges Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry
