Stainless Steel A403 WP310S 90 Degree Elbow

Stainless Steel A403 WP310S 90 Degree Elbow

  • Stainless Steel A403 WP310S 90 Degree Elbow
  • Stainless Steel A403 WP310S 90 Degree Elbow
  • Stainless Steel A403 WP310S 90 Degree Elbow
  • Stainless Steel A403 WP310S 90 Degree Elbow
  • Stainless Steel A403 WP310S 90 Degree Elbow
Stainless Steel A403 WP310S 90 Degree Elbow
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: API , ABS, DNV, GL , LR, NK.
Model Number: A403 WP310S Stainless Steel Pipe Fitting 90 Degree Elbow
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIABLE

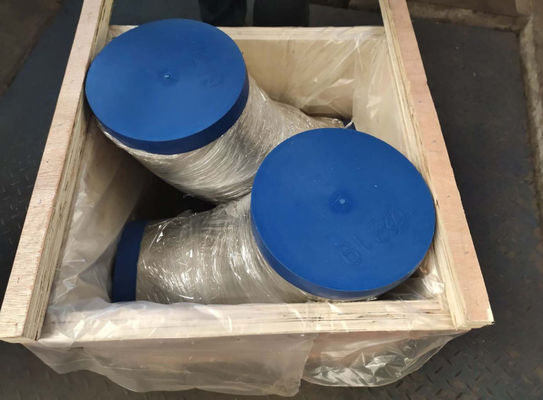

Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Specification: A403 WP310S Stainless Steel Pipe Fitting 90 Degree Elbow Shape: Elbow
Connection: Welding Application: Connect Pipe
Color: Silver Keyword: Pipe Fitting,90 Degree Elbow
Technics: Forged.
High Light:

A403 90 degree elbow

,

WP310S 90 degree elbow

,

WP310S 90 degree elbow fitting

A403 WP310S Stainless Steel Pipe Fitting 90 Degree Elbow


We are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.

ASTM A403 is a balanced, austenitic, chromium steel containing columbium which takes into consideration the end of carbide precipitation, and thus intergranular corrosion.

ASTM A403 is balanced out by the increases of chromium and tantalum and offers higher creep and stress rupture properties than A304 and A304L, which may also be utilized for exposures where sensitization and intergranular corrosion are of concern.The expansion of columbium likewise permits ASTM A403 to have outstanding corrosion resistance, better than that of A321. ASTM A403H is the higher carbon composition form of ASTM A403 and display enhanced high temperature and creep properties.



The 310 SS Weld Fittings could be welded and are stronger than the threaded fittings. The ASTM A403 WP310S Fittings have a wide range of applications such as the A403 WP310S Elbow which is used to change the direction of a fluid flow. The ASTM A403 gr WP310S can be produced in forged condition. The A403 WP310S material allows the 310S Pipe Fittings to be produced either welded or seamless in nature. The A403 Grade WP310S Buttweld Fittings are stronger due to their weld before the heat treatment.


Characteristics

  • Higher creep stress and rupture properties when compared with 304
  • Ideal for high temperature service
  • Overcomes sensitization and intergranular corrosion concerns
  • Can be used in elevated temperature applications
  • Due to stabilisation the material offers better overall corrosion resistance when compared to 304/304L





A403 WP310/310S Equivalent Gades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 310 1.4841 S31000 SUS 310 310S24 20Ch25N20S2 X15CrNi25-20
SS 310S 1.4845 S31008 SUS 310S 310S16 20Ch23N18 X8CrNi25-21
SS 310H S31009





ASTM A403 WP310S Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 310 0.015 max 2.0 max 0.15 max 0.020 max 0.015 max 24.00 – 26.00 0.10 max 19.00 – 21.00 54.7 min
SS 310S 0.08 max 2.0 max 1.00 max 0.045 max 0.030 max 24.00 – 26.00 0.75 max 19.00 – 21.00 53.095 min
SS 310H 0.04 – 0.10 2.0 max 1.00 max 0.045 max 0.030 max 24.00 – 26.00 19.00 – 21.00 53.885 min





ASTM A403 WP310S Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1402 °C (2555 °F) Psi – 75000, MPa – 515 Psi – 30000, MPa – 205 40%





ASTM A403 WP310 Stainless Steel Pipe Fittings Specification

Specifications : ASTM A403 / ASME SA403

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Type : Seamless / Welded / Fabricated

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS



Stainless Steel A403 WP310S 90 Degree Elbow 0
