Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | ASTMA234 Alloy Steel Gr WP11 Buttweld Fittings Equal Tee |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| Specification: | ASTMA234 Alloy Steel Gr WP11 Buttweld Fittings Equal Tee | Application: | Connect Pipe |
|---|---|---|---|
| Product Name: | A234 WPB Black Pipe Fitting Tee | Type: | Elbow,Nipple,Pipe Threaded,Reducer,elbow.tee |
| Standard: | ANSI/ASME B16.9 | Color: | Black |
| Surface: | Black Paint | Shape: | Equal. |
| High Light: | ASTMA234 butt weld pipe fittings,ASTMA234 equal tee pipe fitting,Gr WP11 equal tee pipe fitting |
||

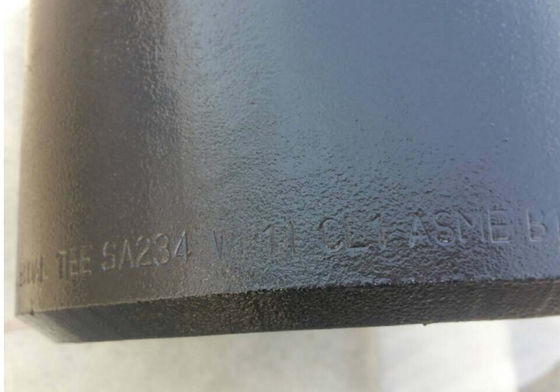

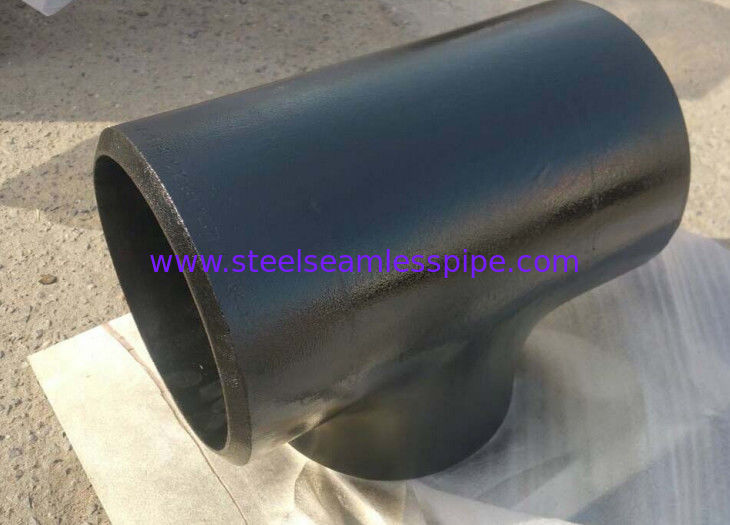

ASTMA234 Alloy Steel Gr WP11 Buttweld Fittings Equal Tee
We are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
What is A234 WP11 Material?
The fittings differ in sizes, shapes and standards. The variety of fittings made from the A234 Grade WP11 material include adapters, unions, couplings, tees, bends, elbows and others. The material grade is specific for mechanical properties but in some cases A234 WP11 Equivalent materials could be used as replacements when the requirements are not so specific. These have lower expansion rates under high temperature and can withstand high pressure. These properties can be used fully in Elbow A234 WP11 to make sure the elbow does not disorientate due to the expansion. The ASTM A234 Grade WP11 Elbow therefore could be fitted with other grades of material and yet maintain the integrity of the whole system.
The Alloy Steel Grade WP11 Fittings are durable and have high surface finish. The surface finish also provides high accuracy of dimensions along a wide range of fittings which is important in precision fittings for sensitive applications like the chemical and pharmaceutical industries. They also have steady flow and good turbulent flow. The chemical composition of the ASTM A234 WP11 Fittings makes it possible to have all the best mechanical properties. The composition includes carbon, manganese, phosphorus, silicon, sulfur, chromium and molybdenum.
ASTM A234 WP11 Pipe Fittings are made according to the ASTM A234 standard for the butt weld pipe fittings. The standard is international and there are different grades of materials in this standard that are being used to produce the pipe fittings. The WP11 is one of these standards which includes seamless pipes for high pressure and temperature applications. There are different manufacturing methods such as forging, hot rolling and cold drawing and heat treatments. The products also vary in type such as bends, elbows, reducers and connectors.
Characteristic
Specification
| Dim. Standards | ANSI/ASME B16.9, B16.28, MSS-SP-43 |
| Specification | ASTM A234 / ASME SA234 |
| Size | ½” NB – 48” NB |
| Schedule | SCH 10 - SCH XXS |
| Type | Seamless / ERW/ Welded / Fabricated |
| Certification | IBR & NON IBR |
ASTM A234 Gr WP11 Chemical Composition
| Grade | C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| WP11 | 0.05-0.15 | 0.30-0.60 | 0.30 max | 0.30 max | 0.50-1.00 | 1.00-1.50 | 0.044-0.65 |
ASTM A234 Gr WP11 Mechanical Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| 205 min | 415 min | 20 min | 121-174 |
Application:
