| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | ASTM A240 TP904L SS904L Stainless Steel Plate, Sheet and Coils |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| Standard: | ANSI,ASME | Size: | 15mm-6000mm,1/2"-120",DN 10 To DN 3000 MM |
|---|---|---|---|
| Product Name: | Welding Neck Flange,Pipe Flange,hydraulic Flange,Stainless Steel Flange,Cnc Part | Application: | Petroleum,chemical,etc,fittings And Connection,beer |
| Pressure: | Class150/300/600/9001500/2500,PN2.5/6/10/16/25/40,0-63mpa,150LB-2500LB,Class150-2500/ PN6-PN100 | Type: | Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange |
| Process: | Forged,Drilling/Bending/Stamping,Casting,sand Casting&CNC Machining,Forging+machining+heating Treatment | Surface Treatment: | Heat Treatment,Galvanized,Black Oxidation,customize,pickeling |
| Packing: | Wooden Case,Plywood\wooden Pallets | Color: | On Quest,Natural Color,Black |
| Technique: | Cold Rolled Hot Rolled | ||
| High Light: | SS904L stainless steel plate,ASTM A240 stainless steel plate,ASTM A240 stainless plate |
||
ASTM A240 TP904L SS904L Stainless Steel Plate, Sheet and Coils
We are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube/Fitting/Flange:
1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),
B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)
C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.
2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...
3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.
ASTM A240 TP904L Stainless Steel Plate Specification
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
ASTM A240 TP904L Stainless Steel Plate Chemical Composition
| Element | SS 904L |
| C | 0.020 max |
| Mn | 2 max |
| Si | 1 max |
| P | 0.040 max |
| S | 0.030 max |
| Cr | 19 – 23 |
| Ni | 23 – 28 |
| Mo | 4 – 5 |
| Cu | 1 – 2 |
ASTM A240 TP904L Stainless Steel Plate Mechanical Properties
| Element | SS 904L |
| Density | 7.95 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 71000 , MPa – 490 |
| Yield Strength (0.2%Offset) | Psi – 32000 , MPa – 220 |
| Elongation | 35% |
ASTM A240 TP904L Stainless Steel Plate Application Industries
ASTM A240 TP904L Stainless Steel Plate Test Certificates

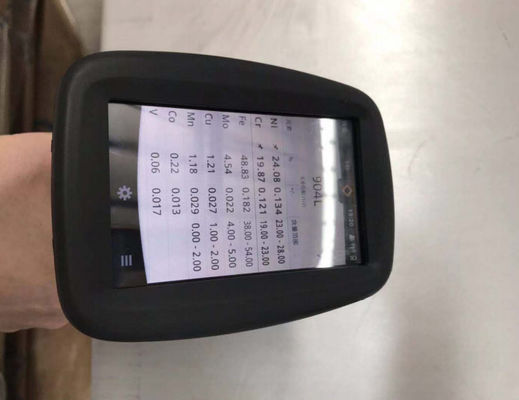

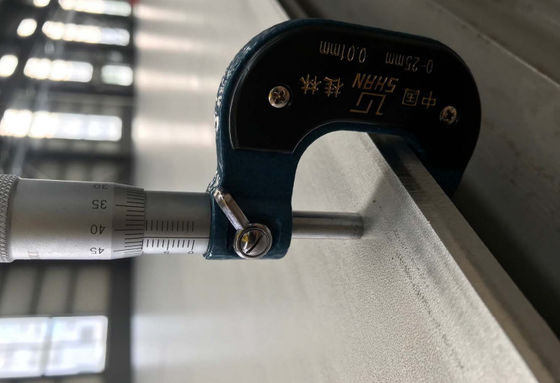

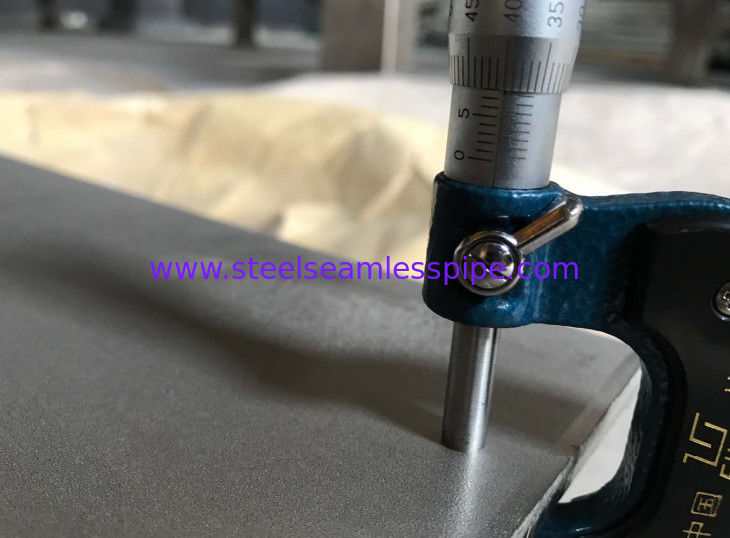

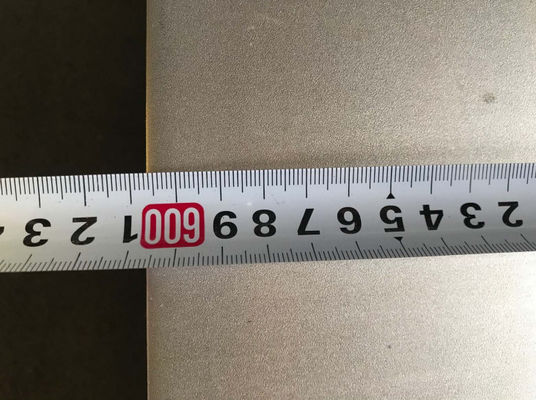

Material Testing:
