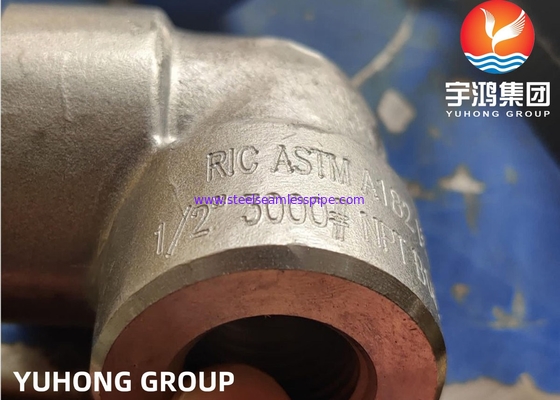

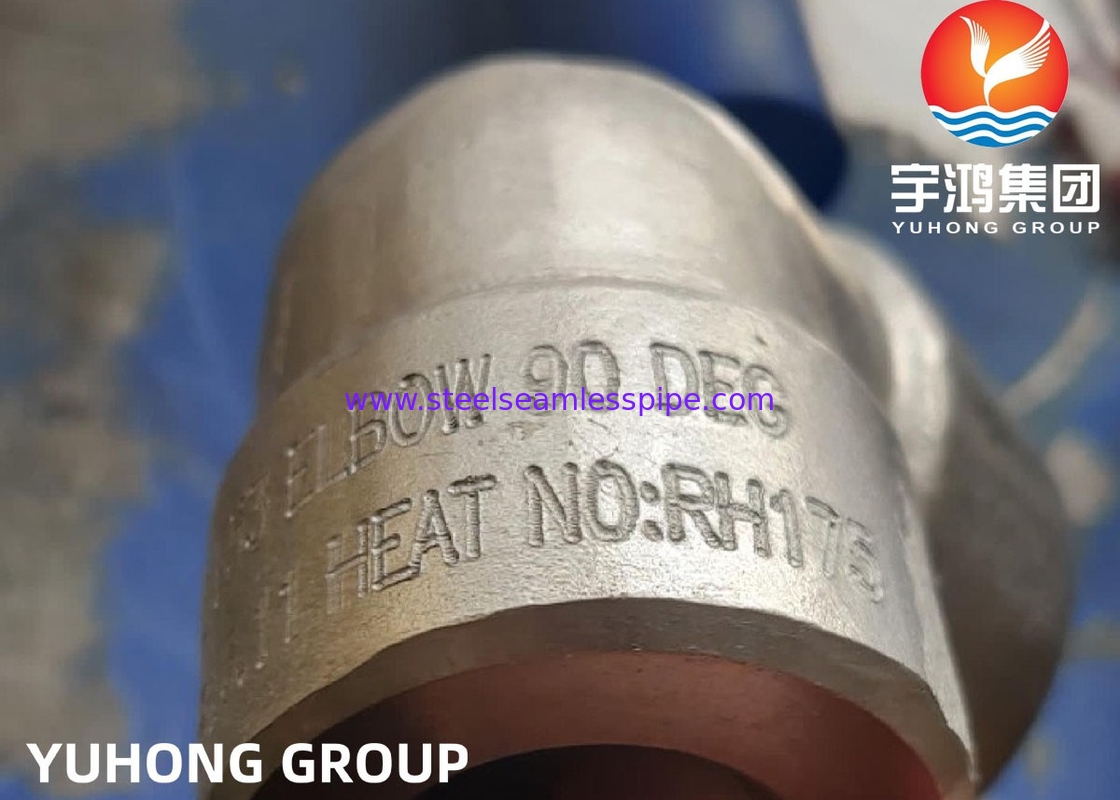

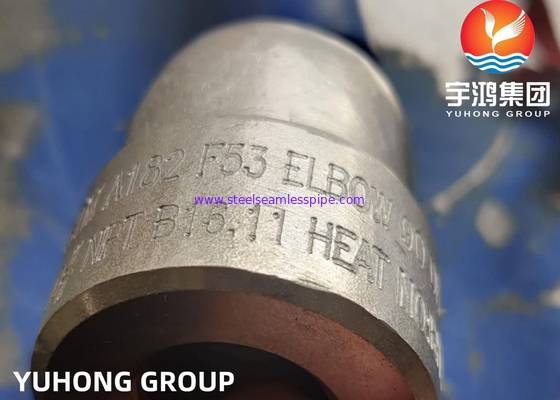

SUPER DUPLEX STEEL FORGED FITTINGS ASTM A182 F53 ELBOW 90DEG 1/2'' 3000# NPT B16.11

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASTM, JIS, DIN, EN

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD
Packaging Details:	PLY-WOODEN CASE PACKING/IRON CASE PACKING
Delivery Time:	7 DYAS
Supply Ability:	1500 TONS PER MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (346)

Stainless Steel Seamless Tube (343)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (171)

Fin Tube (745)

Heat Exchanger (35)

Heat Exchanger Tube (476)

Heat Exchanger Tube Bundle (54)

Heat Exchanger Tubesheet (129)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (108)

Copper Alloy Tube (258)

Alloy Steel Tube (220)

Titanium Tube (21)

Bright Annealed Tube (166)

Boiler Tube (161)

Steel Fitting (876)

Steel Flange (677)

Others (412)

Cladding Parts (9)

Detailed Product Description

OD:	1/8'' To 4''	Pressure:	1500# To 9000#
Material:	F51, F53, F55, F44	Thickness:	Sch10-xxs(2-60mm)
Nominal Pipe Size:	3/8 X 1/4 To 2 X 1/2	Fitting Type:	Class 3000, 6000, 9000
Highlight:	Astm A182 F53 Steel Forged Fittings , Super Duplex Steel Forged Fittings , Elbow 90deg Forged Steel Fittings

SUPER DUPLEX STEEL FORGED FITTINGS ASTM A182 F53 ELBOW 90DEG 1/2'' 3000# NPT B16.11
Square Socket Reducer Inserts , Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel .

Products Socket Reducer Inserts

Product Pictures and Drawings


Type1		Type2

Dimensional Data

Socket weld reducer Inserts availbale in class 3000, 6000 and 9000

			Class 3000				Class 6000				Class 9000
Nominal Pipe Size	C	D	Fitting Type	A	B	E	Fitting Type	A	B	E	Fitting Type	A	B	E
3/8 x 1/4	0.675	0.555	1	7/16	3/4	15/16	1	7/16	7/8	1
1/2 x 3/8	0.850	0.690	1	7/16	13/16	1 1/16	1	7/16	15/16	1 3/16
1/2 x 1/4	0.850	0.555	1	7/16	13/16	15/16	1	7/16	7/8	1
3/4 x 1/2	1.060	0.855	1	7/16	7/8	1 5/16	1	7/16	1 1/16	1 3/8	1	7/16	1 3/16	1 3/4
3/4 x 3/8	1.060	0.690	2	7/16	5/8	-	1	7/16	7/8	1 3/16
3/4 x 1/4	1.060	0.555	2	3/8	11/16	-	2	3/8	7/8	-
1 x 3/4	1.325	1.065	1	9/16	15/16	1 1/2	1	9/16	1 1/8	1 11/16	1	9/16	1 1/4	2
1 x 1/2	1.325	0.855	2	1/2	5/8	-	1	7/16	1 1/8	1 3/8	1	7/16	1 1/8	1 3/4
1 x 3/8	1.325	0.690	2	7/16	11/16	-	2	1/2	7/8	-
1 x 1/4	1.325	0.555	2	3/8	3/4	-	2	3/8	15/16	-
1 1/4 x 1	1.670	1.330	1	9/16	1	1 7/8	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/4 x 3/4	1.670	1.065	2	9/16	11/16	-	2	9/16	13/16	-	1	9/16	1 3/16	2
1 1/4 x 1/2	1.670	0.855	2	1/2	3/4	-	2	1/2	7/8	-	2	1/2	7/8	-
1 1/4 x 3/8	1.670	0.690	2	7/16	13/16	-	2	7/16	15/16	-
1 1/4 x 1/4	1.670	0.555	2	3/8	7/8	-	2	3/8	1	-
1 1/2 x 1 1/4	1.910	1.675	1	9/16	1 1/8	2 1/4	1	9/16	1 3/8	2 3/8	1	9/16	1 5/8	2 3/4
1 1/2 x 1	1.910	1.330	2	5/8	11/16	-	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/2 x 3/4	1.910	1.065	2	9/16	3/4	-	2	9/16	1	-	2	9/16	1	-
1 1/2 x 1/2	1.910	0.855	2	1/2	13/16	-	2	1/2	1 1/16	-	2	9/16	1	-
1 1/2 x 3/8	1.910	0.690	2	7/16	7/8	-	2	7/16	1 1/8	-
2 x 1 1/2	2.385	1.915	1	9/16	1 1/4	2 1/2	1	9/16	1 7/8	2 11/16	1	9/16	2 1/16	3
2 x 1 1/4	2.385	1.675	2	11/16	13/16	-	2	7/8	15/16	-	1	9/16	2	2 3/4
2 x 1	2.385	1.330	2	5/8	7/8	-	2	13/16	1	-	2	13/16	1	-
2 x 3/4	2.385	1.065	2	9/16	15/16	-	2	3/4	1 1/16	-	2	3/4	1 1/16	-
2 x 1/2	2.385	0.855	2	1/2	1	-	2	11/16	1 1/8	-	2	11/16	1 1/8	-
