| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | PED, TUV , AD2000, ABS, BV, DNV, LR, GL , KR, CCS, NK ,GOST |
| Model Number: | ASME SB163 MONEL400 SEAMLESS TUBE ( UNS NO4400, DIN 2.4360) |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 1---- |
| Packaging Details: | Ply Wooden Case |
| Delivery Time: | 1-----90days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 tons / month |
| Material Grade: | MONEL400,UNS NO4400, DIN 2.4360, ALLOY 400 | Standard: | ASTM B163, B165, B167, ASME SB163, SB165, SB167 |
|---|---|---|---|
| NDT: | ET, UT, HT, PT | Type: | Straight Tube , U Bend Tube , Coil Tube, Fin Tube |
| Size: | OD: 15.88mm , 19.05mm , 20mm, 25mm, 25.4mm 31.75mm, 38.1mm, 44.45mm, 50.8mm, 63.5mm, 76.2mm , Thickess :0.5MM TO 60MM | ||
| High Light: | ASME SB163 Heat Exchanger Tube,MONEL 400 Heat Exchanger Tube,ASME SB163 Copper Nickel Pipe |
||
ASME SB163 MONEL400 nickel-copper alloy seamless tube , heat exchanger application
Overview
Monel 400 is a nickel-copper alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions.
This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, MONEL 400 is rapidly attacked by nitric acid and ammonia systems. Monel 400 has great mechanical properties at subzero temperatures, can be used in temperatures up to 1000° F, and its melting point is 2370-2460° F. However, alloy 400 is low in strength in the annealed condition so, a variety of tempers may be used to increase the strength.
Specification
| Specifications | ASTM B163, B730 / ASME SB163, SB730 |
| Dimensions | ASTM, ASME and API |
| Size | 6.35 OD (mm) To 152 OD (mm) |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Tubes |
| Form | Round Tubes, Custom Tubes, Square Tubes, Rectangular Tubes, “U” Shape, Hydraulic Tubes |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
Equivalent Grades for Monel 400 Seamless Tubes:
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |

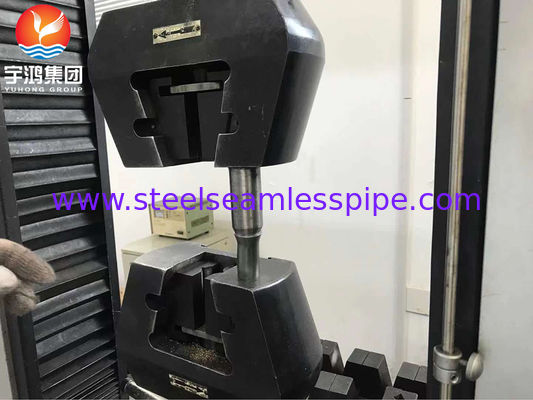

Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Physical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.8 gm/cm3 | 0.318 lb/in3 |
Pressure Rating
|
Tube O.D. |
Wall Thickness of Tube (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Applications
