ASTM A105/A105N SORF TYPE CARBON STEEL FORGED FLANGE ASME B16.5

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	API , ABS, DNV, GL , LR, NK
Model Number:	ASTM A105 / A105N

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	NEGOTIABLE
Packaging Details:	PLY-WOODEN CASE PACKING/IRON CASE PACKING
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C
Supply Ability:	ACCORDING TO CLIENT'S REQUIREMENT

Contact Now

All Products

Stainless Steel Seamless Pipe (242)

Stainless Steel Seamless Tube (237)

Finned Tube (453)

Heat Exchanger Tube (162)

Heat Exchanger Parts (169)

Stainless Steel Welded Pipe (50)

Stainless Steel Welded Tube (98)

Duplex Stainless Steel Pipe (135)

Alloy Steel Tube (129)

Bright Annealed Tube (152)

Copper Alloy Tube (169)

Nickel Alloy Pipe (309)

Needle Tube (26)

U Bend Tube (189)

Boiler Tube (110)

Steel Fitting (664)

Steel Flange (477)

Steel Valves (12)

Precision Steel Strip (29)

Alloy Wires (271)

Others (61)

Detailed Product Description

Product Name:	Carbon Steel Slip On Raised Face Flange	Standard:	ASTM A105 / A105N
Material Grade:	A105	Type:	SORF,SOFF,WNRF,WNFF,BLIND
Surface:	Black Coating	Pressure:	Class 150/300/600/900/1500/2500, PN 2.5/6/10/16/25/40, 0-63MPa, 150LB-2500LB
High Light:	NACE0175-03 Steel Flanges , ASTM A105 Steel Flanges , ASTM A105N BLIND Flange

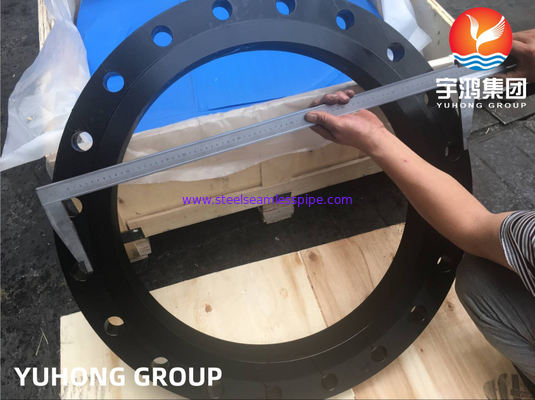

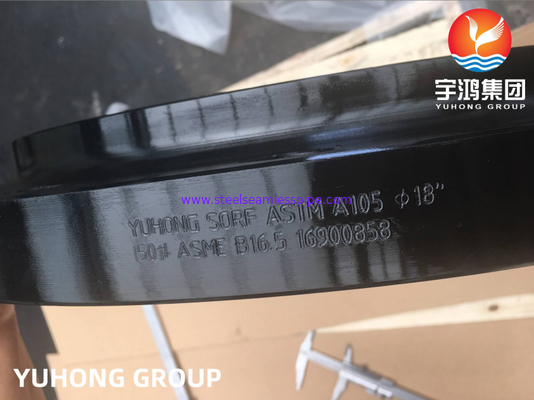

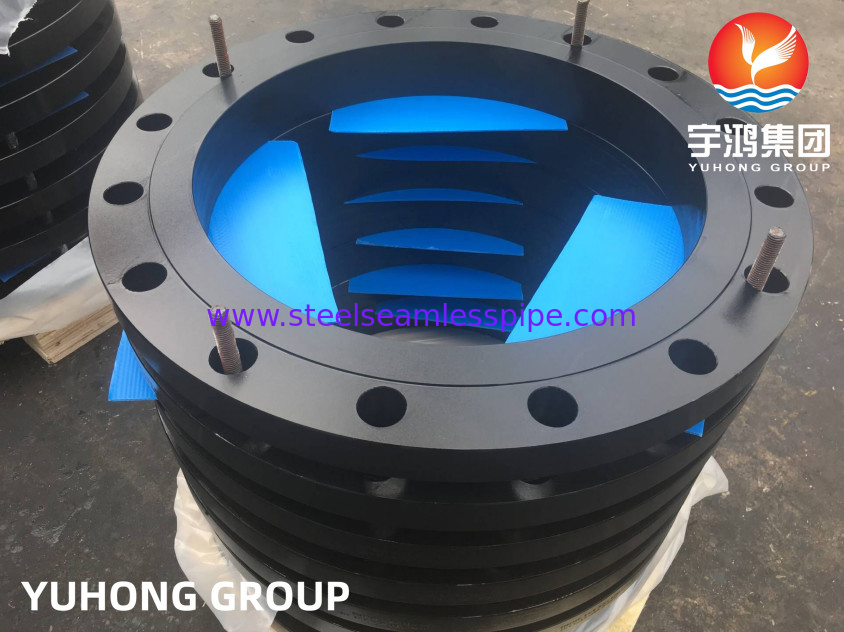

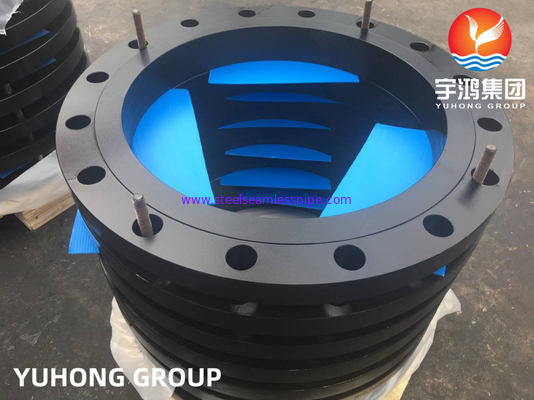

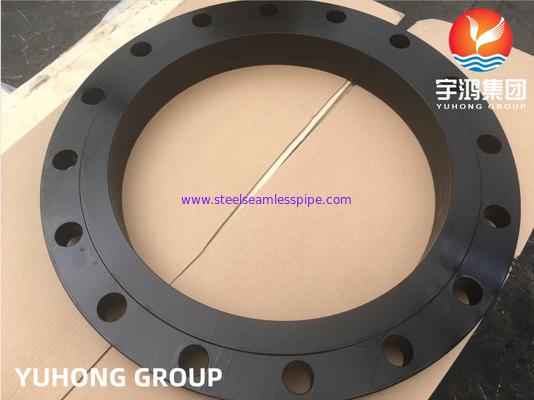

ASTM A105/A105N SORF TYPE CARBON STEEL FORGED FLANGE ASME B16.5

A105 SORF flange is manufactured by most of the steel industries. In sorf flange welding, the fitting or the pipe is set back from the flange. The inner diameter of SORF flange is bit larger than the outer diameter over the pipe. It is the commonly used carbon steel material grade that used to manufacture forge piping components.

ASTM A105 is the standard specification for carbon steel forging and is used in different piping applications. The ASTM A105 Carbon Steel Slip on Flanges is used in various fittings and valves with high-temperature services in a pressure system. Our ASME SA 105 Slip-On Flanges are known for their high quality, great performance and widely used in various industries. We are one of the top manufacturers of SA105 Carbon Steel SORF Flanges used to connect different parts that make up a piping system. We have a huge stock of ASME SA 105 SO Flange covering carbon steel piping components used in pressure systems where the temperature is very high.

ASTM A105 Slip On Flange Pressure Rating Class

ASTM A105 Carbon Steel Slip on Flanges	Pressure And Temperature Ratings
Temperature °F	Class 150 As Per ASME B16.5	Class 300 As Per ASME B16.5	Class 400 As Per ASME B16.5	Class 600 As Per ASME B16.5	Class 900 As Per ASME B16.5	Class 1500 As Per ASME B16.5	Class 2500 As Per ASME B16.5
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230

CS Slip On Flange Thickness Tolerance

Wall Thickness Of ASTM A105 Carbon Steel Slip on Flanges
Normal Pipe Size (NPS)	O.D. (Outside Daimeter)	Sch 10	Sch 20	Sch 30	STD Wall Outside Daimeter	Sch 40	Sch 60	EXT Hvy Outside Daimeter	Schedule 80	Schedule 100	Schedule 120	Schedule 140	Schedule 160	XX Hvy
½	0.84	0.083	...	...	0.109	0.109	...	0.147	0.147	...	...	...	0.188	0.294
¾	1.05	0.083	...	...	0.113	0.113	...	0.154	0.154	...	...	...	0.219	0.308
1	1.315	0.109	...	...	0.133	0.133	...	0.179	0.179	...	...	...	0.25	0.358
1 ¼	1.66	0.109	...	...	0.14	0.14	...	0.191	0.191	...	...	...	0.25	0.382
1 ½	1.9	0.109	...	...	0.145	0.145	...	0.2	0.2	...	...	...	0.281	0.4
2	2.375	0.109	...	...	0.154	0.154	...	0.218	0.218	...	...	...	0.344	0.436
2 ½	2.875	0.12	...	...	0.203	0.203	...	0.276	0.276	...	...	...	0.375	0.552
3	3.5	0.12	...	...	0.216	0.216	...	0.3	0.3	...	...	...	0.438	0.6
3 ½	4	0.12	...	...	0.226	0.226	...	0.318	0.318	...	...	...	...	0.636
4	4.5	0.12	...	...	0.237	0.237	...	0.337	0.337	...	0.438	...	0.531	0.674
5	5.563	0.134	...	...	0.258	0.258	...	0.375	0.375	...	0.5	...	0.625	0.75
6	6.625	0.134	...	...	0.28	0.28	...	0.432	0.432	...	0.562	...	0.719	0.864
8	8.625	0.148	0.25	0.277	0.322	0.322	0.406	0.5	0.5	0.594	0.719	0.812	0.906	0.875
10	10.75	0.165	0.25	0.307	0.365	0.365	0.5	0.5	0.594	0.719	0.844	1	1.125	1
12	12.75	0.18	0.25	0.33	0.375	0.406	0.562	0.5	0.688	0.844	1	1.125	1.312	1
14	14	0.25	0.312	0.375	0.375	0.438	0.594	0.5	0.75	0.938	1.094	1.25	1.406	...
16	16	0.25	0.312	0.375	0.375	0.5	0.656	0.5	0.844	1.031	1.219	1.438	1.594	...
18	18	0.25	0.312	0.438	0.375	0.562	0.75	0.5	0.938	1.156	1.375	1.562	1.781	...
20	20	0.25	0.375	0.5	0.375	0.594	0.812	0.5	1.031	1.281	1.5	1.75	1.969	...
22	22	0.25	...	...	0.375	...	...	0.5	...	...	....	....	....	....
24	24	0.25	0.375	0.562	0.375	0.688	0.969	0.5	1.219	1.531	1.812	2.062	2.344	....
26	26	....	....	....	0.375	....	....	0.5	....	....	....	....	....	....
30	30	0.312	0.5	0.625	0.375	....	....	0.5	....	....	....	....	....	....
36	36	0.312	0.5	0.625	0.375	0.75	....	0.5	....	....	....	....	....	....
40	40	....	....	....	0.375	....	....	0.5	....	....	....	....	....	....
42	42	……..	……..	……..	0.375	……..	……..	0.5	……..	……..	……..	……..	……..	……..
48	48	……..	……..	……..	0.375	……..	……..	0.5	……..
