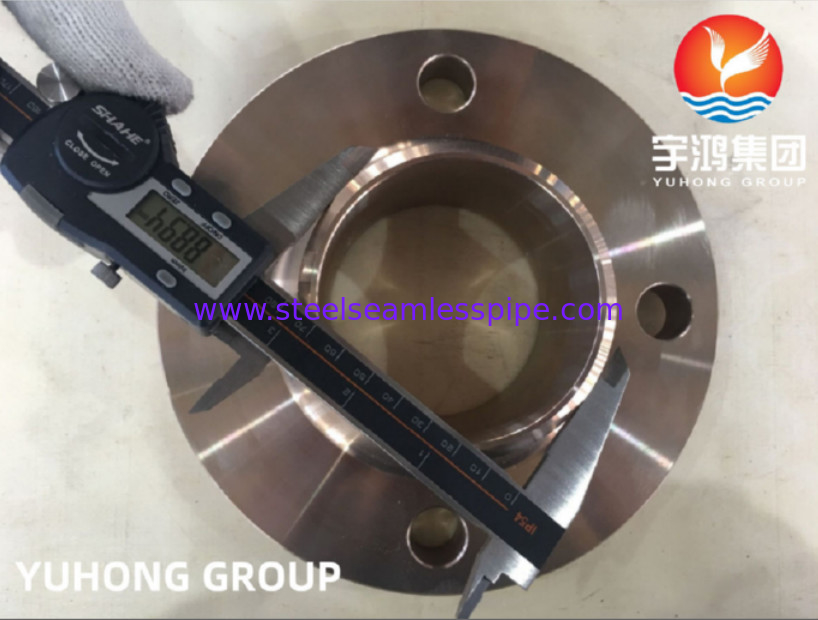

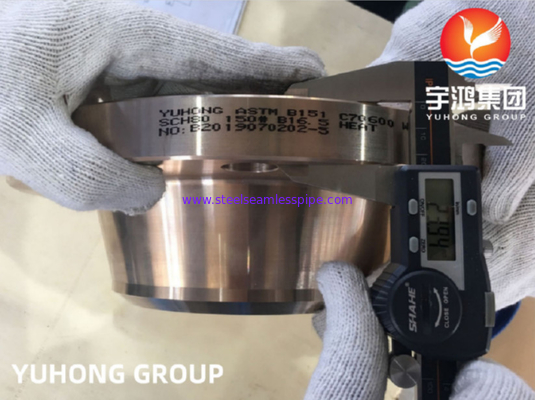

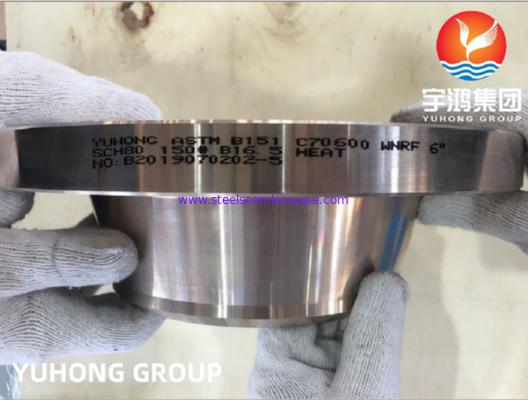

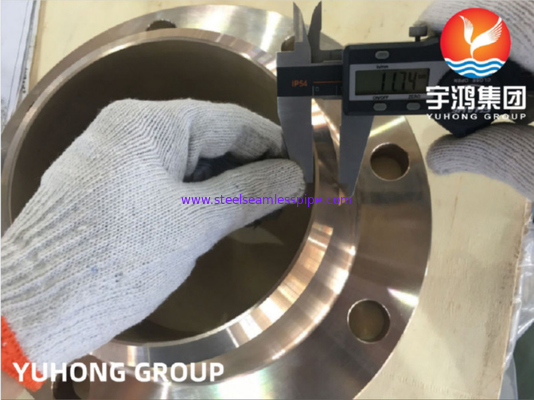

ASTM B151 C70600 WNRF Cooper Alloy Steel Forged Flanges ASME B16.5

ASTM B151 C70600 WNRF 6'' SCH80 150# B16.5 Flange Copper Alloy Steel Flanges

Copper Nickel Forged Flanges , ASTM B151 / ASME SB151 / ASTM B152 / ASME SB152 Grade C71500 Cu-Ni 70/30

Copper Nickel Pipe Flanges are used a lot in seawater piping systems, crankshafts, tubes for light-duty condensers, sea water pipe-work desalination units and in offshore platforms.
Cupro Nickel Flanges has an Elastic Modulus (C71500 annealed) of 22000 ksi (152 GPa). The Yield Strength (annealed) of Cu-Ni WNRF Flanges is 15000 psi (103 MPa). ASME SA151 Copper Nickel Threaded Flange has a Density of 0.323 lb/in³ (8.94 g/cm3). Poisson’s Ratio of Copper Nickel Screwed Flanges (C71500 annealed) is 0.325. These Copper Nickel Blind Flange pressure rating is very important as it determines what kind of Cu-Ni Industrial Flanges can be used, for which purpose, in which industry. Copper Nickel Grade Forged Flanges is solderable, it shows scaling resistance and very good corrosion. ANSI B16.5 Cuni Ring Type Joint Flanges exhibits superb resistance to corrosion (seawater especially), cavitation and erosion. Good weldability is displayed by Cu-Ni RTJ Flange. ASTM A151 Cu-Ni Threaded Flanges are durable and best of all, they are inexpensive. They are used in process equipment, hydraulic lines, automobile parts, underwater fencing, marine hardware components, feed water heaters, pump components, heating cables and in air conditioning plants.
