Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YuHong |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | B122 / B466 /ASME SB122, SB466 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Standard: | ASTM B122 / B466 /ASME SB122 | Grade: | Cu-Ni 90/10 C70600 , 2.0872 |
|---|---|---|---|
| Size: | 1/4" TO 24" SCH10S TO SCH XXS | Products: | Cap, Elbow , Cross, Reducer, Bend Tube |
| High Light: | C70600 ECC Reducer,ASTM B466 ECC Reducer,SCH80 Steel Pipe Fittings |
||

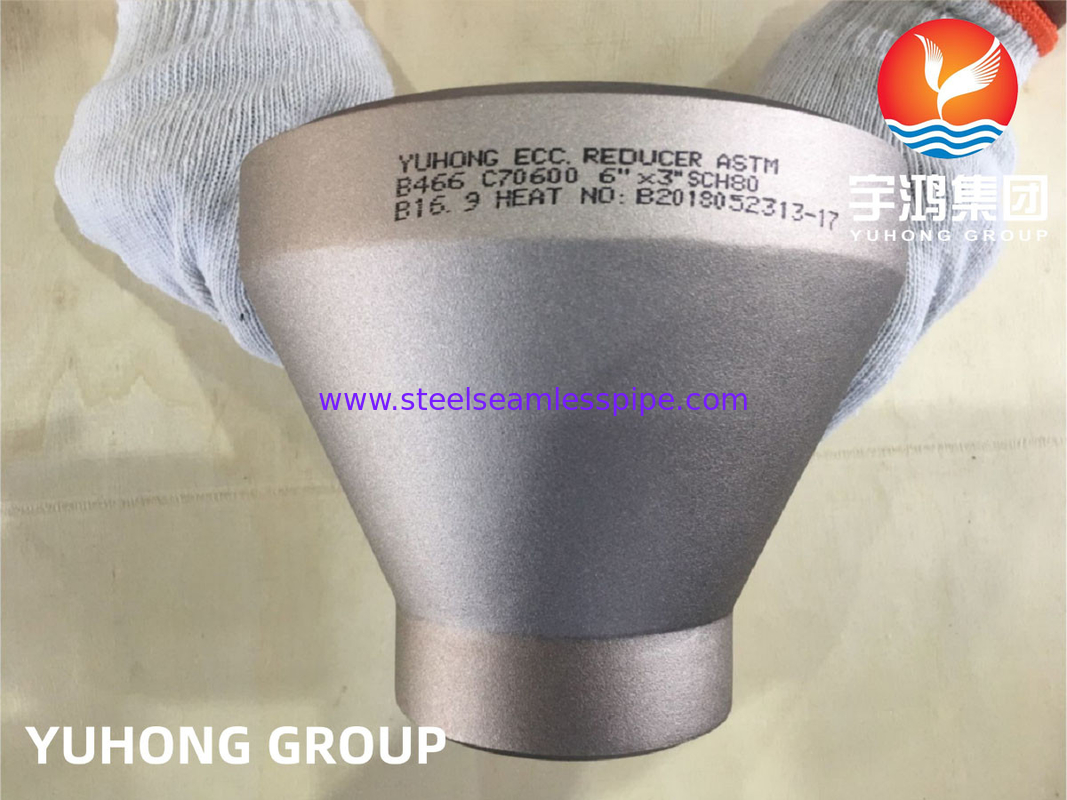

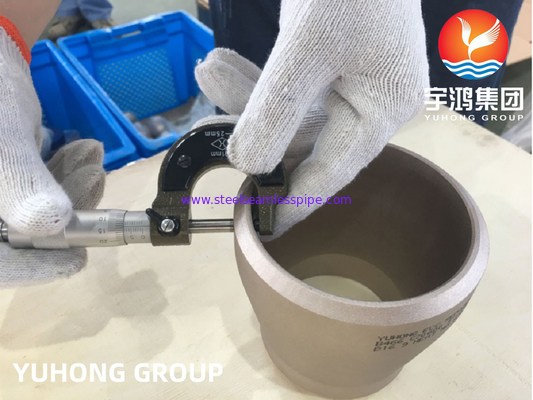

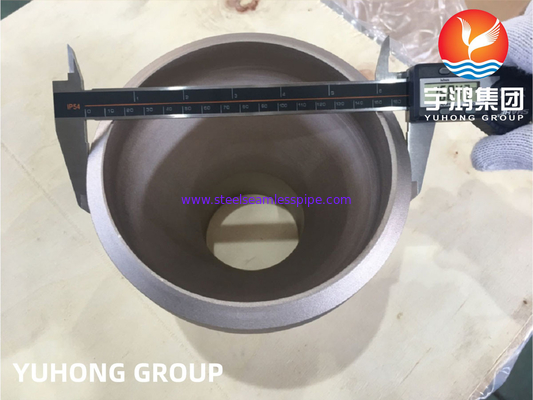

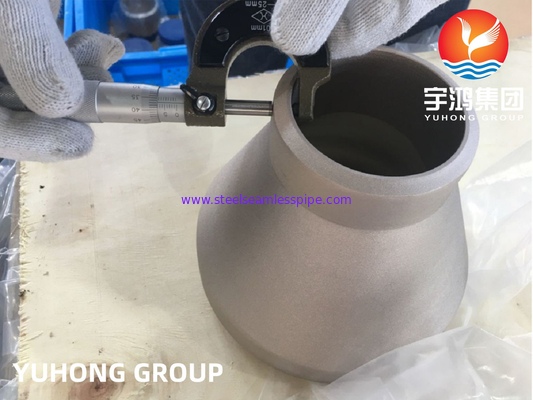

ASTM B466 C70600 ECC REDUCER SCH80 B16.9 STEEL PIPE FITTING 6*3 INCH
| Copper Nickel 90/10 fittings specifications | |
| Raw Material: Copper Nickel CuNi 90/10, Copper Nickel CuNi10Fe1,6Mn | |
| Good Dimensions, Surfaces, Tolerance | |
| Main Standard: DIN, EEMUA, ASME, JIS | |
| BV Approved ASTM B366 Cupro Nickel 90/10 Fittings Manufacturer | |
| MTC EN10204 3.1 issued | |
| Copper Nickel WERKSTOFF NR. 2.0872 Butt Welding Fittings Standard: DIN 86090 | |
| Marine Fittings | BUTTWELD – CLASS 200 |
| IAW NAVSEA DWG 810-1385880 | |
| CUNI 90/10 | |
| Specifications | ASTM B122 / B466 ASME SB122, SB466 |
| Size | 1/2" to 24" NB to 24"NB in |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-119, NAVSEA 802-5959353 App.B, BS4504 , BS4504, BS1560, BS10 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Similar Piping Fittings | CuNi 90/10 Compression Fittings |
| CuNi 90/10 Belled End Fittings | |
| Cupro Nickel 90/10 Forged Fittings | |
| Copper Nickel 90/10 Forging | |
| Copper Nickel 90/10 Press Fittings | |
| Copper Nickel 90/10 Elbow | |
| Type | Seamless / Welded / Fabricated |
| Specialized in manufacturing | Cupro Nickel 90/10 Butt Welding Fittings |
| Cu-Ni 90/10 Outlets | |
| Weld base ground for full penetration weld per MIL-STD-22D (P68 joint) | |
| MSS SP-97. | |
| Pilot and Non-Pilot Bosses | |
| NAVSEA 810-1385912 | |
| 45° Lateral Outlet | |
| Elbow Outlet | |
| Sanitary Hose Barb Outlets | |
| 90/10 Cu-Ni Stub Ends & Bosses | |
| Straight Thermowell Tees | |
| Copper Nickel 90/10 Bellmouth Fittings | |
| Concentric Street Reducers | |
| 90/10 Cu-Ni Collar | |
| Long Turn Tees, Single /Double Sweep -NAVSEA 810-1385880, Revision D | |
| EUROPEAN AND AMERICAN STANDARDS CUPRO NICKEL 90/10 PIPE FITTINGS | |||
| BUTT WELD FITTINGS 90/10 | EEMUA | DIN | ANSI |
| ELBOWS LONG RADIUS | 146 SECTION 1 | DIN 86090 | B 16.9 |
| ELBOWS SHORT RADIUS | B 16.28 | ||
| EQUAL TEES | 146 SECTION 1 | DIN 86088 | B 16.9 |
| REDUCING TEES | 146 SECTION 1 | DIN 86088 | B 16.9 |
| CONCENTRIC REDUCERS | 146 SECTION 1 | DIN 86089 | B 16.9 |
| ECCENTRIC REDUCERS | 146 SECTION 1 | DIN 86089 | B 16.9 |
| EQUAL SADDLES | 146 SECTION 1 | DIN 86087 | |
| REDUCING SADDLES | 146 SECTION 1 | DIN 86087 | |
| END CAPS | 146 SECTION 1 | DIN 28011 | B 16.9 |
| EUROPE | DIMENSIONAL STANDARD AND SPECIFICATIONS | DIN28011 / DIN86087 / DIN86088 / DIN86089 / DIN86090 |
| EEMUA 146 | ||
| STF 330430 / C113 | ||
| MATERIAL STANDARD | 2.0872 / 2.1972 | |
| UNS7060X | ||
| CW352H | ||
| CN102 | ||
| U.S.A | DIMENSIONAL STANDARD AND SPECIFICATIONS | ANSI B16.9 |
| MATERIAL GRADE | UNS C70600 / C70610 / C70620 | |
| DELIVERY CONDITION | O / O60 |
| Manufacturing all types of Copper Nickel 90/10 Butt Welding Fittings as follow | |
| NAVSEA 810-1385880 Rev D | |
| Elbows | Long Turn, Double Sweep |
| Long Radius 90° | Reducers |
| Long Radius 45° | Concentric |
| Short Radius 90° | Eccentric |
| Long Radius Reducing 90° | Sleeves, Class 200 and 50 |
| 180° Long Radius Return Bends | 45° Laterals |
| Tees | Caps |
| Straight | ASME Flanged and Dished Heads |
| Reducing | Lap-Joint Stub Ends |
| Long Turn, Single Sweep | Collar |
