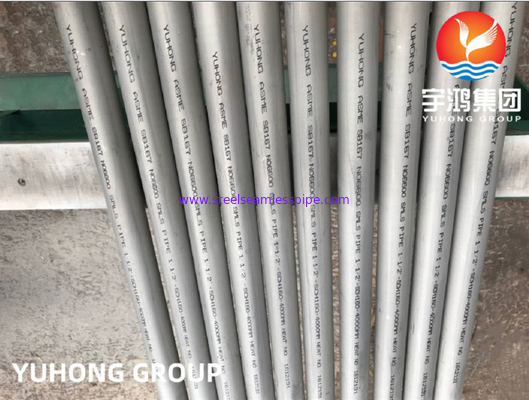

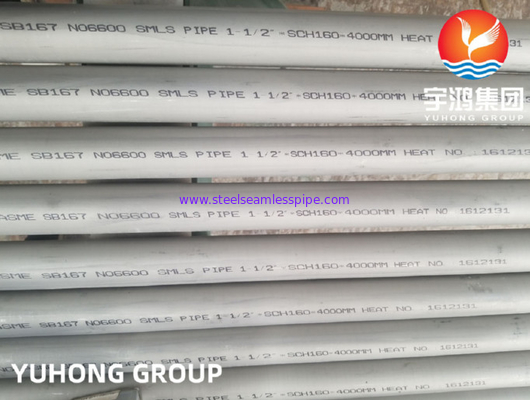

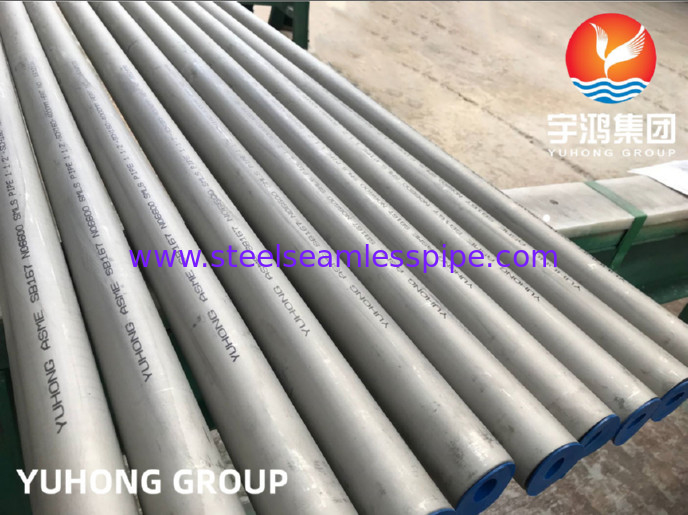

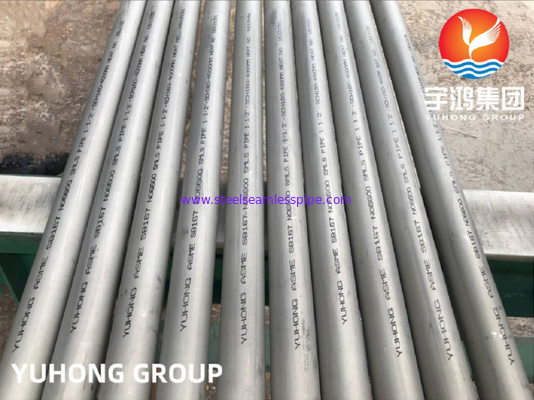

ASME SB167 UNS N06600 DIN2.8416 Inconel 600 Nickel Alloy Pipe

ASME SB167 UNS N06600 DIN2.8416 Inconel 600 Nickel Alloy Pipe

ASME SB167 UNS N06600 DIN2.8416 Inconel 600 Nickel Alloy Pipe
video
ASME SB167 UNS N06600 DIN2.8416 Inconel 600 Nickel Alloy Pipe
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: UNS N06600,Alloy600
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 25-45 Days
Payment Terms: L/C, T/T
Supply Ability: 1500 tons
Contact Now
Detailed Product Description
Standard:: ASME SB163/SB167/SB516 Material:: UNS N06600, Alloy600
Application:: Heat Exchanger,Boiler Technique: Cold Drawn,Cold Finished/Hot Finished
NDT: ET, UT, HT, PT
High Light:

Inconel 600 Nickel Alloy Pipe

,

UNS NO6600 Nickel Alloy Pipe

,

DIN2.8416 Inconel 600 Pipe

Nickel Alloy Seamless Pipe /Tube , ASME SB167 Inconel 600 / Alloy 600 / UNS NO6600, 2" SCH160 6M 100% ET / UT /HT





YUHONG GROUP is one of the Nickel Alloy Pipes / Tube / Fitting / Flange supplier in China , our group Inconel alloy 600, alloy 601,alloy 625, alloy 690, alloy 718 , alloy 750 export more than 40 countries now , and won a good reputation from the market .

YUHONG Alloy600 Benefits

Using nickel alloy pipe brings three primary advantages:

Resistance to Heat

Some nickel pipe alloys can endure very high temperatures, making them advantageous in machinery or other environments where intense heat is present.

YUHONG Alloy600 Resistance to corrosion

Oxidation reactions cause corrosion. Nickel alloys have a slower rate of oxidation than most metals, meaning they can resist corrosion for longer.

YUHONG Alloy600 Low Rate Of Expansion

Many nickel alloys pipes have either a low rate of thermal expansion or a rate of thermal expansion that can be predicted very accurately. This makes them desirable in high-temperature environments where you need a uniform shape.

YUHONG Alloy600 Manufacturing

Nickel alloy pipes are made with a complex manufacturing process that begins with the purest materials. Contaminated materials would lead to pipes without the beneficial properties mentioned above. The stages of the manufacturing process include:

  • melting
  • hot rolling
  • acid pickling
  • annealing
  • wire drawing
  • cold rolling/slitting

Throughout the process, quality control is maintained through a wide range of statistical tests.

Grades

There are a number of different grades of nickel alloy pipes. Some of the most popular include:

Nickel 625 Tubing

This grade is comprised of 20 to 30 percent chromium, which is a greater amount than many other nickel alloys. It’s often found in engine exhaust systems.

Nickel 600 Pipe

Nickel 600 offers a handful of unique benefits: it can be joined with many different methods, it’s very workable, and it performs well in very high and low temperatures.

Nickel 601 Pipe

Often used in high temperature environments, Nickel alloy pipe 601 has a high creep rupture strength and good mechanical strength.

Nickel 400 Tubing

Comprised of around 23% copper, Nickel 400 tubing is often used in oil towers, crude petroleum stills, de-aerating heaters, marine projects, heat exchangers, freshwater tanks and gas tanks. Furthermore, it also performs very well in alkaline salt and salt water.

YUHONG Alloy600 Applications:

The beneficial properties of nickel alloys make them useful in a wide variety of applications. These include:

  • Turbine Blades, seals and combustors
  • Electric submersible well pump motor shafts
  • High temperature fasteners
  • Heat exchanger tubing
  • Steam generators in nuclear pressurized water reactors
  • Sound suppressors
  • Race car exhaust systems
  • Incinerator boilers
  • Rocket planes
  • Nuclear power systems

Chemical Composition:

Element Nickel + Cobalt Carbon Silicon Iron Copper Manganese Chromium
Avg. Nominal % 72.0 Min 0.15 Max 0.50 Max 6.0 - 10.0 1.0 Max 1.0 Max 14.0 - 17.0



Nickel Alloy Pipe Exchanger Tubes ASME SB163/ SB167 UNS NO6600 NO6601



ASME SB167 UNS N06600 DIN2.8416 Inconel 600 Nickel Alloy Pipe 0
