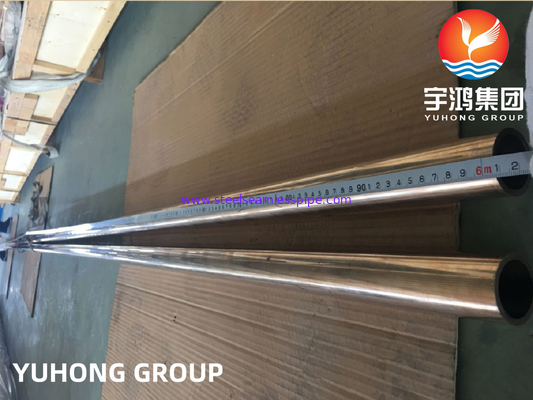

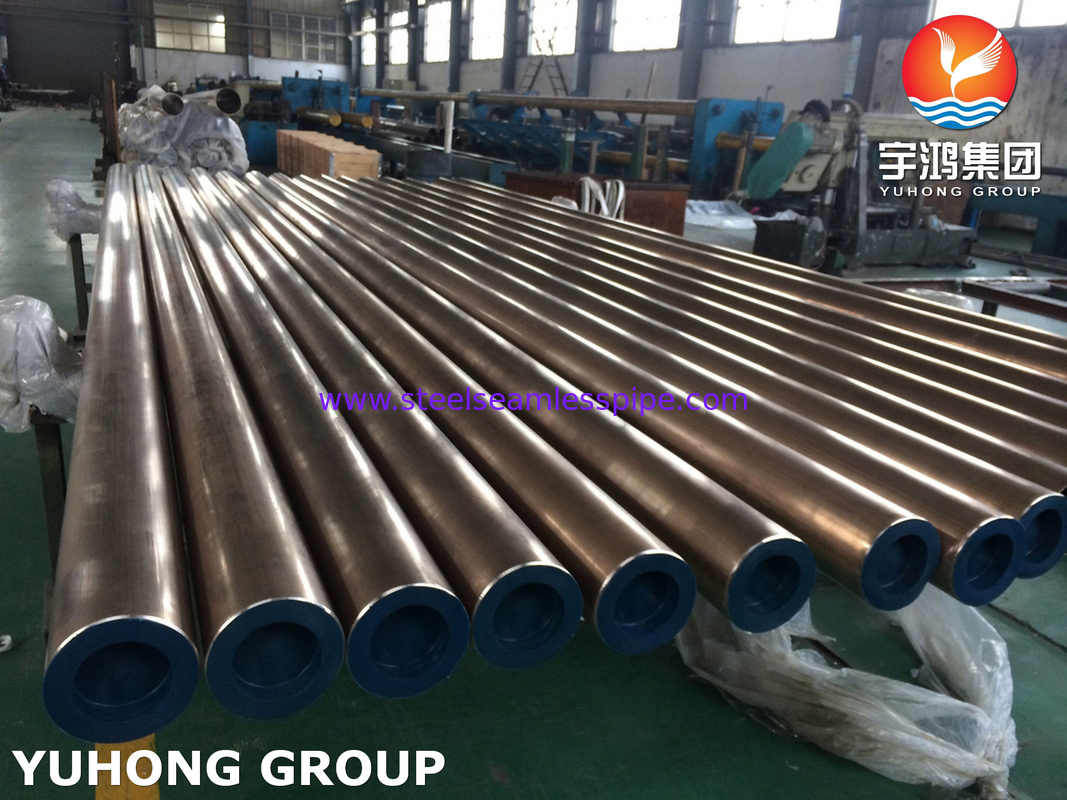

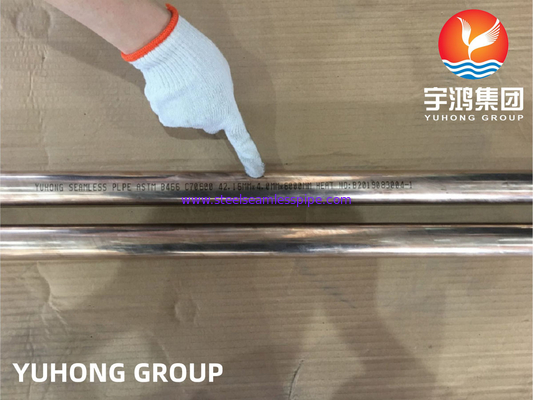

Seamless Copper Alloy Tube DIN 86019 B466 CuNi10Fe1.6Mn C70600

Seamless Copper Alloy Tube DIN 86019 B466 CuNi10Fe1.6Mn C70600

  • Seamless Copper Alloy Tube DIN 86019 B466 CuNi10Fe1.6Mn C70600
  • Seamless Copper Alloy Tube DIN 86019 B466 CuNi10Fe1.6Mn C70600
  • Seamless Copper Alloy Tube DIN 86019 B466 CuNi10Fe1.6Mn C70600
Seamless Copper Alloy Tube DIN 86019 B466 CuNi10Fe1.6Mn C70600
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: C12200 , C44300, C68700, C70600,CuNi10Fe1.6Mn
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Packaging Details: PLYWOOD CASE,BUNDLE,PALLET
Delivery Time: 7DAYS
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
STANDARD: DIN 86019 WL2.1972,ASTM B466 MATERIAL: CuNi10Fe1.6Mn C70600
TYPE: SEAMLESS,WELDED TEST: ET, HT, Flattening Test,Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination,Tension Testing.
High Light:

CuNi10Fe1.6Mn Copper Alloy Tube

,

DIN 86019 Copper Alloy Tube

,

Seamless C70600 Copper Alloy Pipe

Seamless Copper Alloy Tube DIN 86019 B466 CuNi10Fe1.6Mn C70600

Equivalencies Copper Nickel (90/10) tube/pipe:

KS D5301,JIS H3300

C7060T
ASTM B111 C70600
ASTM B466 C70600
BS2871 {PART2} CN102
AS1752 C70600
DIN17664 CuNi10Fe 1Mn
DIN 86019 WL2.1972 CuNi10Fe 1.6Mn
EEMUA 144 7060X
MIL-T-16420K 706
EN12449 CW352H

Typical Uses for C706 Copper Nickel "90/10":

AUTOMOTIVE: Power Steering Tube, Brake Lines

CONSUMER: Screw Lamp Bases

INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators

MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses

PLUMBING: Flanges

Sizes Available From Aviva Metals

SOLID BAR: 1/4" - 12" diameter

PLATE: up to 6" thick

C70600 Copper Nickel Specifications

End Product Specification
Bar ASTM B151, B122, MILITARY MIL-C-15726
Pipe, Seamless ASME SB466, ASTM B466
Pipe, Welded ASME SB467, ASTM B608, B467
Plate ASTM B122, MILITARY MIL-C-15726
Plate, Clad ASTM B432
Plate, Condenser Tube ASME SB171, ASTM B171, SAE J463, J461
Rod ASTM B151, MILITARY MIL-C-15726
Rod, Welding AWS A5.15
Sheet ASTM B122, MILITARY MIL-C-15726, SAE J463, J461
Strip ASTM B122, MILITARY MIL-C-15726
Tube, Condenser ASME SB111, ASTM B552, B111, MILITARY MIL-T-15005, SAE J463, J461



Seamless Copper Alloy Tube DIN 86019 B466 CuNi10Fe1.6Mn C70600 0
