Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YuHong |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 F321 Stainless Steel Flange WNRF |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |

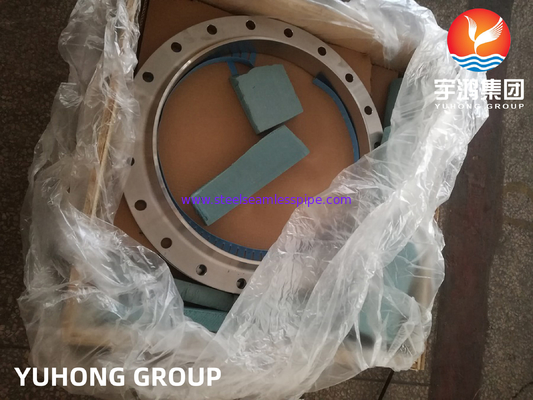

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Material Grade: | F321 | Certificate: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
|---|---|---|---|
| Pressure Grade: | Class 150 ,Class 300, Class 600, Class 900A ,Class 1500,Class 2500 | Standard: | ASME SA182, ASTM A182 , EN10028-2 |

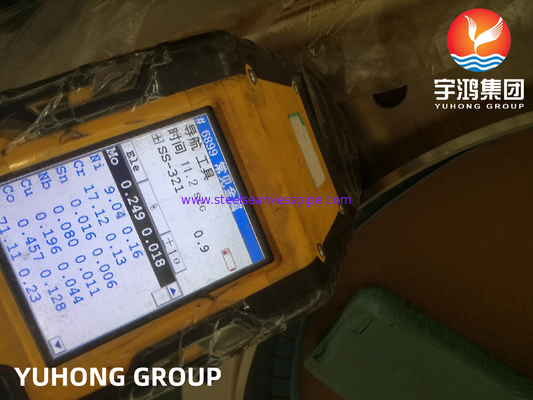

| Face: | Flat Face(FF),Raised Face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring Type Joints Face(RJ/RTJ) | NDT: | PT, UT, PMI |
| High Light: | F321 Stainless Steel Flat Flange,Flat Flange WNBF,ASTM A182 Stainless Steel Flange WNBF |
||

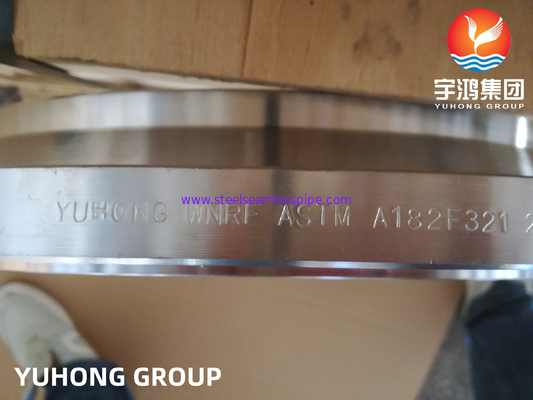

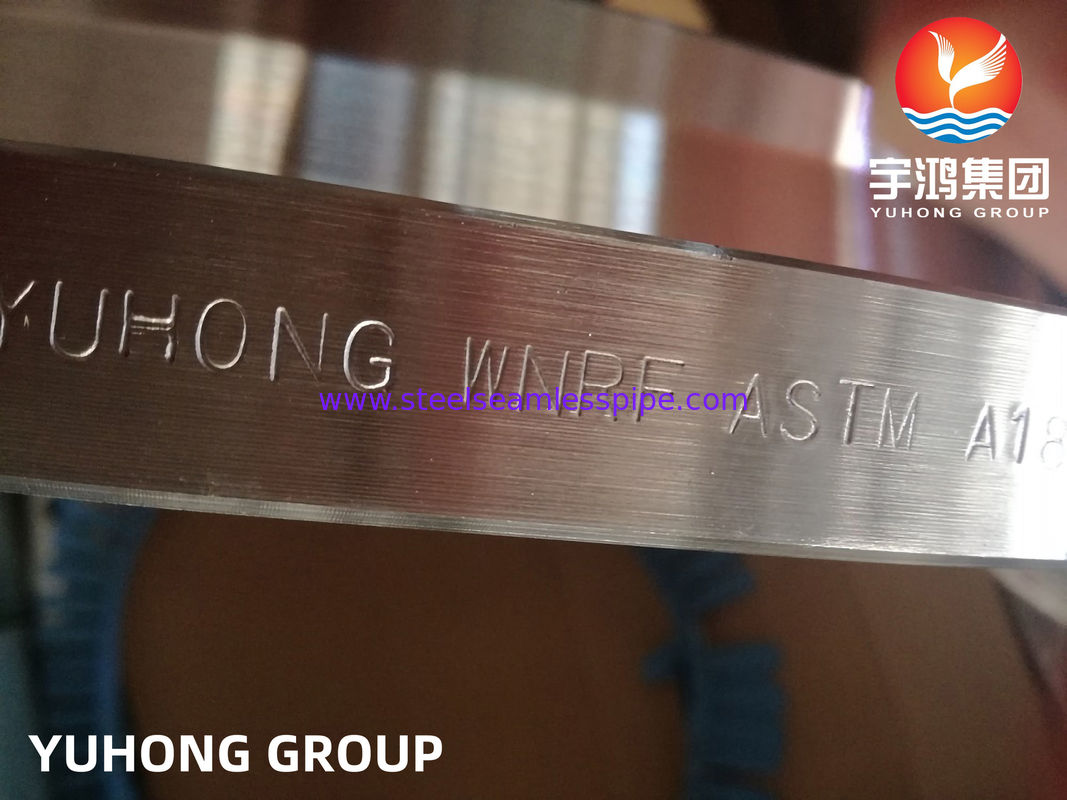

ASTM A182 F321 Stainless Steel Flange WNRF
SPECIFICATION:
A tubesheet is usually made from a round flat piece of plate, sheet with holes drilled to accept the tubes or pipes in a accurate location and pattern relative to one another.The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements. Tubes are attached to the tube sheet by hydraulic pressure or by roller expansion.
Size:1/2″-160″,DN15-DN4000mm.
Standard: ANSI/ASME B16.5, ANSI/ASME B16.47, BS4504, BS3293, EN 1092, DIN2631,DIN2632,DIN2633, DIN 2634, DIN2635, DIN2636, DIN2637, DIN2638, JIS B2220, SABS / SANS 1123 , GOST / ГОСТ 12821-80 Flange, MSS SP-44 FLANGE, API 6A, 6B, 6BX weld neck FLANGE, ISO 7005 Weld neck flange. NFE 29203 Weld neck flange, KS B1503 , UNI 2280-67 ,UNI 2281-67 ,UNI 2282-67 ,UNI 2283-67 , UNI 2284-67, HG20595, AS2129.
FaceAmerica Series: Flat face(FF),Raised face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring type joints face(RJ/RTJ)
Europe Series: Type A(Flat Face),Type B(Raised Face),Type C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove)
PressureAmerica Series: Class 150 ,Class 300, Class 600, Class 900A ,Class 1500,Class 2500.
Europe Series:PN2.5,PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN320,PN400.
|
Material: Carbon steel: ASTM A105, A181, ASTM A516 GR.60, GR.70, ASTM A694 F42, F46, F52, F56, F60, F65, F70, ST37, ST45.8, C22.8, S235, S235JRG2, P235GH, P245GH, P250GH, P265GH, P355GH, S355J2, 16MN, 20MN, Q235, 20#, CT20, SS400. Stainless steel: ASTM A182 F304, F304L, F316, F316L, F321, F321H, F304H, F316H, F347H, 1.4301, 1.4306, 1.4401, 1.4404, 1.4541, 1.4571, SUS304, SUS316. Alloy Steel: ASTM A350 LF2, CL1/CL2, ASTM A182 F5, F9, F11, F12, F22, F91. |
|
Duplex Steel: S31803 / F51 / S32205 / F60 / 1.4462 Super Duplex: S32750 / F53 / 1.4410 / S32760 / F55 / 1.4501 |
