| Place of Origin: | CHINA |
| Brand Name: | YuHong |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B466 C70600 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Size: | 1/4" TO 24" SCH10S TO SCH XXS | Grade: | ASTM B122 / B466 /ASME SB122 |
|---|---|---|---|
| Standard: | Cu-Ni 90/10 C70600 , 2.0872 | Products: | Cap, Elbow , Cross, Reducer, Bend Tube |
| High Light: | CuNi 90/10 Butt Weld Fittings,C70600 Butt Weld Fittings,ASTM B466 Copper Alloy Fittings |
||

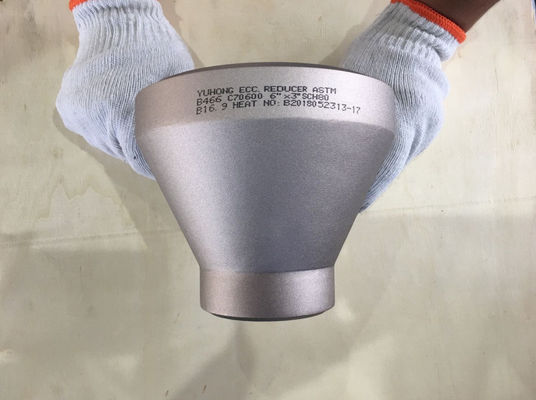

ASTM B466 C70600 CuNi 90/10 Butt Weld Fittings Copper Alloy Fitting
|
Copper Nickel 90/10 fittings specifications |
|
| Raw Material: Copper Nickel CuNi 90/10, Copper Nickel CuNi10Fe1,6Mn | |
| Good Dimensions, Surfaces, Tolerance | |
| Main Standard: DIN, EEMUA, ASME, JIS | |
| BV Approved ASTM B366 Cupro Nickel 90/10 Fittings Manufacturer | |
| MTC EN10204 3.1 issued | |
| Copper Nickel WERKSTOFF NR. 2.0872 Butt Welding Fittings Standard: DIN 86090 | |
| Marine Fittings | BUTTWELD – CLASS 200 |
| IAW NAVSEA DWG 810-1385880 | |
| CUNI 90/10 | |
| Specifications | ASTM B122 / B466 ASME SB122, SB466 |
| Size | 1/2" to 24" NB to 24"NB in |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-119, NAVSEA 802-5959353 App.B, BS4504 , BS4504, BS1560, BS10 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Similar Piping Fittings | CuNi 90/10 Compression Fittings |
| CuNi 90/10 Belled End Fittings | |
| Cupro Nickel 90/10 Forged Fittings | |
| Copper Nickel 90/10 Forging | |
| Copper Nickel 90/10 Press Fittings | |
| Copper Nickel 90/10 Elbow | |
| Type | Seamless / Welded / Fabricated |
| Specialized in manufacturing | Cupro Nickel 90/10 Butt Welding Fittings |
| Cu-Ni 90/10 Outlets | |
| Weld base ground for full penetration weld per MIL-STD-22D (P68 joint) | |
| MSS SP-97. | |
| Pilot and Non-Pilot Bosses | |
| NAVSEA 810-1385912 | |
| 45° Lateral Outlet | |
| Elbow Outlet | |
| Sanitary Hose Barb Outlets | |
| 90/10 Cu-Ni Stub Ends & Bosses | |
| Straight Thermowell Tees | |
| Copper Nickel 90/10 Bellmouth Fittings | |
| Concentric Street Reducers | |
| 90/10 Cu-Ni Collar | |
| Long Turn Tees, Single /Double Sweep -NAVSEA 810-1385880, Revision D | |
| EUROPEAN AND AMERICAN STANDARDS CUPRO NICKEL 90/10 PIPE FITTINGS | |||
| BUTT WELD FITTINGS 90/10 | EEMUA | DIN | ANSI |
| ELBOWS LONG RADIUS | 146 SECTION 1 | DIN 86090 | B 16.9 |
| ELBOWS SHORT RADIUS | B 16.28 | ||
| EQUAL TEES | 146 SECTION 1 | DIN 86088 | B 16.9 |
| REDUCING TEES | 146 SECTION 1 | DIN 86088 | B 16.9 |
| CONCENTRIC REDUCERS | 146 SECTION 1 | DIN 86089 | B 16.9 |
| ECCENTRIC REDUCERS | 146 SECTION 1 | DIN 86089 | B 16.9 |
| EQUAL SADDLES | 146 SECTION 1 | DIN 86087 | |
| REDUCING SADDLES | 146 SECTION 1 | DIN 86087 | |
| END CAPS | 146 SECTION 1 | DIN 28011 | B 16.9 |
