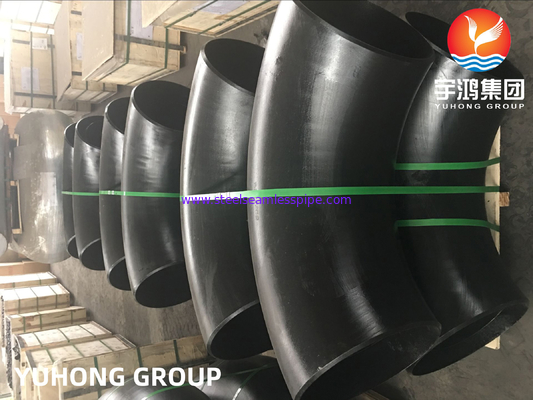

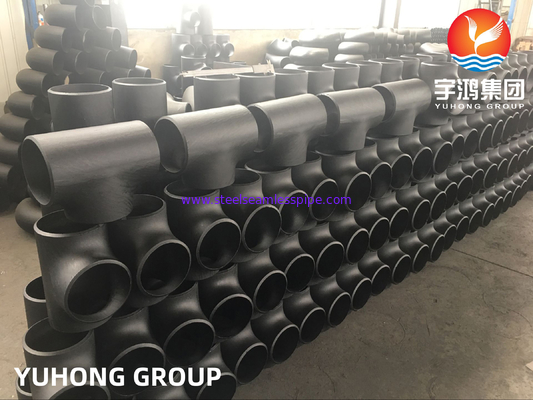

ASTM A234 WPB Black Coated Carbon Steel Pipe Fittings Tee / Elbow

ASTM A234 WPB Black Coated Carbon Steel Pipe Fittings Tee / Elbow

  • ASTM A234 WPB Black Coated Carbon Steel Pipe Fittings Tee / Elbow
  • ASTM A234 WPB Black Coated Carbon Steel Pipe Fittings Tee / Elbow
  • ASTM A234 WPB Black Coated Carbon Steel Pipe Fittings Tee / Elbow
  • ASTM A234 WPB Black Coated Carbon Steel Pipe Fittings Tee / Elbow
ASTM A234 WPB Black Coated Carbon Steel Pipe Fittings Tee / Elbow
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: API , ABS, DNV, GL , LR, NK.
Model Number: ASTM A234 WPB 90Degree Elbow,Tee,Flange, Carbon Steel CS Butt Weld BW fitting
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7 DAYS
Payment Terms: L/C,T/T
Contact Now
Detailed Product Description
Product Name: Carbon Steel Pipe Fitting Standard: ANSI/MSS/JIS/BS/GOST/EN/DIN
Material: Carbon Steel ASTM, A234WPB, A234WPC, A420WPL6 Technics: Casting
Shape: ELBOW/TEE/REDUCER/CAP/FLANGE Surface Treatment: Anti-rust Oil, Clear Lacquer, Black Lacquer, Hot-dipped Galvanized
Connection: Welding Color: Black
High Light:

astm a234 carbon steel pipe fittings

,

wpb carbon steel pipe fittings

,

astm a234 wpb carbon steel elbow

Carbon Steel Pipe Fittings, ASTM A234 WPB CS TEE, FLANGE, Elbow





YUHONG GROUP are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With decades of years development, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.





What is A234 WPB material?

WPB is a steel grade in which W stands for weldable, B is grading B and P stands for pressure. Thus it is referring minimum yield strength. ASTM A106 A53, API 5L grade B A234 WPB and Grade B is common carbon steel material of pipe fitting., The ASTM A234 A234M is a standard specification.





What does WBP mean in piping?

Weather & Boil Proof





Chemical Requirements OF ASTM A234 WPB

Element

Content, %
ASTM A234 WPB
Carbon [C] ≤0.30
Manganese [Mn] 0.29-1.06
Phosphorus [P] ≤0.050
Sulfur [S] ≤0.058
Silicon [Si] ≥0.10
Chromium [Cr] ≤0.40
Molybdenum [Mo] ≤0.15
Nickel [Ni] ≤0.40
Copper [Cu] ≤0.40
Vanadium [V] ≤0.08





Mechanical Properties of ASTM A234 WPB



ASTM A234 Grades

Tensile Strength, min. Yield Strength, min. Elongation %, min

ksi

ksi MPa Longitudinal Transverse
WPB 60 35 240 22 14





Scope

ASTM A234 covers wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASME B16.9, B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97. These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures.





Process

Killed steel, with forgings, bars, plates, sheet, and seamless or fusion-welded tubular products with filler metal added. Forging or shaping operations performed by hammering, pressing, piercing, extruding, upsetting, rolling, bending, fusion welding, machining, or by a combination of two or more of these operations.





Heat Treatment

After forming at an elevated temperature, fittings are cooled to a temperature below the critical range under suitable conditions to prevent injurious defects caused by too rapid cooling, but in no case more rapidly than the cooling rate in still air. Heat treatment temperatures specified are metal (part) temperatures.





Tests and Examinations

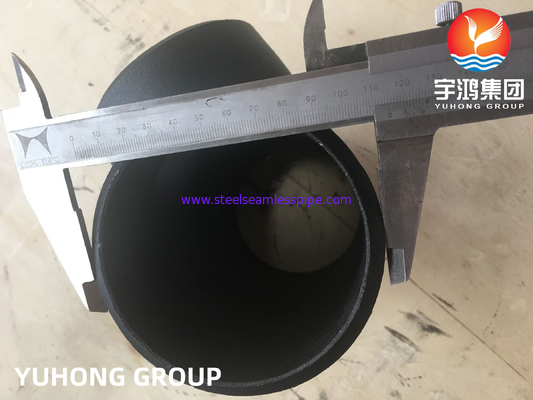

ASTM A234 WPB or WPC fittings shall be furnished free of injurious imperfections such as dents, crackings, scratches, etc. Rigorous dimensional examination and visual inspection shall be performed. PMI heat analysis and tensile tests shall be performed to determine its chemical composition and mechanical properties. When required, other tests including Liquid Penetrant Inspection, Magnetic Particle Examination, Eddy-Current Test and Ultrasonic Test may be performed.





Application

  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASTM A234 WPB Sch 10 fittings are an economical alternative for lower-pressure applications.
  • ASTM A234 WPB Sch 40 fittings have a thicker wall for higher-pressure applications.
