Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | NO2200 |
Minimum Order Quantity: | 100KGS |
---|---|
Price: | NEGOTIABLE |
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T |
Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
Standard: | ASTM B161 , ASTM B163 , ASTM B725 | Material: | Nickel200 , Alloy 200 , 2.4066 , UNS NO2200 |
---|---|---|---|
OD: | DN 15 TO DN600 | NDT: | ET, HT, UT |
WT: | SCH10,SCH40,SCH80 | TYPE: | SEAMLESS,WELDED |
High Light: | nickel alloy pipe astm b163,uns no2200 nickel alloy pipe,uns no2200 nickel alloy tube |

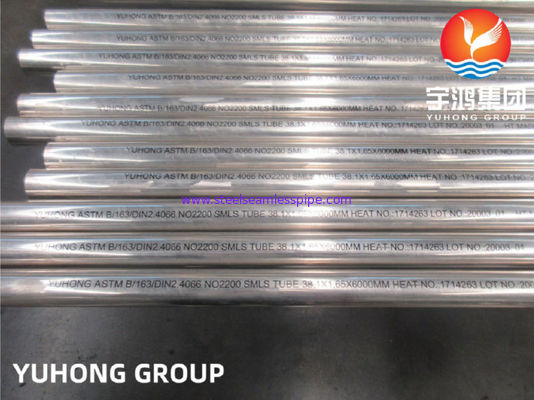

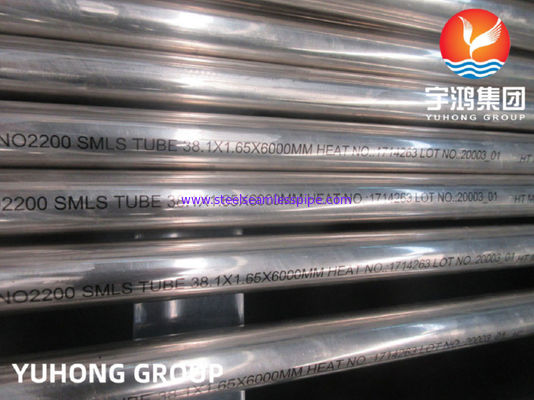

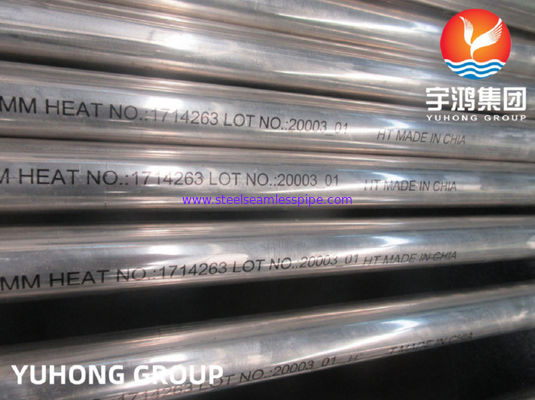

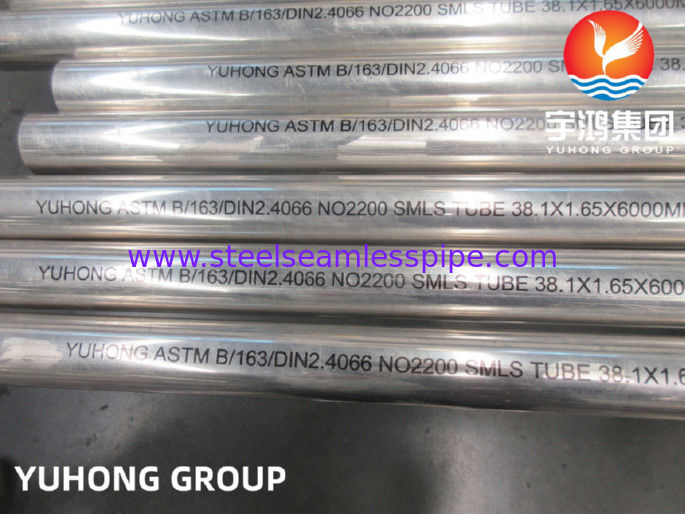

Seamless Nickel Alloy Pipe ASTM B163 UNS N02200 N02201 TUBE
Nickel 201 is designated as UNS N02201 and Werkstoff Numbers 2.4061 and 2.4068.
Specifications for Nickel 200 include the following:
Rod and Bar: ASTM B 160; ASME SB 160, DIN 17752, ISO 9723, VdTÜV 345.
Pipe and Tube: ASTM B 161; ASME SB161, ASTM B 163; ASME SB 163, ASTM B 725; ASME SB 725, ASTM B730; ASME SB 730, ASTM B 751; ASME SB 751, ASTM B775; ASME SB 775, ASTM B 829; ASME SB 829, DIN 17751, ISO 6207, BS 3074 (NA12), VdTÜV 345.
Plate, Sheet & Strip: ASTM B 162/ ASME SB 162, DIN 17750, ISO 6208, BS 3072-3073 (NA12), SAE AMS 5553, VdTÜV 345.
Fittings: ASTM B 366/ ASME SB 366
Forgings: ISO 9725, DIN 17754
Chemical Composition: DIN 17740
Wire: DIN 17753, ISO 9724
Chemical Composition
Nickel (plus cobalt) ......................................................................................................................................99.0 min.
Copper..........................................................................................................................................................0.25 max.
Iron................................................................................................................................................................0.40 max.
Manganese ...................................................................................................................................................0.35 max.
Carbon...........................................................................................................................................................0.15 max.
Silicon ...........................................................................................................................................................0.35 max.
Sulfur ............................................................................................................................................................0.01 max
Physical Properties of Nickel Alloy 200/201 in the Annealed Condition at -20°F to +100°F
Tensile Strength | Yield Strength | ||||||||||||||
Alloy | UNS Designation | Spec. | psi | MPa | ksi | psi | MPa | ksi | Elongation in 2 in. (min.) % | Grain Size Req. | Max. Hardness | Modulus of Elasticity (x106psi) | Mean Coefficient of Thermal Expansion ((IN./IN./°F x 10-6) | Thermal Conductivity (BTU-in/ ft2-h-°F) | |
200 | N02200 | B725, B730 | 55,000* | 380* | 55 | 15,000* | 105* | 15 | 35* | — | — | 30 | 7.4 | 533 | |
201 | N02201 | B725, B730 | 50,000* | 345* | 50 | 12,000* | 80* | 12 | 35* | — | — | 30 | 7.4 | 533 |
Composition of Nickel Alloy 200/201 tubing and pipe
Grade | 200 | 201 | |||
UNS Designation | N02200 | N02201 | |||
Nickel (Ni) | 99.0 Min. (Plus Cobalt) | 99.0 Min. (Plus Cobalt) | |||
Chromium (Cr) | — | — | |||
Iron (Fe) | 0.40 Max. | — | |||
Molybdenum (Mo) | — | — | |||
Titanium (Ti) Max. | — | — | |||
Aluminum (Al) Max. | — | — | |||
Cobalt (Co) Max. | — | — | |||
Tungsten (W) | — | — | |||
Vanadium (V) Max. | — | — | |||
Copper (Cu) Max. | 0.25 | 0.25 | |||
Manganese (Mn) Max. | 0.35 | 0.35 | |||
Niobium (Nb) plus Tantalum | — | — | |||
Carbon (C) Max. | 0.15 | 0.02 | |||
Nitrogen (N) Max. | — | — | |||
Silicon (Si) Max. | 0.35 | 0.35 | |||
Sulphur (S) Max. | 0.01 | 0.01 | |||
Phosphorous (P) Max. | — | — | |||
Other Elements | — | — |
Nickel Alloy 200/201 Product Range
Alloy | UNS Designation | Werkstoff NR. | Specifications* | ||||
200 | N02200 | 2.4066 | B161, B163 | ||||
201 | N02201 | 2.4061 | B161, B163 |
