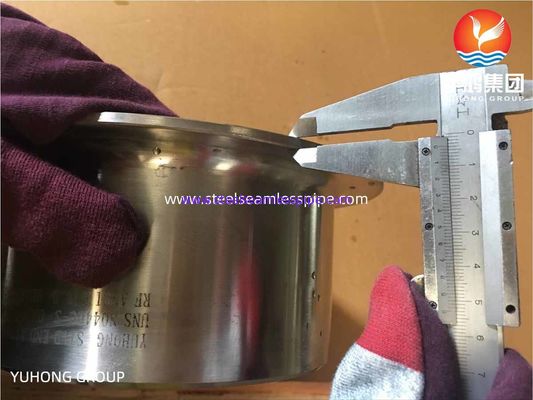

ASTM B366 Monel 400 / UNS N04400 / DIN 2.4360 Butt Weld Fitting Stud End

ASTM B366 Monel 400 / UNS N04400 / DIN 2.4360 Butt Weld Fitting Stud End

ASTM B366 Monel 400 / UNS N04400 / DIN 2.4360 Butt Weld Fitting Stud End
video
ASTM B366 Monel 400 / UNS N04400 / DIN 2.4360 Butt Weld Fitting Stud End
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B366 MONEL400 (NO4400) DIN 2.4360
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7 DAYS
Payment Terms: L/C,T/T
Contact Now
Detailed Product Description
Product Name: Butt Weld Fitting Stud End Standard: ASTM B366, ASME SB366
Dimension: ASME/ANSI B16.9, JIS, DIN, EN, API 5L, Etc. Material: Monel 400 / UNS N04400 / DIN 2.4360
Size: 1/2" To 24" Schedule: Sch 10s To Sch XXS Or As Per Custom Requirement
Technique: Cold Drawn
High Light:

astm b366 butt weld pipe fittings

,

monel 400 butt weld fitting

,

uns no4400 butt weld fitting

ASTM B366 Monel 400 / UNS N04400 / DIN 2.4360 Butt Weld Fitting Stud End





Monel 400 / UNS N04400 can easily be welded by gas-tungsten arc, gas metal arc or shielded metal arc processes using appropriate filler metals. There is no need for post weld heat treatment, however, thorough cleaning after welding is critical for optimum corrosion resistance, otherwise there is the risk of contamination and embrittlement.

Finished fabrications can be produced to a wide range of mechanical properties when proper control of the amount of hot or cold working and the selection of appropriate thermal treatments is done.
Like most other nickel alloys, Monel 400 is typically tough to machine and will work harden. However, excellent results can e obtained if you make the correct choices for tooling and machining.

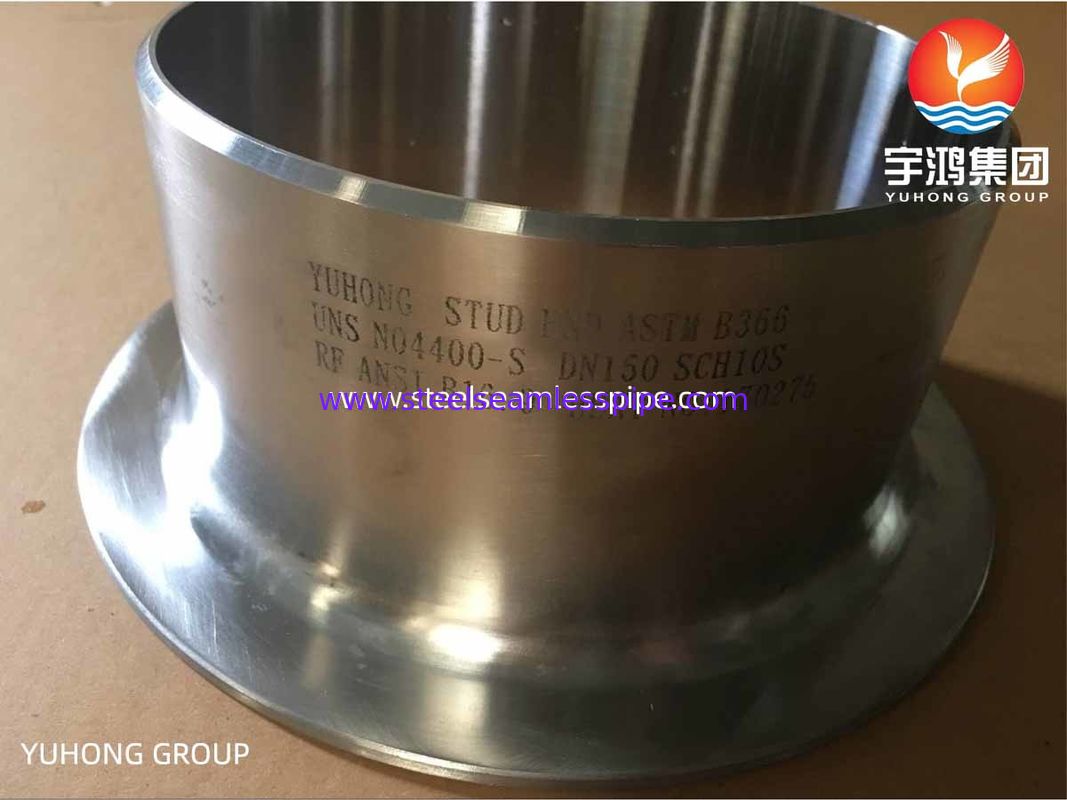

Stub Ends are fittings used in place of welded flanges where rotating back up flanges are desired. They are also called Lap Joints and Vanstone Flared Laps. A rotating back up flange seats itself against the back surface of the Stub End. When bolts are added, the clamping action of the bolts presses the rotating back up flange against the back of the Stub End. The gasket surface of the Stub End then presses against a gasket and another gasket surface providing joints like standard flange joints. The seal is made by the gasket surface of the stub end alone, the flange only provides the clamping pressure on the joint.

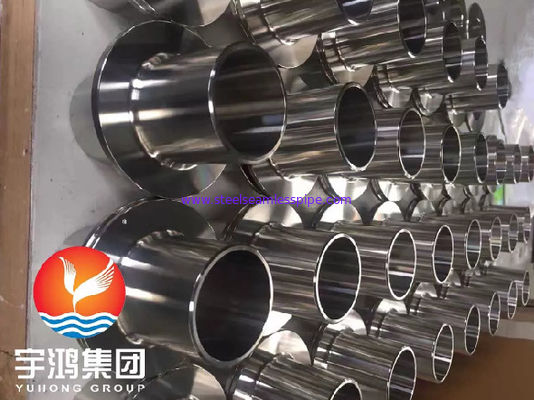

Our high quality stub ends (Butt weld fittings) are tested and verified for durability, accuracy and precision. The stub ends are manufactured in all standard dimensions. The stub ends are provided with a standard weld bevel and can be available in squared, flanged, victaulic and threaded ends. We offer stub ends at highly competitive prices.





Specification

ASTM B366/B366M Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings.





ASTM B366 monel 400 Buttweld Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Monel 400 0.30 max 2.00 max 0.50 max 0.24max 28.0-34.0 2.50 max 63.00 min




ASTM B366 monel 400 Buttweld Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %




ASTM B366 monel 400 Buttweld Fittings Physical Properties

Properties Metric Imperial
Density 8.8 gm/cm3 0.318 lb/in3




Applications

1. Marine engineering.

2. Chemical and hydrocarbon processing equipment.

3. Gasoline and freshwater tanks.

4. Crude petroleum stills.

5. De-aerating heaters.

6. Boiler feed water heaters and other heat exchangers.

7. Valves, pumps, shafts, fittings, and fasteners.

8. Industrial heat exchangers.

9. Chlorinated solvents.

10. Crude oil distillation towers.





ASTM B366 Monel 400 / UNS N04400 / DIN 2.4360 Butt Weld Fitting Stud End 0
