Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | SB163 / SB165 / SB829 Monel Alloy 400 (2.4360) Seamless Nickel Alloy UNS N04400 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Standard: | SB163 , SB165, SB829 | Material Grade: | Monel 400, K500, ALLOY 400, 2.4360 , NO4400 |
|---|---|---|---|
| Surface: | Pickled And Annealed , Bright Annealed, Polished | Packing: | Ply-Wooden Case Or Iron Case |
| Size: | OD 3MM TO 530MM , WT:0.2MM TO 60 MM , LENGTH : MAX 50M | ||
| High Light: | astm b163 alloy 400 pipe,2.4360 alloy 400 pipe,astm b165 alloy 400 tubing |
||

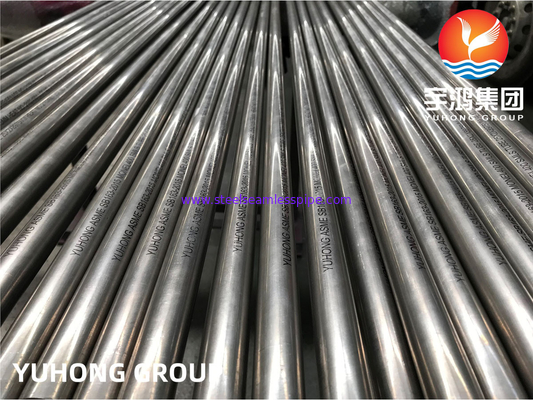

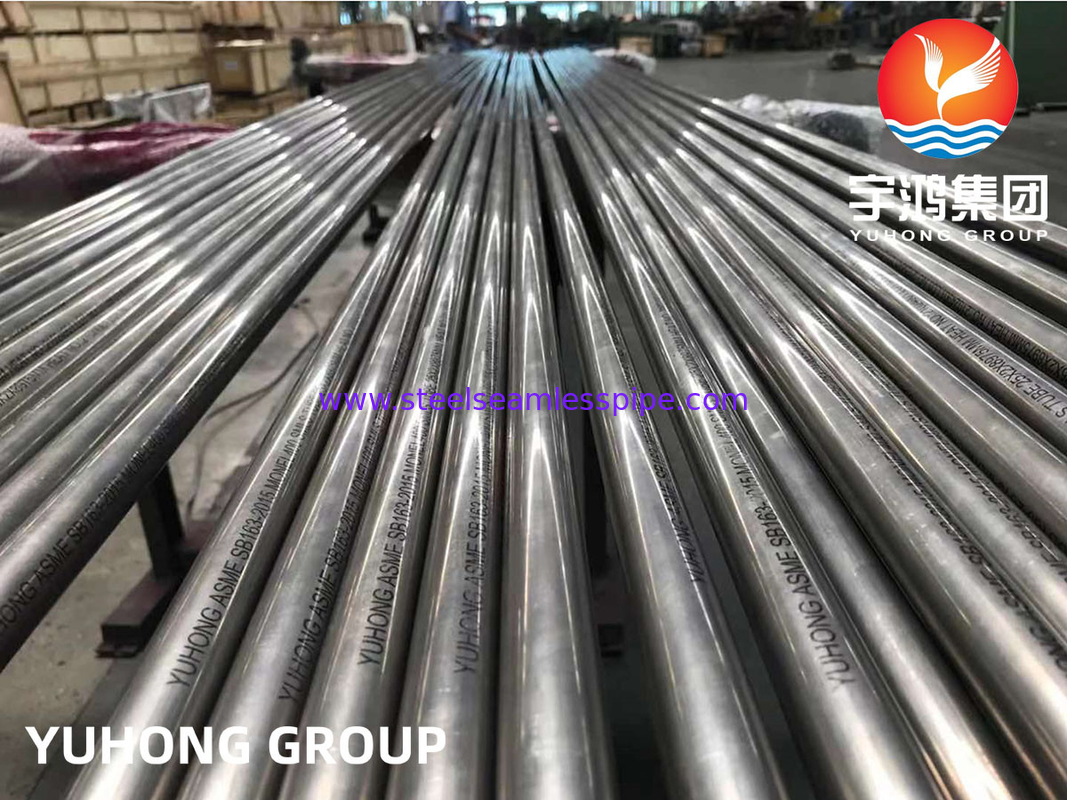

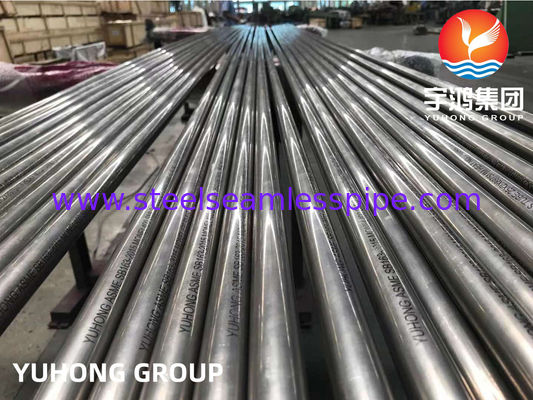

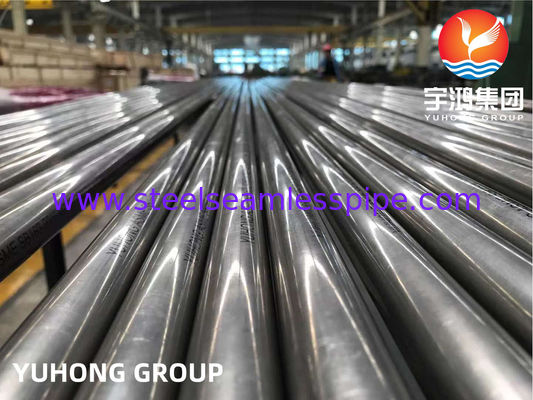

Nickel Alloy Tube , ASTM B163 / B165 Monel 400 ( NO4400, 2.4360) Tube
| ASTM Specification | ASTM B 165 ASME SB 165 / ASTM B 725 ASME SB 725, UNS 4400 Pipe |
|---|---|
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| ASTM B165 monel 400 Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| UNS N04400 Welded Pipe Size | 5.0 - 1219.2 mm |
| Monel WERKSTOFF NR. 2.4360 EFW Pipe size | 5.0 - 1219.2 mm |
| Swg & Bwg | 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg., |
| 400 Monel Pipe Schedule | XS, SCH30, SCH40, XXS, SCH80, SCH120, SCH60, SCH140, STD, SCH10, SCH10S, SCH40S, SCH80, SCH20, SCH5, SCH160 |
| monel 400 pipe Length | Double Random, Single Random, Standard & Cut length Pipe |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| Form | monel 400 are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Type of 400 Alloy Pipe | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW monel 400 |
| monel 400 pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Marking on Alloy 400 Pipe | All ASTM B165 monel 400 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application of monel 400 pipe | Dairy Pipes, Oil Pipes, Gas Pipes, Fluid Pipes, Boiler Pipes for Chemical Industry |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | Large Diameter monel 400 pipe |
| monel 400 pipe manufacturing Technique | Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |

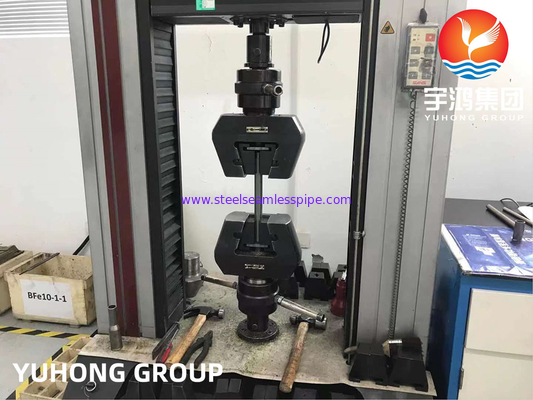

| monel 400 pipe Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Charts, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, monel 400 HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP) |
