ASTM A403 WP317L Stainless Steel Concentric Reducer for Corrosive Process Piping
Engineered Flow Transition for Critical Process Systems
In industrial piping systems, a reducer is more than a connector between two different pipe sizes. It directly influences flow stability, pressure distribution and installation quality. Selecting the correct reducer type and material helps minimize turbulence, maintain process efficiency and improve long-term system reliability.

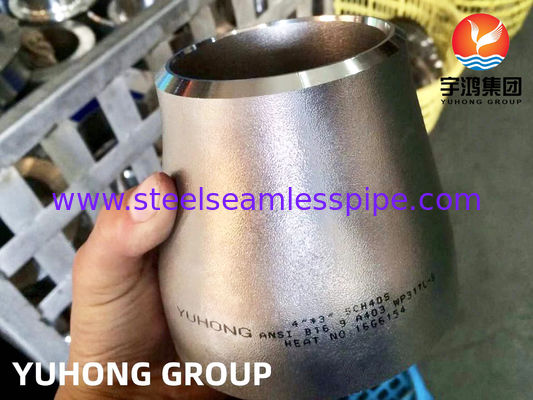

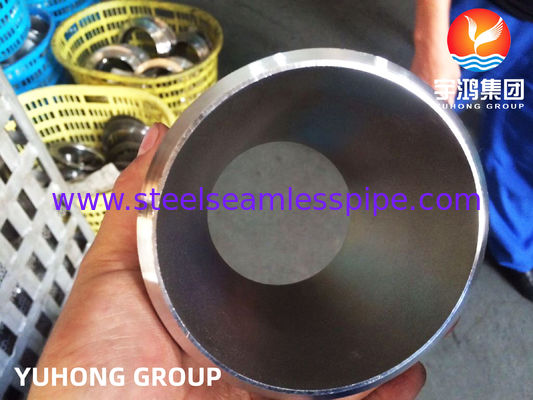

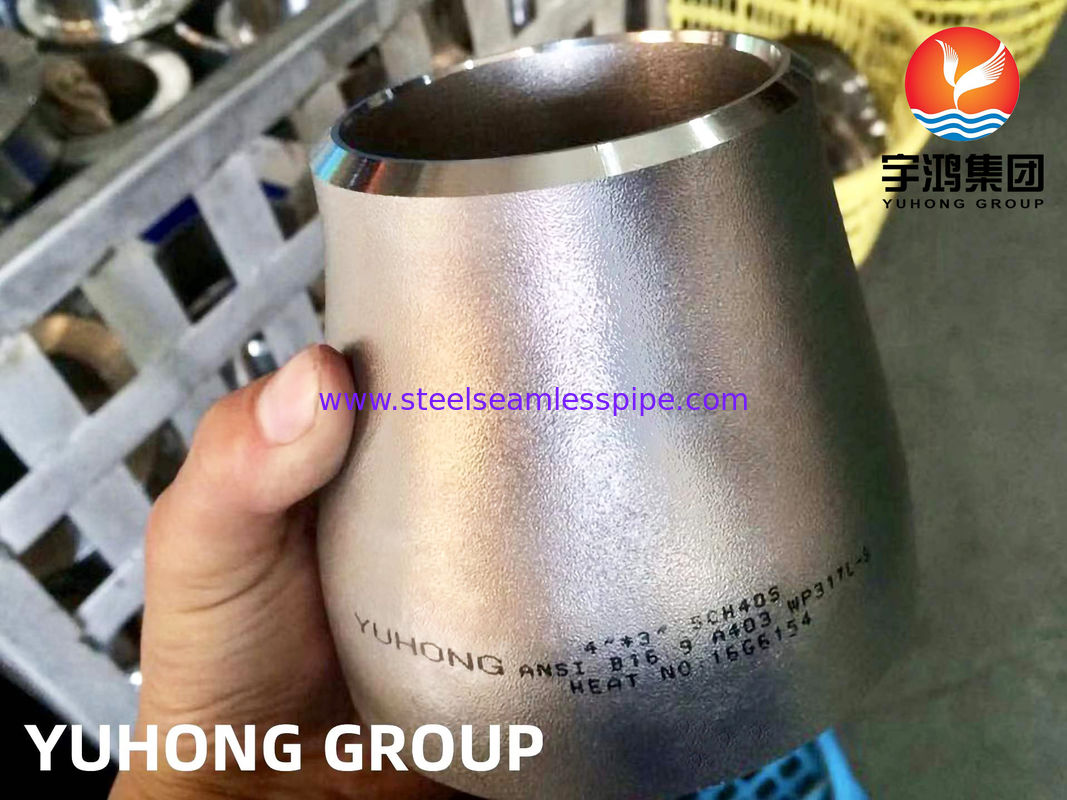

YUHONG supplies ASTM A403 WP317L Stainless Steel Concentric Reducers manufactured in accordance with ASTM A403 material requirements and ASME B16.9 dimensional standards. Every fitting is produced from fully traceable raw materials and undergoes comprehensive inspection to ensure dimensional accuracy, welding compatibility and reliable performance in corrosive process environments. ASTM A403 covers wrought austenitic stainless steel fittings for pressure piping, while ASME B16.9 defines the dimensions and tolerances for factory-made butt-welding fittings.
When Should a Concentric Reducer Be Used?
A concentric reducer keeps the centerline of both pipes aligned, making it suitable for systems where symmetrical flow and balanced pressure distribution are required. Typical installation locations include:
-
Vertical Process Pipelines
-
Heat Exchanger Connections
-
Pressure Vessel Nozzles
-
Reactor Inlet & Outlet Lines
-
Chemical Transfer Systems
-
Refinery Process Units
Unlike eccentric reducers, concentric reducers are primarily selected where maintaining a common pipe centerline is more important than avoiding liquid accumulation.
Material Selection Guide
Choosing the appropriate fitting material depends on the process medium rather than simply matching the pipe material.
|
Process Medium
|
Recommended Material
|
|
Industrial Water
|
WP304L
|
|
Mild Chemical Process
|
WP316L
|
|
Chloride Process Fluids
|
WP317L
|
|
Seawater Systems
|
Duplex S31803
|
|
High Chloride + High Strength
|
Duplex S32205
|
|
Strong Acid Service
|
Alloy 20 / Nickel Alloy
|
WP317L contains a higher molybdenum content than WP316L, providing improved resistance to pitting and crevice corrosion in chloride-containing environments.
Why Choose WP317L Instead of WP316L?
|
Property
|
WP316L
|
WP317L
|
|
Molybdenum Content
|
Standard
|
Higher
|
|
Pitting Resistance
|
Good
|
Better
|
|
Crevice Corrosion Resistance
|
Good
|
Improved
|
|
Chloride Service
|
Moderate
|
More Demanding Environments
|
|
Typical Industries
|
General Process
|
Chemical & Offshore
|
For applications involving aggressive chemicals or elevated chloride concentrations, WP317L is often selected to provide a greater corrosion resistance margin.
Technical Specifications
|
Item
|
Specification
|
|
Standard
|
ASTM A403 / ASME SA403
|
|
Dimensional Standard
|
ASME B16.9
|
|
Material Grade
|
WP317L / UNS S31703
|
|
Product Type
|
Concentric Reducer
|
|
Connection
|
Butt Weld (BW)
|
|
Size Range
|
1/2"–48" (DN15–DN1200)
|
|
Wall Thickness
|
SCH 5S–SCH XXS
|
|
Surface Finish
|
Pickled, Passivated
|
|
Heat Treatment
|
Solution Annealed (When Applicable)
|
|
Inspection
|

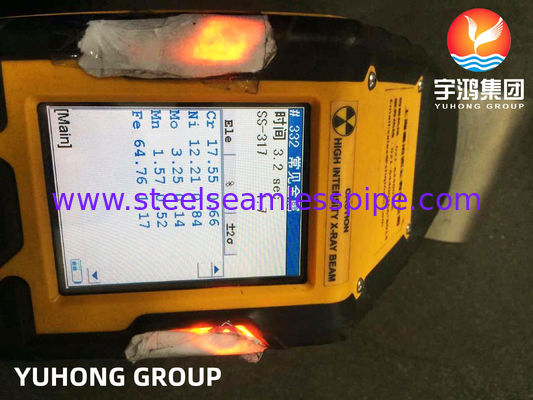

PMI, Visual Inspection, Dimensional Inspection, UT (If Required)
|
Procurement Checklist
Before ordering a concentric reducer, engineers should confirm:
✔ Nominal Pipe Size (NPS)
✔ Schedule / Wall Thickness
✔ Material Grade
✔ ASTM Material Standard
✔ ASME Dimensional Standard
✔ Weld End Preparation
✔ Inspection Requirements
✔ Material Test Certificate
Providing this information at the quotation stage helps ensure compatibility with the connected piping system and reduces the risk of installation issues.
Typical Project Industries
|
Industry
|
Typical Installation
|
|
Petrochemical
|
Process transfer lines
|
|
Oil & Gas
|
Refinery piping
|
|
Chemical Processing
|
Corrosive media pipelines
|
|
Desalination
|
Chloride service piping
|
|
Power Generation
|
Auxiliary process systems
|
|
Pharmaceutical
|
High-purity process piping
|
|
Water Treatment
|
Chemical dosing systems
|
Inspection & Documentation
Available documentation includes:
-
EN 10204 3.1 Material Test Certificate
-
Positive Material Identification (PMI)
-
Dimensional Inspection Report
-
Chemical Composition Report
-
Mechanical Test Report
-
Third-Party Inspection (SGS, TÜV, BV, DNV)
Why Choose YUHONG
Rather than supplying individual fittings, YUHONG provides complete piping material solutions for industrial projects. In addition to ASTM A403 butt weld fittings, the product portfolio includes stainless steel pipes, duplex pipes, nickel alloy pipes, forged fittings and flanges, allowing EPC contractors and industrial manufacturers to source compatible piping components from a single supplier.
Every order is supported with full material traceability, flexible manufacturing options and project documentation to meet international engineering requirements.
