Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A213 TP316L |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 Tons Per Month |
| Application: | Construction,Decoration,Industry,boiler,Chemical | Standard: | GB,DIN,ASTM,JIS,AISI |
|---|---|---|---|
| Steel Grade: | 300 Series,304 304L 316 316L 310S 321 | Type: | Seamless,Welded |
| Thickness: | 1.24mm-3.81mm | Length: | 3000mm~6000mm,Customer Request,18000max. |
| Outer Diameter: | 1/2"-8", Max 304.8mm | Technique: | Cold Rolled Hot Rolled,Cold Drawn,welded,seamless |
| Surface: | Pickled | Grade: | 304L 316 316L 310s 321 321H 347 347H |
| Caps: | With Plastic Caps At Both Ends | Dnt: | ET,UT,PT,HT |
| Materialrd: | Ferritic And Martensitic Stainless Steel | Ndt: | ET, HT , UT, PT |
| Outside Diameter: | 6-630mm | Price Term: | CIF CFR FOB EX-WORK |
| Products: | Stainless Steel Flange | Schedule: | SCH5-XXS |
| Secondary Or Not: | Non-secondary | Temperature Resistance: | High |
| Test: | NDT Eddy Current Or Hydraulic Test | Use: | Heat Exchanger |
| Welding Type: | Seamless | ||
| High Light: | ASTM A213 Seamless Ss Tubing,Seamless ASTM A213 Tubing,TP316L Seamless Ss Tubing |
||
Yuhong is one of the famous stainless steel pipe suppliers, we provide these after checking all quality parameters
by our experienced and knowledgeable staff. We stock welded and seamless stainless steel tubing in a variety of
industry standard sizes. After more than 20 years of development, we have accumulated a large number of customers
all over the world, and Yuhong products have also won unanimous praise from customers.
| C | Mn | P | S | Si | Ni | Cr | Mo | N | |
|---|---|---|---|---|---|---|---|---|---|
| 316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.0 | 10-14 | 16-18 | 2-3 | |
| 1.4404 | 0.03 | 2.00 | 0.040 | 0.015 | 1.0 | 10-13 | 16.5-18.5 | 2-2.5 | 0.11 |
ASTM A213 316L Stainless Steel Mechanical Properties
| Tensile Strength(Mpa) | Yield Point(Mpa) | Elongation(%) | Elongation(%) | |
|---|---|---|---|---|
| 316L | 485 | 170 | 35 | 25 |
| 1.4404 | 490-690 | 190 | 40 | 30 |
316L Stainless Steel Features
316L stainless steel grade is molybdenum-containing austenitic stainless steel, 316L is more resistant to
general corrosion, pitting corrosion and crevice corrosion than conventional chromium-nickel austenitic
stainless steel such as 304.
316L stainless steel also provides higher creep, rupture stress and tensile strength at elevated temperatures.
Recommended temperature ranges include -425°F to 1,200°F (-255°C to 605°C).
In addition to excellent corrosion resistance and strength properties, Alloys 316 and 316L Cr-Ni-Mo alloys
provide the typical machinability and formability of austenitic stainless steels, with 316l commonly used in
marine environments.
ASTM a213 Tp316L is a designation for heat exchangers or high pressure pipes designed with 316L austenitic stainless steel.
ASTM A213 TP316L Pipe is manufactured with a fine chemical composition of Nickel, Chromium and Molybdenum. The content
allows these modules to work in highly corrosive and oxidizing media. Low carbon ASTM A213 SS 316L pipe also occurs in
environments where the material is prone to pitting and crevice corrosion. These tubes are designed to be between 0.40mm and
12.70mm thick. Robust 316L tubing can be machined in either hot or cold drawn processes. ASTM A213 TP316L cold drawn tubing
is machined at room temperature, giving modules an enhanced surface finish and excellent strength. Our outstanding institute has
partnerships with some of the best logistics systems in the country, allowing us to efficiently ship products to your doorstep.

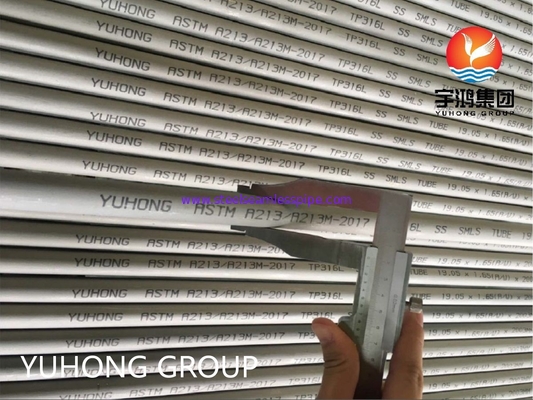

| OD, MM | OD TOLERANCE |
|---|---|
| < 25.4 | +/- 0.10 |
| 25.4 – <= 38.1 | +/- 0.15 |
| > 38.1 -< 50.8 | +/- 0.20 |
| 50.8 -< 63.5 | +/- 0.25 |
| 63.5 -< 76.2 | +/- 0.30 |
| 76.2 – <= 101.6 | +/- 0.38 |
| > 101.6 – <= 190.5 | +0.38/-0.64 |
| > 190.5 – <= 228.6 | +0.38/-1.14 |
