Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM, JIS, DIN, EN |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Name: | Nipple | Standard: | ASTM A182 |
|---|---|---|---|
| Material: | F304 | Usage: | Joining Pipe Lines |
| High Light: | stainless steel pipe fitting,stainless pipe fittings |
||

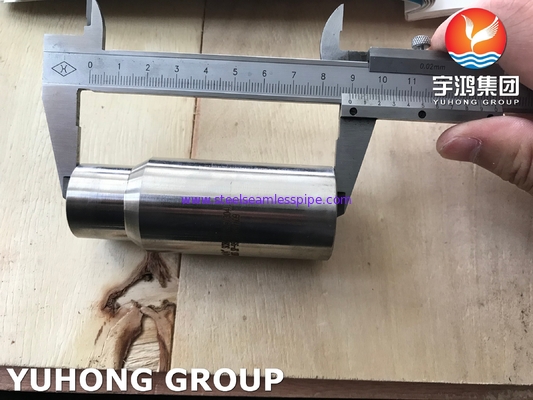

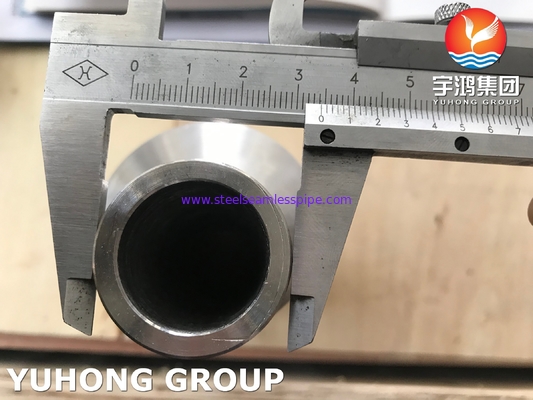

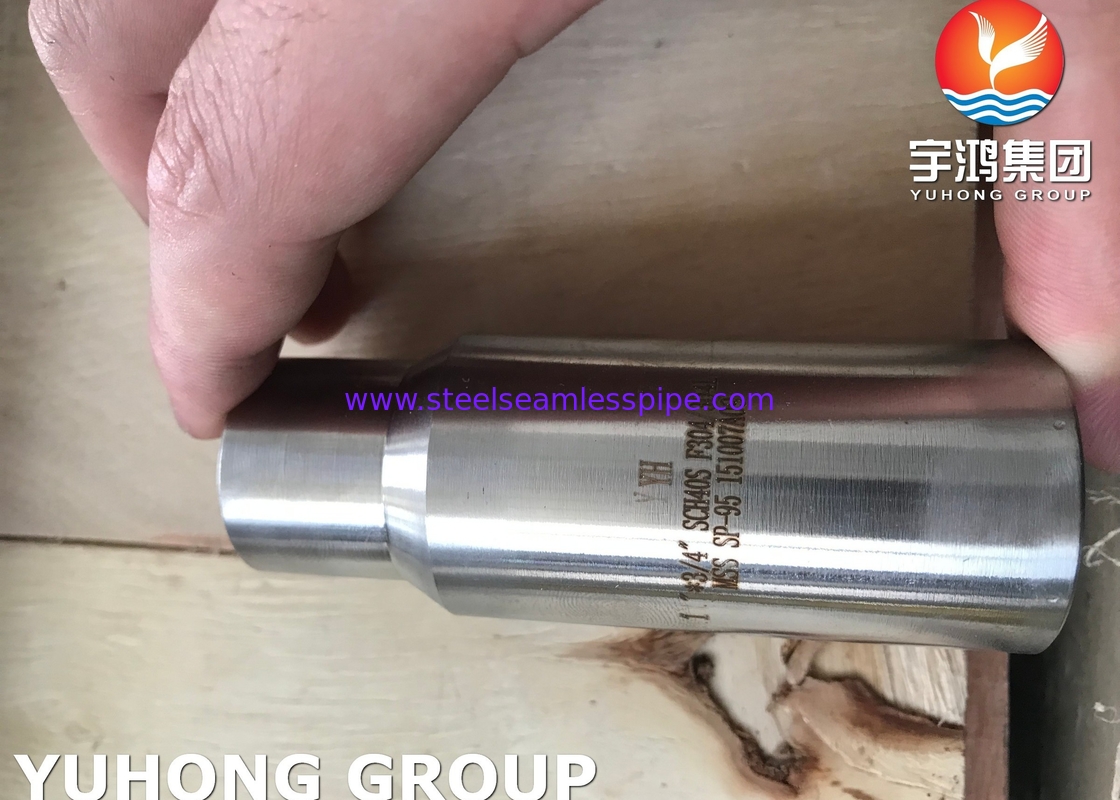

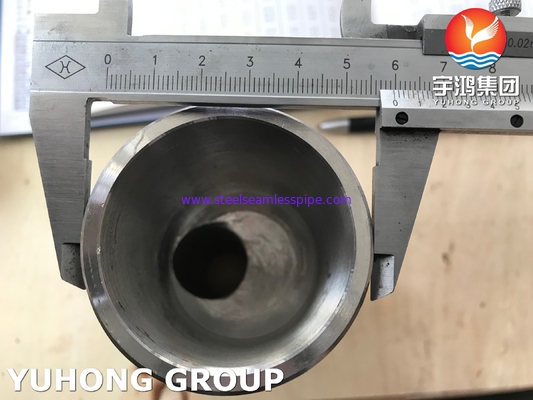

ASTM A182 F304 Nipple MSS SP-79 Stainless Steel Forged Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | – | – | – | – | – |
| Specifications | ASTM A182 & ASME SA182 |
| Stainless Steel Forged Pipe Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| ASTM A182 F304/F304L Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Werkstoff No 1.4301 SS 304 Thread Fittings | NPT , BSPT, BSPP |
| ASME SA182M F304L FittingsType | DN15-DN1200 |
| End | Threaded, Welding, JIC |
| Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| UNS S30400 Forged Steel Fitting Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Industrial Applications for ASME SA182M SS 304 Pipe Fittings |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| Grade | Mn | Si | Cr | N | P | C | S | Ni | Ti |
| SS 304 | 2.0 max | 1.0 max | 17.00 – 19.00 | 0.10 max | 0.045 max | 0.08 max | 0.030 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 304L | 2.0 max | 1.0 max | 17.00 – 19.00 | 0.10 max | 0.045 max | 0.04 – 0.10 | 0.030 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
Grades |
Tensile Strength |
Yield Strength (0.2%Offset) | Melting Point | Density |
Elongation |
| SS 304 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 8.0 g/cm3 | 35 % |
| SS 304L | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 8.0 g/cm3 | 35 % |
| SS 304H | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 8.0 g/cm3 | 40 % |
