Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM, JIS, DIN, EN |
Minimum Order Quantity: | 100KGS |
---|---|
Price: | NEGOTIABLE |
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
Delivery Time: | 7 DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
Name: | Elbow 180° | Standard: | ASTM A815 |
---|---|---|---|
Material: | WPS32205-S | Application: | Construction,gas And Oil Pipes |
High Light: | stainless steel pipe fitting,stainless pipe fittings |

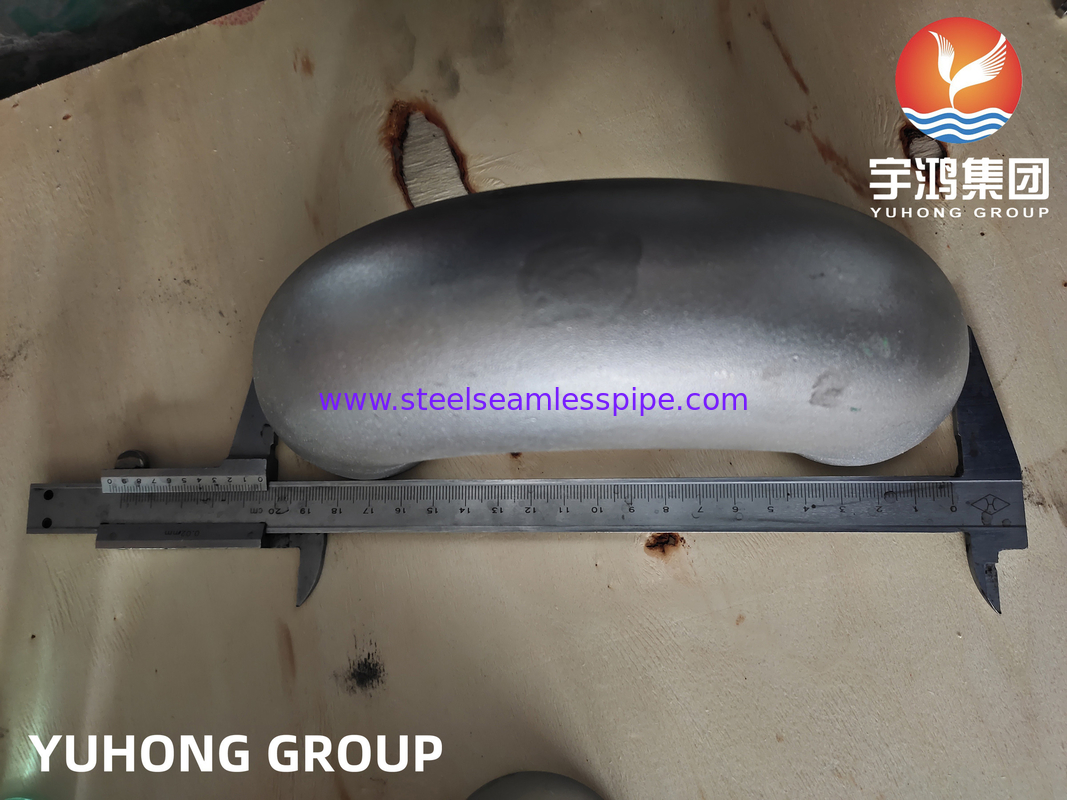

ASTM A815 WPS32205-S U Elbow 180 Degree Super Duplex Stainless Steel Fittings
S32205 Duplex Pipe Fittings
S32205 Duplex Pipe Fittings has excellent oxidation resistance at elevated temperatures. Because of its characteristically work hardening and high strength, this particular grade is hard to form. ASTM A815 WPS S32205 has good low temperature toughness. ASTM A815 UNS S32205 has a maximum hot forming temperature between 2010°F and 2100°F (1100°C to 1150°C).

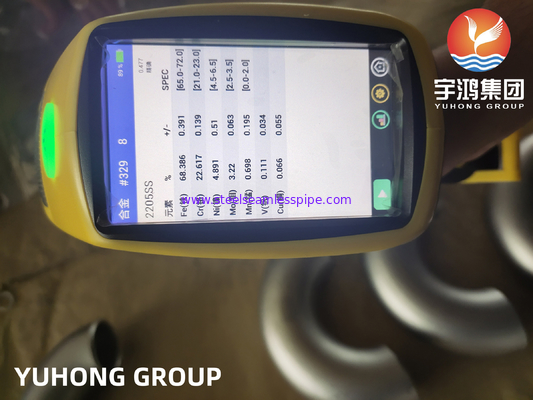

Chemical Composition of S32205 Duplex Pipe Fittings
C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
ASTM A815 UNS S32205 Duplex Fittings Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS |
ASTM A815 WP-S | 1.4462 | S32205 |
UNS S32205 Duplex Fittings Mechanical Properties
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | REDUCERS | CAPS |
NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Centre -to- End Dimension A, B, C, M | Centre-to- Centre O | Back-to- Face K | Alignment of Ends U | Overall Length H | Overall Length E |
½ to 2½ | 0.06 -0.03 |
0.03 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
3 to 3 ½ | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
4 | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
5 to 8 | 0.09 -0.06 |
0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
10 to 18 | 0.16 -0.12 |
0.12 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
20 to 24 | 0.25 -0.19 |
0.19 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
26 to 30 | 0.25 -0.19 |
0.19 | 0.12 | … | … | … | 0.19 | 0.38 |
32 to 48 | 0.25 -0.19 |
0.19 | 0.19 | … | … | … | 0.19 | 0.38 |
SA 182 S32205 Forged Socket Weld Fittings | |
S32205 Duplex Tees | S32205 Duplex Caps |
S32205 Duplex 45° Elbows | S32205 Duplex Reducers |
S32205 Duplex 90° Elbows | S32205 Duplex Couplings |
S32205 Duplex Street Elbows | S32205 Duplex Inserts |
S32205 Duplex Crosses | S32205 Duplex Unions |
Long Radius (LR):30, 45, 90, 180 degree
Short Radius (SR):30, 45, 90, 180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D
Supplier of ASTM A182 S32205 Tube To Union, Duplex UNS S32205 Reducing Union, Duplex Stainless Steel S32205 Union Tee, Duplex Steel S32205 Ferrule Fitting Union Tee Supplier, ASTM A182 UNS S32205 Tube Fittings Union, ASTM A182 UNS S32205 Union Exporter in India. We also stock SA 182 S32205 Union Elbow Distributor, SA 182 S32205 28-2,5-1,5 Bulkhead Union Duplex Stainless Steel S32205, ASTM A182 UNS S32205 Alloy Union Dealer, ASTM A182 UNS S32205 F60 Union Cross
