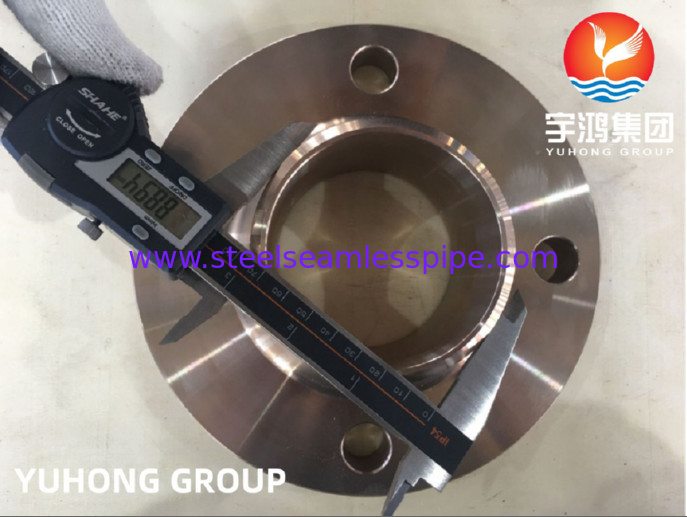

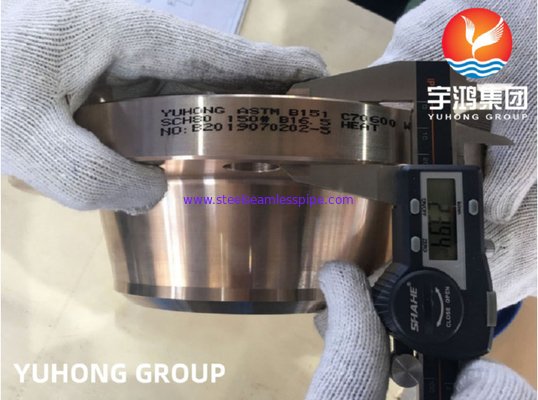

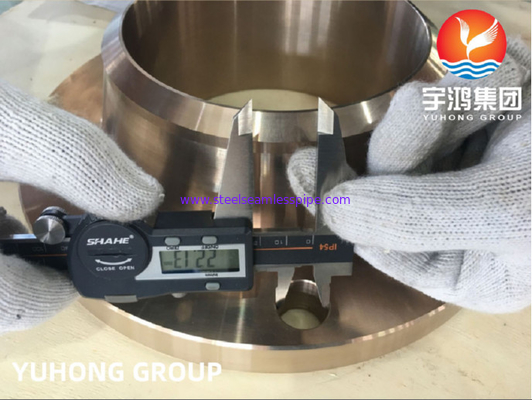

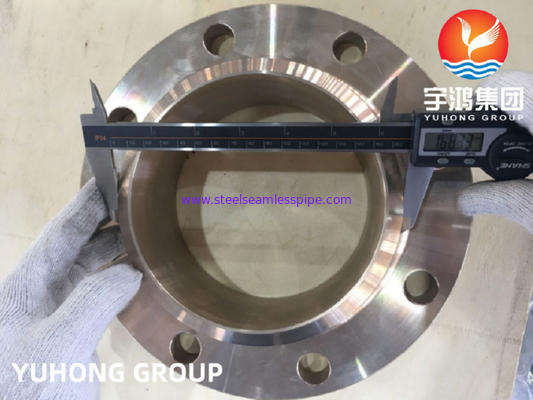

ASTM B151 C70600 COPPER NICKEL ALLOY STEEL WNRF FLANGE B16.5

ASTM B151 C70600 COPPER NICKEL ALLOY STEEL WNRF FLANGE B16.5

  • ASTM B151 C70600 COPPER NICKEL ALLOY STEEL WNRF FLANGE B16.5
  • ASTM B151 C70600 COPPER NICKEL ALLOY STEEL WNRF FLANGE B16.5
  • ASTM B151 C70600 COPPER NICKEL ALLOY STEEL WNRF FLANGE B16.5
  • ASTM B151 C70600 COPPER NICKEL ALLOY STEEL WNRF FLANGE B16.5
ASTM B151 C70600 COPPER NICKEL ALLOY STEEL WNRF FLANGE B16.5
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: API, PED, ASME , TUV , ABS, LR , BV, DNV , GL , KR
Model Number: C70600
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7-15 days
Payment Terms: L/C, T/T
Supply Ability: ACCORDING TO CLIENT'S REQUIREMENT
Contact Now
Detailed Product Description
Specification: ASTM B151 Material Grade: UNS C70600 / DIN 2.0872
Size: 1/2"~36" Pressure: Class150/300/600/900/1500/2500
Process: Forged Inspection: 100% Inspection
Certificate: API, PED, ASME , TUV , ABS, LR , BV, DNV , GL , KR Third Party Inspection: BV,SGS,ASP
High Light:

forged flange

,

stainless steel flange

ASTM B151 UNS C70600 / DIN2.0872 WNRF FLANGE COPPER NICKEL ALLOY FORGING PROCESS B16.5


Copper nickel is mainly composed of copper and nickel, and contains small amounts of other elements. It has beautiful yellow appearance because of the large amount of copper. The most popular copper nickel are UNS C70600 and C71500. UNS C70600 Flanges contains 90% copper and 10% nickel, so it's also called Cu-Ni 90/10 flange. C71500 flange is 70/30 copper nickel flange.

ASME B16.5 standard C70600 flanges are mainly used on the oil field. There are 5 main flange types as below:

  1. Copper Nickel Weld Neck Flanges
  2. Copper Nickel Slip On Flanges
  3. Copper Nickel Socket Weld Flanges
  4. Copper Nickel Threaded Flanges
  5. Copper Nickel Blind Flanges

Advantages of UNS C70600 Flange:
ASTM B466 UNS C70600 Flange is stable and reliable at any temperature. It has good strength at moderate and elevate temperatures. At low temperatures, it maintains good mechanical properties, weld ability and high resistance to hydrogen. The great resistance to stress and erosion, excellent fabrication, high tensile strength, accurate dimensions make it largely used in seawater, aerospace, oil, chemical and gas industries.



Applications:

  • Fire protection systems
  • Deluge systems
  • Sanitary plumbing services
  • Process cooling lines
  • Seawater piping
  • Splash zone sheathing



Chemical Composition

The chemical composition of UNS C70600 copper nickel alloys is outlined in the following table.

Element Content (%)
Cu 88.7
Fe 1.3
Ni 10.0



Physical Properties
The following table shows the physical properties of UNS C70600 copper nickel alloys.

Properties Metric Imperial
Density 8.94 g/cm3 0.323 lb/in3



Mechanical Properties
The mechanical properties of UNS C70600 copper nickel alloys are displayed in the following table.

Properties Metric Imperial
Tensile strength, ultimate 303-414 MPa 43900-60000 psi
Tensile strength, yield (depending on temper) 110-393 MPa 16000-57000 psi
Elongation at break (in 254 mm) 42.00% 42.00%
Machinability (UNS C36000 (free-cutting brass) = 100%) 20% 20%
Shear modulus 52.0 GPa 7540 ksi
Poisson's ratio 0.34 0.34
Elastic modulus 140 GPa 20300 ksi



Other Designations
Equivalent materials to UNS C70600 copper nickel alloys are:

ASME SB111 ASTM B111 ASTM B466 ASME SB171
ASME SB359 ASTM B122 ASTM B469 MIL T-22214
ASME SB395 ASTM B151 ASTM B543 SAE J461
ASME SB466 ASTM B171 ASTM B608 SAE J463
ASME SB467 ASTM B359 DIN 2.0872 MIL T-16420
ASME SB543 ASTM B395 MIL C-15726 MIL T-15005
ASTM B432

Fabrication and Heat Treatment:

  • Annealing: UNS C70600 copper nickel alloys are annealed at temperatures between 593 and 816°C (1100 and 1500°F)
  • Cold Working: UNS C70600 copper nickel alloys have good cold working capacity.
  • Hot Working: Copper nickel 90/10 alloys have good hot forming capacity.
  • Welding: Copper nickel 90/10 alloys can be welded using gas shielded arc welding, spot welding, coated metal arc welding, butt welding, oxyacetylene welding, brazing, soldering and seam welding processes.
  • Forging: Temperatures between 843 and 954°C (1550 and 1750°F) are suitable for the forging of 90/10 copper nickel alloys.
  • Machinability: The machinability rating of copper nickel 90/10 alloys is 20%.
  • ASTM B151 C70600 COPPER NICKEL ALLOY STEEL WNRF FLANGE B16.5 0
