Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG SPECIAL STEEL |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | EN1092-1 1.4404 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | PLY-WOODEN CASE PACKING/IRON CASE PACKING |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CLIENT'S REQUIREMENT |
| Product Name: | Stainless Steel EN1092-1 Flanges | Standard: | EN1092-1 |
|---|---|---|---|
| Material: | 1.4404 / 316L | Size: | DN10 To DN3000 |
| Type: | Type11 (Weld Neck Flange/V. Flange) | Pressure: | PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, Etc. |
| Process: | Forged, Drilling/Bending/Stamping, Casting, Heating Treament | Connection: | Welding, Pipe And Pipe, Flange |
| High Light: | forged flange,stainless steel flange |
||

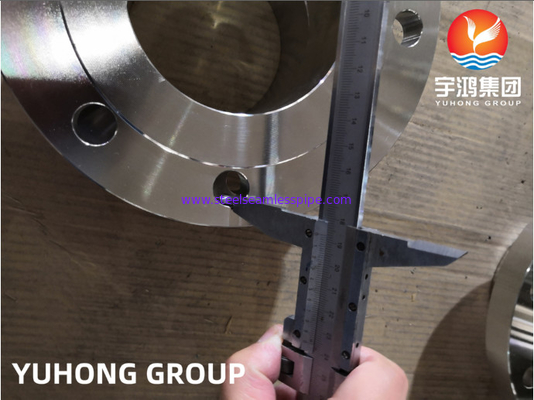

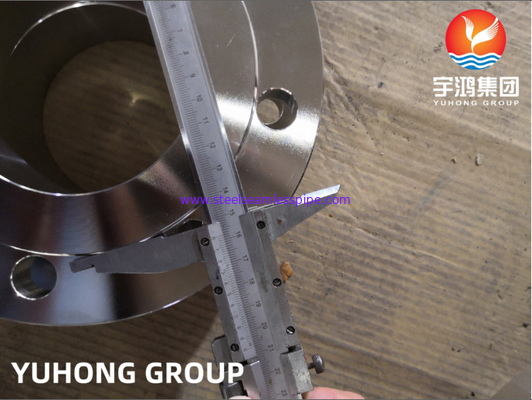

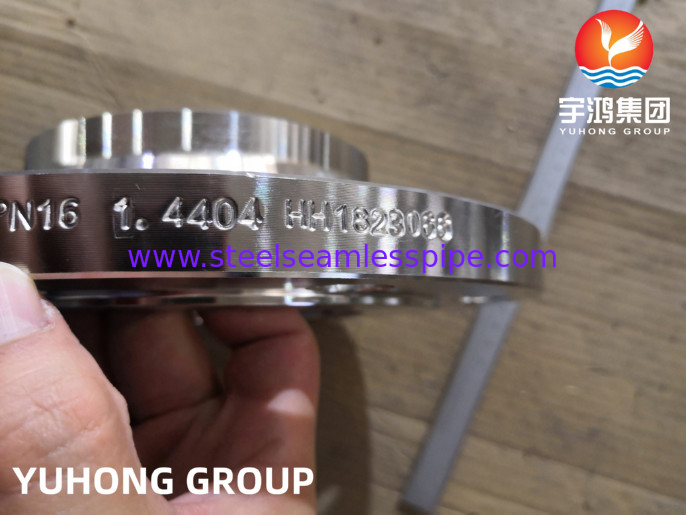

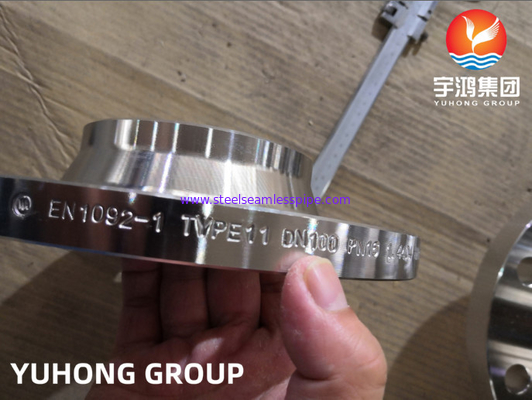

EN1092-1 1.4404 Type11 Stainless Steel Forged WNRF Flanges
EN 1092-1 Type 11 weld neck flanges may be furnished with a series of facings from Type A to Type H, of which raised face (RF, Type B) is most commonly applied. When raised face is furnished, the transition from the raised face to the flange face can be by radius or chamfer. The height of raised face f doesn’t change in different PN designations but only varies in different size ranges. When raised face is furnished, its height shall be included by the flange thickness C as well as by the overall length of flange.
Dimensions : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN 1092-1 Flanges etc.
Standards : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Size : 1/8″ NB TO 48″NB.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
EN 1092-1 type 01,EN 1092-1 type 02,EN 1092-1 type 05,EN 1092-1 type 11 Flange
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
BS : BS4504 , BS4504, BS1560, BS10
EN1092-1 type 11 1.4404 Stainless Steel flange, AISI 316L stainless steel flange
Equivalent Materials
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | – | – | – | – | – |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
| SS 321 | 1.4541 | S32100 | SUS 321 | – | – | – | X6CrNiTi18-10 |
| SS 321H | 1.4878 | S32109 | SUS 321H | – | – | – | X12CrNiTi18-9 |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| SS 410 | 1.4006 | S41000 | SUS 410 | 410S21 | – | – | X12Cr13 |
| SS 446 | 1.4762 | S44600 | – | – | – | – | – |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| EN | ASTM/ASME |
| 1.4301/1.4307 | TP304/304L |
| 1.4401/1.4404 | TP316/316L |
| 1.4541 | TP321 |
| 1.4571 | TP316Ti |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Grade 316L, the low carbon version of F316L pipe flange has immunity against sensitisation, otherwise known as grain boundary carbide precipitation. Thus, the Gr F316L is extensively used in heavy gauge welded components, where the wall thickness can be over 6mm. The austenitic structure in the astm a182 f316l also gives this grades excellent toughness properties ,that can be witnessed at to cryogenic temperatures.
