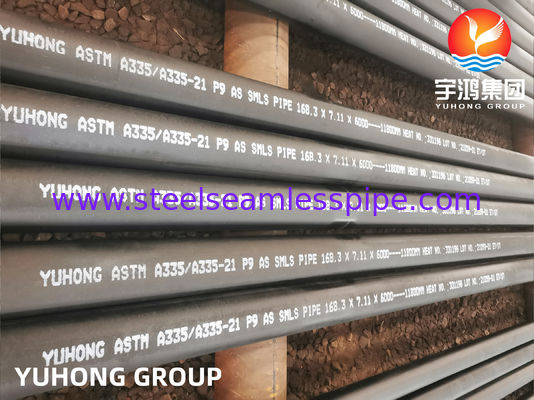

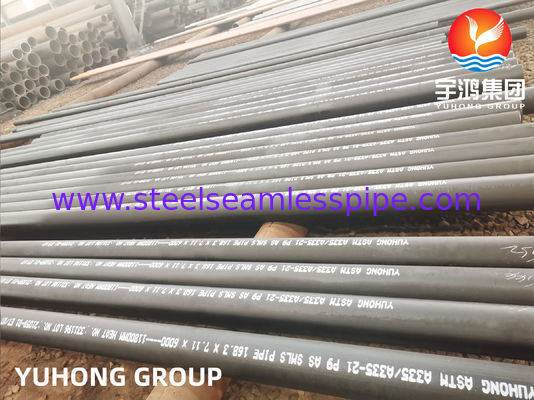

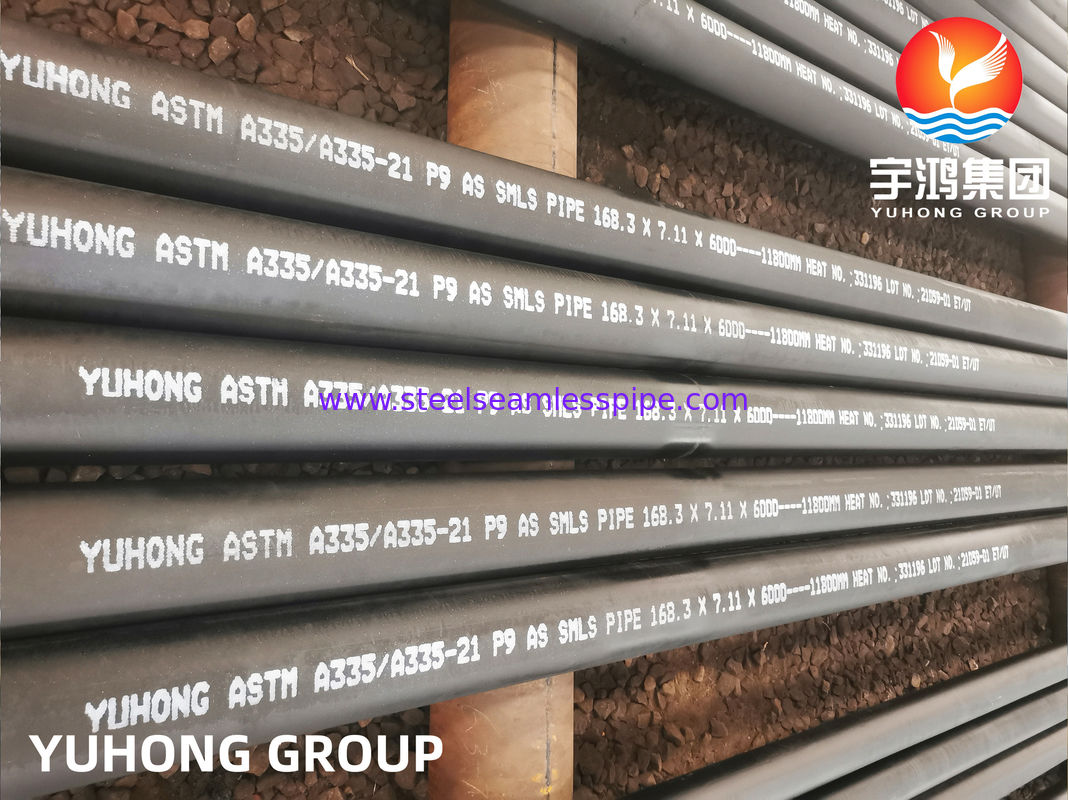

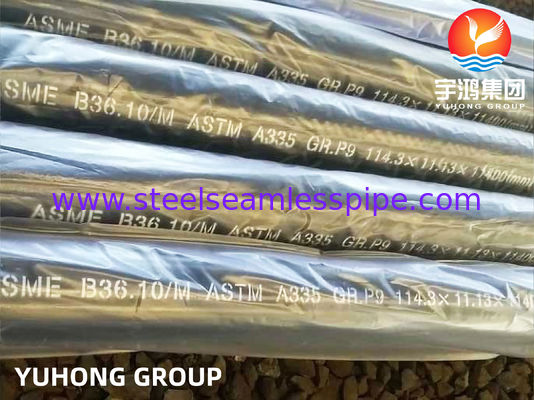

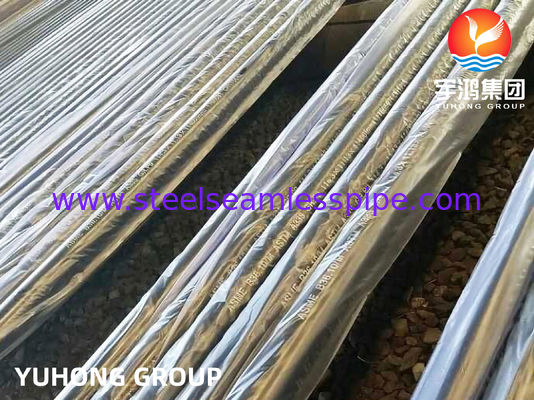

ASTM A335 P9 Alloy Steel Seamless Pipe
Product Introduction
Seamless 9Cr-1Mo Alloy Steel Pipe for Elevated Temperature and Pressure Systems
ASTM A335 P9 Alloy Steel Seamless Pipe is manufactured for high-temperature and high-pressure service where long-term mechanical stability is required. Produced in accordance with ASTM A335 / ASME SA335, P9 is a ferritic chromium-molybdenum alloy steel containing approximately 9% chromium and 1% molybdenum. This alloy composition improves oxidation resistance, creep strength and structural stability under elevated operating temperatures.
The seamless construction provides uniform mechanical properties around the pipe circumference and is suitable for fabrication processes including bending, flanging and fusion welding. ASTM A335 P9 pipes are widely used in power generation, refinery process units, petrochemical plants, superheaters, reheaters and main steam piping systems.
Product Features
- High Temperature Strength
The 9Cr-1Mo alloy system provides stable mechanical properties for continuous service at elevated temperatures.
- Excellent Oxidation Resistance
Chromium-rich alloy composition improves scaling resistance in high-temperature steam and process environments.
Suitable for long-term operation under elevated temperature and pressure where creep performance is an important design consideration.
Manufactured without longitudinal welds to provide uniform strength and reliable performance in pressure piping systems.
- Good Fabrication Performance
Suitable for bending, flanging and fusion welding in accordance with ASTM A335 requirements.
Equivalent Material Grades
|
Standard
|
Grade
|
|
ASTM / ASME
|
ASTM A335 P9 / ASME SA335 P9
|
|
ASTM Flanges / Forging
|
ASTM A182 F9
|
|
ASTM Fittings
|
ASTM A234 WP9
|
|
UNS
|
K90941*
|
|
EN
|
1.7386 (Approximate Equivalent)
|
|
DIN
|
X12CrMo9-1 (Approximate Equivalent)
|
|
JIS
|
STPA26 (Similar Grade)
|
|
GB/T
|
No Fully Equivalent Grade
|
Chemical composition(%) of A335 Alloy Steel Seamless Pipe
| Grade |
C |
Mn |
P≤ |
S≤ |
Si |
Cr |
Mo |
| P11 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.50-1.00 |
1.00-1.50 |
0.44-0.65 |
| P22 |
0.05-0.16 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
1.90-2.60 |
0.87-1.13 |
| P5 |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
4.00-6.00 |
0.45-0.65 |
| P9 |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.25-1.00 |
8.00-10.00 |
0.90-1.10 |
| P91 |
0.08-0.12 |
0.30-0.60 |
0.020/0.010 |
0.020/0.010 |
0.02-0.50 |
8.00-9.50 |
0.85-1.05 |
| P92 |
0.07-0.13 |
0.30-0.60 |
0.020/0.010 |
0.020/0.010 |
≤0.50 |
8.50-9.50 |
0.30-0.60 |
Mechanical properties of A335 Alloy Steel Seamless Pipe
| Grade |
Tensile strength |
Yield strength |
Elongation |
| P11, P22, P5, P9 |
≥415 |
≥205 |
≥30/20 |
| P91 |
≥585 |
≥415 |
≥20 |
| P92 |
≥620 |
≥440 |
≥20 |
Typical Applications
-
Power Plant Main Steam Lines
-
Superheater Systems
-
Reheater Systems
-
High Temperature Process Piping
-
Petrochemical Plants
-
Oil Refineries
-
Chemical Processing Facilities
-
Industrial Boilers
-
Heat Recovery Systems
-
High Pressure Steam Pipelines
Frequently Asked Questions
1. What is ASTM A335 P9 seamless pipe used for?
ASTM A335 P9 seamless pipe is primarily used in high-temperature and high-pressure piping systems for power plants, refineries and petrochemical facilities.
2. What is the difference between ASTM A335 P9 and P91?
P91 contains additional alloying elements such as vanadium and niobium, providing higher creep strength than P9 for more demanding elevated-temperature applications.
3. What heat treatment is applied to ASTM A335 P9 pipe?
ASTM A335 P9 seamless pipes are typically supplied in the normalized and tempered condition to achieve the required mechanical properties.
4. Can ASTM A335 P9 pipe be welded?
Yes. It is suitable for welding using qualified procedures, with preheating and post-weld heat treatment applied as required by the project specification.
5. What inspection documents are available?
EN 10204 3.1 MTC, chemical analysis, mechanical test reports, hydrostatic testing and third-party inspection can be provided upon request.
