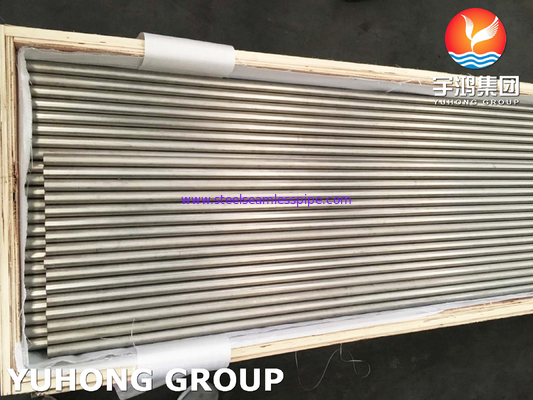

Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	100 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (337)

Stainless Steel Seamless Tube (327)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (38)

Needle Tube (163)

Fin Tube (711)

Heat Exchanger (31)

Heat Exchanger Tube (468)

Heat Exchanger Tube Bundle (50)

Heat Exchanger Tubesheet (126)

Heat Exchanger Baffle (39)

Air Cooler (13)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (104)

Copper Alloy Tube (251)

Alloy Steel Tube (212)

Titanium Tube (21)

Bright Annealed Tube (174)

Boiler Tube (153)

Steel Fitting (865)

Steel Flange (663)

Others (407)

Cladding Parts (9)

Detailed Product Description

STANDARD:	ASTM B338 / ASME SB338	MATERIAL:	Titanium Grade 7 (UNS R52400)
Certification:	ISO/CE/SGS	Shape:	Round Tube
Technique:	Seamless	Surface:	Annealed & Pickled / Polished
Package:	Export Seaworthy Wooden Case	Application:	Heat Exchanger / Condenser / Desalination Plant
Highlight:	Titanium Alloy Pipe Asme Sb338 , Astm A338 Gr.7 Seamless Tubes , Astm A338 Titanium Alloy Pipe

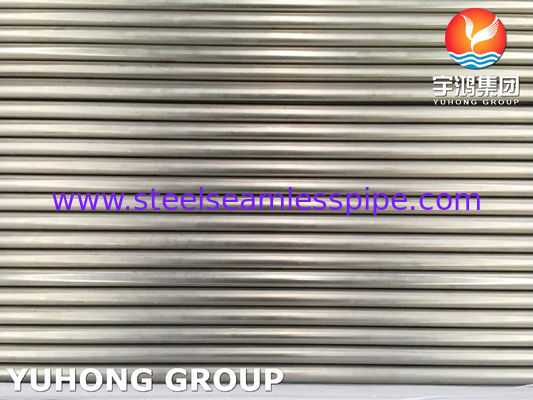

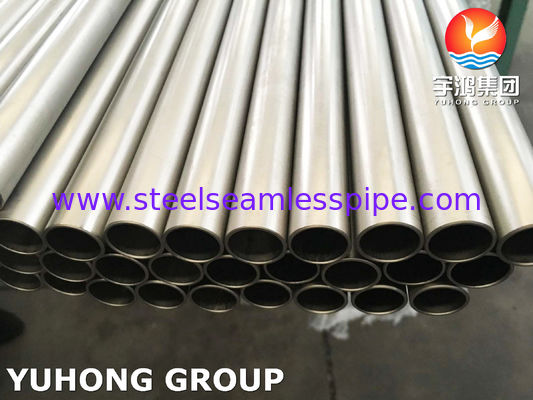

ASME SB338 Grade 7 Titanium Seamless Tube | UNS R52400 Heat Exchanger Tubing

ASME SB338 ASTM B338 Grade 7 Titanium Seamless Tube

ASME SB338 Grade 7 titanium seamless tube is manufactured from UNS R52400 titanium alloy containing palladium, providing significantly enhanced corrosion resistance compared with commercially pure titanium grades.

Grade 7 titanium tubing combines excellent strength-to-weight ratio, outstanding resistance to chloride corrosion, pitting and crevice attack, making it an ideal choice for heat exchangers, condensers, desalination plants, chemical processing equipment and offshore engineering applications.

Manufactured in accordance with ASTM B338 and ASME SB338 standards, the tubes are supplied in seamless construction with strict dimensional tolerances and comprehensive inspection requirements. Various sizes, wall thicknesses and lengths can be customized to meet specific project demands.

With superior performance in aggressive environments, Titanium Grade 7 seamless tubes help extend equipment service life while reducing maintenance costs and downtime.

Product Advantages

Superior corrosion resistance in acidic and chloride environments
Palladium-enhanced titanium alloy for extended service life
Excellent resistance to pitting and crevice corrosion
High strength-to-weight ratio
Outstanding heat transfer performance
Suitable for seawater and desalination systems
Long-term reliability in aggressive chemical environments
Available in customized dimensions and lengths

Parameter	Specification
Product Name	Titanium Grade 7 Seamless Tube
Standard	ASTM B338 / ASME SB338
Material Grade	Grade 7
UNS Number	R52400
Material Type	Titanium-Palladium Alloy
Manufacturing Process	Seamless
Outside Diameter	6mm – 114mm
Wall Thickness	0.5mm – 10mm
Length	Up to 18000mm
Surface Finish	Pickled, Polished, Annealed
End Type	Plain End
Inspection	PMI, UT, Hydrostatic Test
Certification	EN10204 3.1 / ISO 9001
Origin	China

ASME SB338 GR.7 CHEMICAL COMPOSITION

Element	Ti Alloy Gr.7
C	0.08 max
Fe	0.30 max
Ti	Bal
H	0.015 max
Pd	0.12 - 0.25
O	0.25 max
Al	-
N	0.03 max

ASME SB338 GR.7 MECHANICAL PROPERTIES

Element	Titanium Alloy Gr7
Density	0.163 lb/in3
Tensile Strength	50
Yield Strength (0.2%Offset)	40/65
Elongation	20%

ASME SB338 GR.7 PHYSICAL PROPERTIES

Beta Transus (F ± 25)		1675
Coefficient of Thermal Expansion (10-6in./in./F)	32-212	4.8
	32-600	5.1
	32-1000	5.4
	32-1200	5.6
	32-1500	5.6
Density (lbs./cu. in.)		0.163
Melting Point, Approx (F)		3020
Electrical Resistivity at Room Temp. (Microhms cm)		56
Modulus Elasticity – Tension (106 psi)		14.9
Modulus Elasticity – Torsion (106 psi)		6.5
Thermal Conductivity		9.5 at Room Temperature
(Btu/hr/sq. ft./F/ft.)
Specific Heat (Btu/lb./F) at Room Temp.		0.124
Weldability		Good
Annealing Temp. (F)	Full	1300°/30 Min. – 2 Hrs,; Air Cool
	Stress Relief	1000-1100°/30 Min.; Air Cool
Forging* Temp. (F)	Blocking	1600-1700°
	Finishing	1500-1600°
Available Mill Products		Tube, Tubing
Typical Application		For corrosion resistance in the chemical industry where media is mildly reducing
		or varies between oxidizing and reducing.
Industry Specifications		ASTM

		F338 Grade 7
