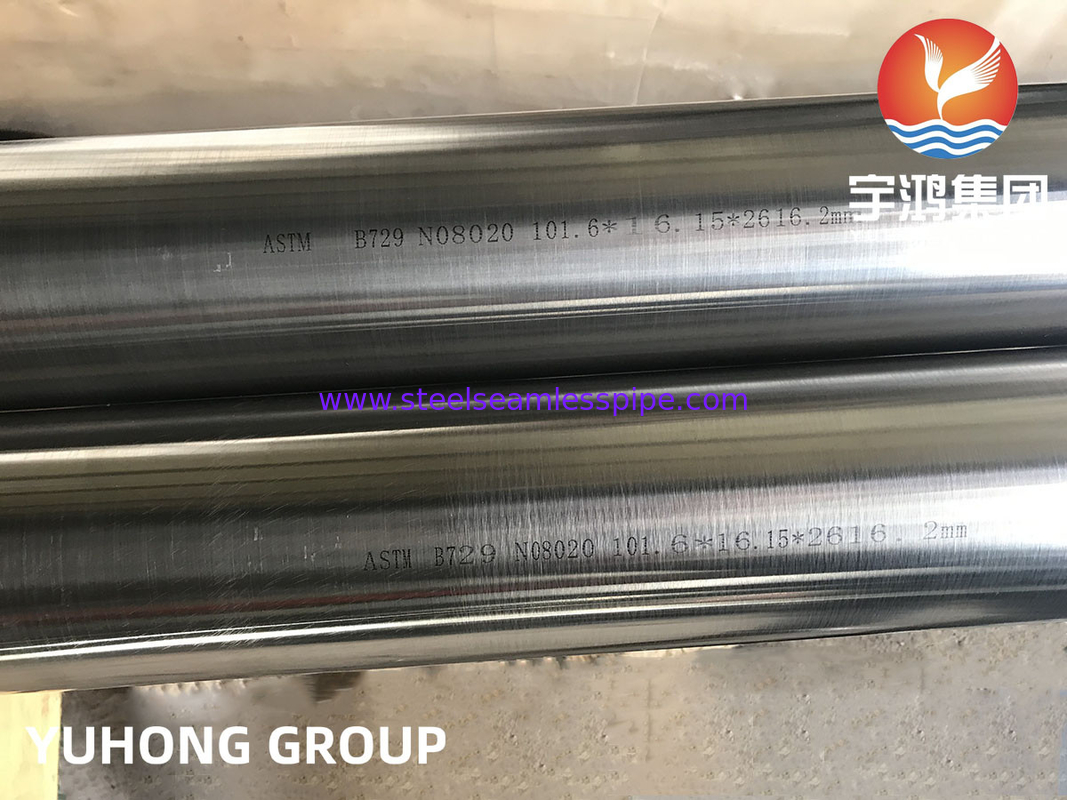

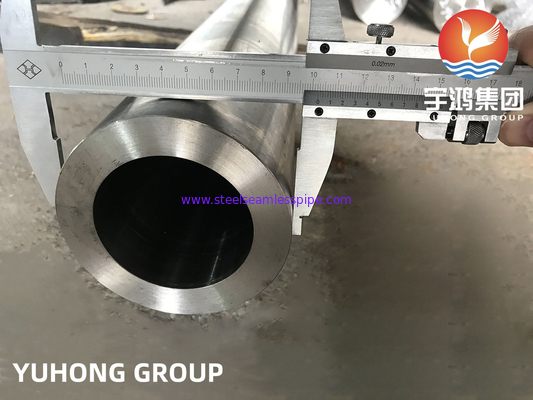

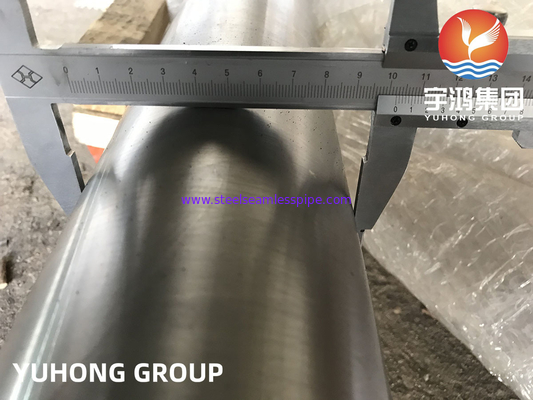

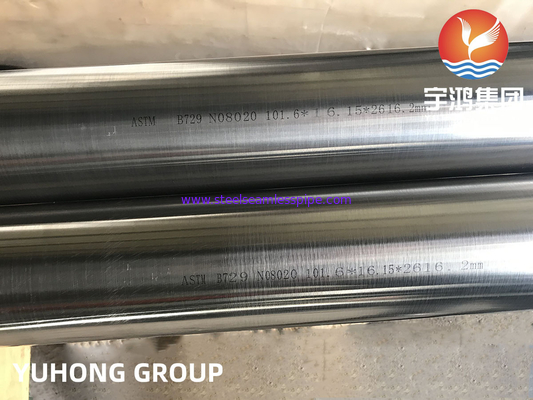

ASTM A729 UNS NO8020 / ALLOY 20 Nickel Alloy Steel Seamless Pipe

ASTM A729 UNS NO8020 / ALLOY 20 Nickel Alloy Steel Seamless Pipe

  • ASTM A729 UNS NO8020 / ALLOY 20 Nickel Alloy Steel Seamless Pipe
  • ASTM A729 UNS NO8020 / ALLOY 20 Nickel Alloy Steel Seamless Pipe
  • ASTM A729 UNS NO8020 / ALLOY 20 Nickel Alloy Steel Seamless Pipe
ASTM A729 UNS NO8020 / ALLOY 20 Nickel Alloy Steel Seamless Pipe
Product Details:
Place of Origin: China
Brand Name: Yuhong
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B729 UNS N08020
Payment & Shipping Terms:
Minimum Order Quantity: 100 kgs
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7 days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Name: NICKEL ALLOY STEEL 8020 SMLS PIPE Type: SEAMLESS / ERW / WELDED/ FABRICATED
Inspection: ET, HT, UT , PMI End: Plain End, Bevel End, Threaded
High Light:

ASTM A729 Steel Seamless Pipe

,

Nickel Alloy Steel Seamless Pipe

,

UNS NO8020 Steel Seamless Pipe



ASTM A729 UNS NO8020/ALLOY 20 Nickel Alloy Steel Seamless Pipe



ASTM B729 UNS N08020 Alloy 20 2.4660 Nickel Alloy Steel Seamless Pipe Annealed and Pickled. BE. PE.



Alloy 20 Tube / Tubing / U-Bend Tube is made up of a nickel chromium molybdenum alloy. It has high nickel content of 32-38%. It is used mostly for applications that involve sulfuric acid. We are a leading supplier and manufacturer of alloy 20 tubing. Alloy 20 Nickel Tubing has nickel, chromium, carbon, copper, molybdenum, manganese, silicon, niobium and other elements in its chemical composition. The copper content is mostly responsible for the sulfuric acid resistance. There are seamless and welded tubes. The UNS N08020 Seamless tube can range from 0.375 inches to 1 inches in outer diameter where the welded tube can range from 0.125 inches to 1 inches. Also the wall thickness varies to seamless and welded pipes.



High Pressure Alloy 20 Nickel Tubing Supplier, Check Weight Chart of UNS N08020 Seamless tube

The welded tubes can have from 0.35 inches to 0.109 inches of wall thickness while the seamless ones have only up to 0.065 inches. The ASTM B729 alloy 20 tubes are of the welded pipe specification. With annealing, the minimum tensile strength of the material is at 551MPa and the minimum yield strength is at 241MPa. The alloy 20 seamless tubing has a high melting point of 1443 degrees Celsius. This allows the tubes to be used in high temperature applications. The ASME SB729 Tube is meant for high temperature, high pressure tubing. The copper content along with the high nickel content allows the tubes to operate under high temperatures with high acidic contents. Sometimes, the heat exchanger tubes of this grade are called the Alloy 20 U Tube because they are manufactured in the U shape.



Thickness 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Outer Diameter 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB
Type Seamless / ERW / Welded / Fabricated / CDW
Form Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length Single Random, Double Random & Required Length
End Plain End, Beveled End, Treaded.





Sizes of ASTM B729 Alloy 20 Tubes

  • Alloy 2.4660 ERW Tubes : 1/2″ NB – 24″ NB
  • UNS N08020 Seamless Pipe : 1/2″ NB – 16″ NB
  • Alloy UNS N08020 EFW Pipe : 6″ NB – 100″ NB
  • Carpenter 20 Tubes : 1/8″NB TO 30″NB IN



Chemical Equation of 20 Alloy Welded Tube

Alloy 20 Ni C Mo Mn Si Fe Cu S P Cr
32 - 38 0.02 max 2 - 3 1 - 2 0.7 max Bal 3 - 4 0.005 max 0.02 max 19 - 21



Mechanical Behaviour of ASME SB729 Alloy 20 Tubing

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.1 g/cm3 1443 °C (2430 °F) Psi - 35000 , MPa - 241 Psi - 80000 , MPa - 551 30 %



Equivalent of Carpenter 20 Electropolish Tube

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
Alloy 20 N08020 2.4660 Z2NCUD31-20AZ NiCr20CuMo - - -





ASTM A729 UNS NO8020 / ALLOY 20 Nickel Alloy Steel Seamless Pipe 0
