Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Yuhong |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B366 Monel 400 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, T/T |
| Material: | Monel 400 | Type: | Butt-welded |
|---|---|---|---|
| Degree: | 45/90/180 | ||
| High Light: | ASTM B366 SR Elbow,Butt Welding LR Elbow,ASTM B366 LR Elbow |
||

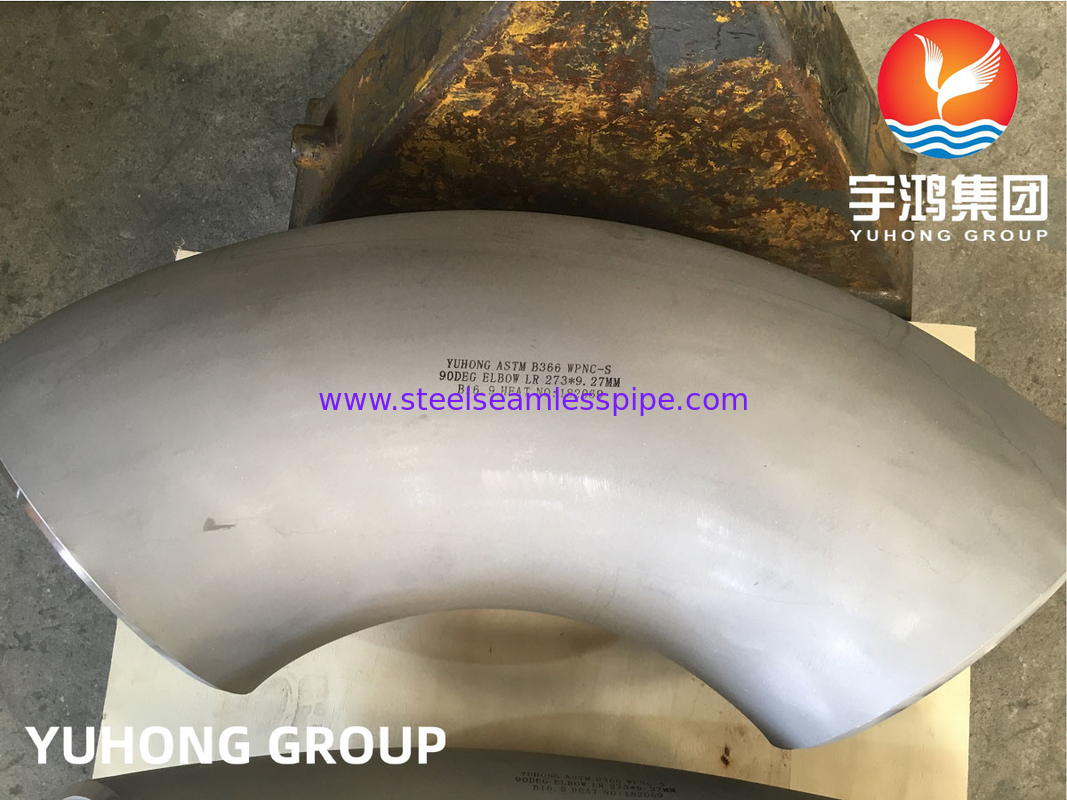

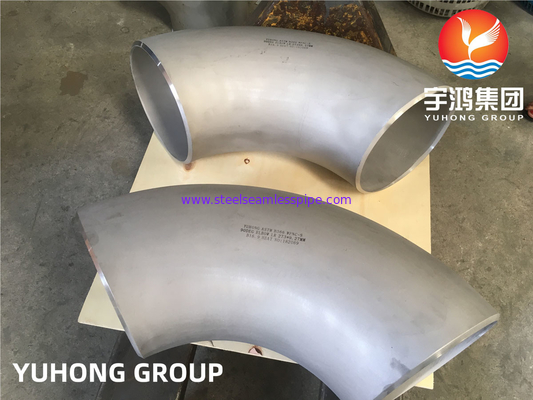

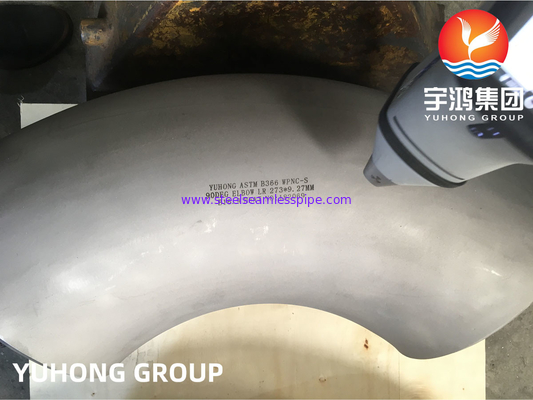

ASTM B366 Monel400 Fitting, 90DEG. ELBOW, 45 DEG. ELBOW, 180 DEG. BEND PIPE, TEE, CAP
Detailed Product Description
| Grade | UNS | W.Nr. | Trade Name |
| Inconel 600 | N06600 | 2.4816 | Inconel 600®, Nickelvac® 600, Ferrochronin® 600 |
| Inconel 601 | N06601 | 2.4851 | Inconel 601®, Pyromet® 601, Nicrofer® 601 |
| Inconel 617® | N06617 | 2.4663 | Inconel 617®, Nicrofer® 617 |
| Inconel 625 | N06625 | 2.4856 |
Inconel 625®, Chornin® 625, Altemp® 625, Nickelvac® 625, Haynes® 625 Nicrofer® 6020 |
| Inconel | N07718 | 2.4668 | Inconel 718®, Nicrofer® 5219, Alvac® 718, Haynes® 718, Altemp® 718 |
| Inconel X 750 | N07750 | 2.4669 |
Inconel X750®, Haynes X750®, Pyromet® X750, Nickelvac®X750, Nicorros® 7016 |
| Incoloy 800 | N08800 | 1.4876 | Incoloy 800®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220 |
| Incoloy 800H | N08810 | 1.4876 | Incoloy 800H®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220 |
| Incoloy 800HT | N08811 | 1.4876 | Incoloy 800HT®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220 |
| Incoloy 825 | N08825 | 2.4858 | Incoloy 825®, Nickelvac® 825, Nicrofer 4241® |
FORM:
Nickel Alloy Butt Weld Fittings
Standard: ASTM / ASME SB 366
Grade: UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20) CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276).
ALLOY 625 _ UNS N06625
common trade names
Inconel 625®, Chronin® 625, Altemp® 625, Haynes® 625, Nickelvac® 625, Nicrofer® 6020
Inconel ® 625 is a nonmagnetic, corrosion and oxidation resistant, nickel-base alloy. It has high strength and toughness in the temperature range cryogenic to 2000°F (1093°C) which is derived largely from the solid solution effects of the refractory metals, columbium and molybdenum, in a nickel-chromium matrix. Alloy 625 has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions.
Typical applications for Alloy 625 have included heat shields, furnace hardware, gas turbine engine ducting, combustion liners and spray bars, chemical plant hardware and special seawater applications.
Available forms are seamless pipe, welded pipe, seamless tube, welded tube, bar, wire, sheet, plate, forgings, pipe fittings and flanges.
| common trade names | |||||||||||||||
| C | MN | P | S | Si | Cr | Ni | Mo | Cu | Co | Cb+Ta | Ti | Al | Fe | Nb | Other |
| .10 | .50 max | .015 max |
.015 max |
.50 max |
20.0 -23.0 |
58.0 min |
8.0 - 10.0 |
1.0 max |
0.40 max |
0.40 max |
5.0 max |
3.15 - 4.15 |
|||
| Specifications for Inconel 625 ® (UNS N06625) | ||||||
| International Specifications | Sheet/Plate |
Round Bar /Wire |
Pipe | Tube | Fittings | Forgings |
|
BS 3072, BS 3074, BS 3076, NA 21 DIN 17744, DIN 17750, DIN 17751, DIN 17752, DIN 17754. Werkstoff Nr. 2.4856 AFNOR NC 22 D Nb |
ASME SB-443 |
ASME SB-446 |
ASME SB-444 ASME SB-829 ASME SB-775 ASME SB-705 |
ASME SB-444 ASME SB-829 ASME SB-751 ASME SB-704 AMS 5581 |
ASME SB-366 |
ASME SB-564 |
Nickel alloy steel:
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;
Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;
Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
