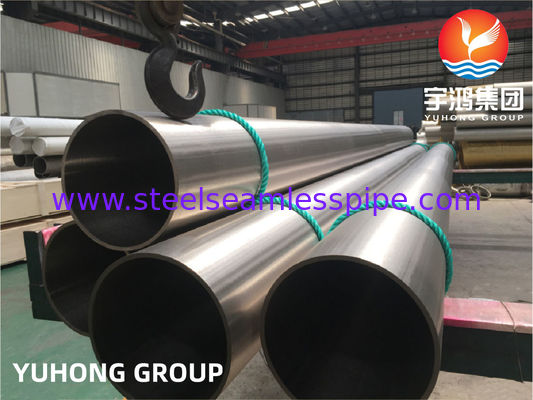

ASTM B165 Monel 400 Seamless Pipe Nickel Alloy Pipe Corrosion Resistant High Temperature Strength for Marine Engineering

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B165 N04400

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80 days
Payment Terms:	T/T,L/C
Supply Ability:	1500 Tons Per Month

Contact Now

All Products

Stainless Steel Seamless Pipe (331)

Stainless Steel Seamless Tube (321)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (152)

Fin Tube (699)

Heat Exchanger (25)

Heat Exchanger Tube (457)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (124)

Heat Exchanger Baffle (39)

Air Cooler (10)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (272)

Nickel Alloy Tube (96)

Copper Alloy Tube (247)

Alloy Steel Tube (208)

Titanium Tube (20)

Bright Annealed Tube (172)

Boiler Tube (151)

Steel Fitting (856)

Steel Flange (655)

Others (404)

Cladding Parts (8)

Detailed Product Description

Thickness:

0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm

Highlight:

ASTM B165 SMLS Pipe

Nickel Alloy SMLS Pipe

Hot Rolled SMLS Pipe

ASTM B165 Monel400 N04400 Seamless Pipe Nickel Alloy Steel Pipe

Monel 400 is a solid solution alloy consisting of nickel and copper. While the nickel content is about 67%, the copper content in the Monel 400 pipe chemistry is about 23%. Typical of most nickel-containing alloys, this grade tends to have high strength even at high temperatures. Although Monel 400 seamless tubing is not recommended for use in temperatures above 1000°F.

The melting point of this Monel alloy is between 2370°F - 2460°F. The high melting point indicates better dimensional stability of ASTM B165 Alloy 400 seamless pipe, especially since high temperatures often cause changes in the flow of metal molecules, which alter their physical appearance. The marine engineering industry prefers ASTM B725 UNS N04400 welded pipe for a variety of operational purposes because of its higher copper content. Copper is known for its rich properties as an alloying agent in components such as Monel 400 rectangular tubes, including resistance to seawater or saline solutions.

Another feature that makes 400 Monel alloy square tube attractive in the marine industry is the alloy's low corrosion rate in fast-flowing brackish water. These properties, combined with the excellent resistance to stress corrosion cracking found in many freshwater sources, make this alloy indispensable.

Material Specifications

Material: UNS N04400

ASTM B165 UNS N04400 Chemical Composition

Monel400	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
63.0	0.3	/	2.00	0.5	2.5	/	0.024	/	/	/

ASTM B167 UNS N06601 Mechanical Properties

Density	Melting Point	Yield Strength (0.2% Offset)	Tensile Strength	Elongation
8.8 g/cm³	1350 °C (2460 °F)	Psi - 35,000, MPa - 240	Psi - 80,000, MPa - 550	40 %

Equivalent Material Grades

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
Monel400	N04400	2.4360	NU-30M	NiCu30Fe	NW 4400	NA 13	МНЖМц 28-2,5-1,5

Product Specifications

Size: ½" to 6" NB Sch 10s, 40s, & 80s, 160s
Wall Thickness: 0.1 - 60 mm
Monel Alloy 400 Pipes Length:
- Single Random Length: 5 to 7 meters
- Double Random Length: 10 to 12 meters
Surface Finish: Cold Finish, Bright, Polished, Annealing, Pickling, or as per client requirements
Standard: JIS, AISI, ASME, ASTM, AMS, GB, DIN, EN, GOST
Manufacturing Types: Seamless, Welded, ERW, EFW
Manufacturing Shapes: Round, Square, Rectangle, Box Section
Manufacturing Technology: Hot / Cold Formed
Inspection & Test Reports: EN 10204 3.1, Mill Test Certificates, PMI Test Reports, Chemical Reports, Mechanical Reports, NABL Approved Lab Reports, Visual Inspection Reports, Destructive and Non Destructive Test Reports, Third Party Inspection
Technique: Cold Rolled, Hot Rolled
