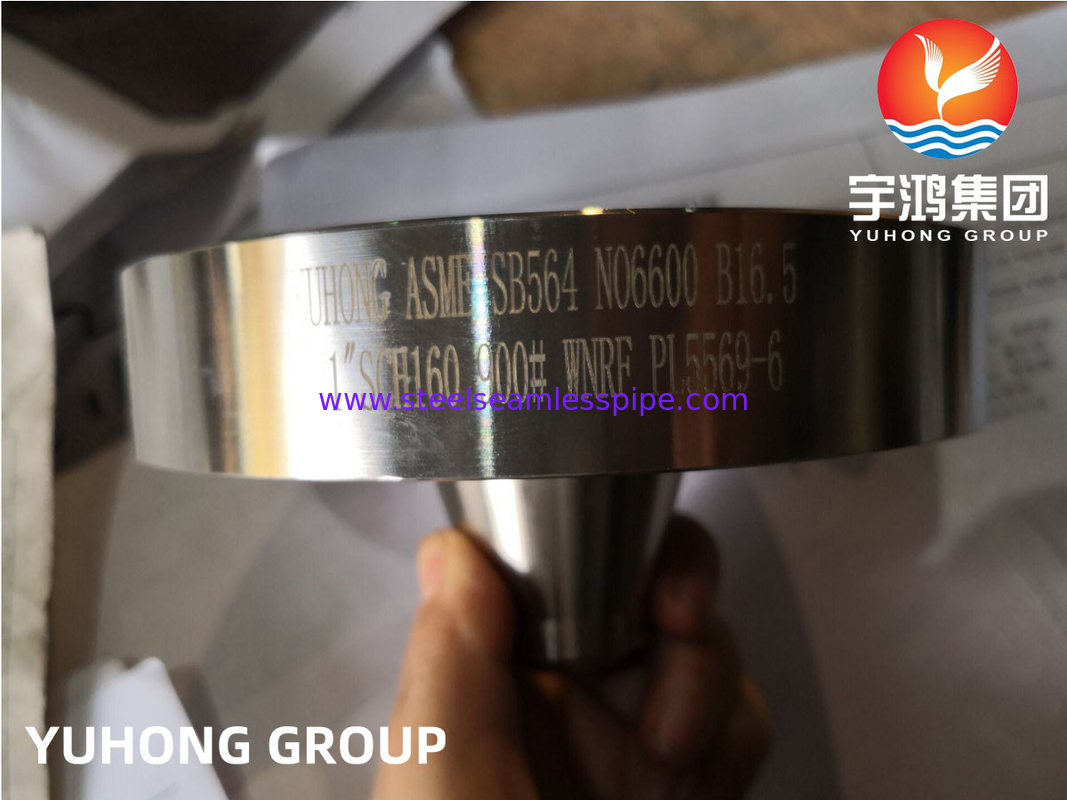

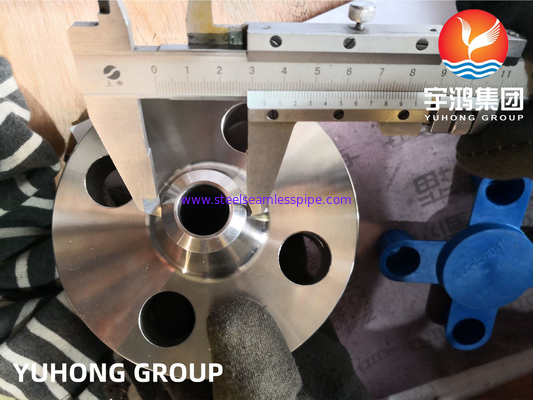

SB564 NO6600 INCONEL/ALLOY 600 WN RF FLANGE B16.5 APPROVED

SB564 NO6600 INCONEL/ALLOY 600 WN RF FLANGE B16.5 APPROVED

  • SB564 NO6600 INCONEL/ALLOY 600 WN RF FLANGE B16.5 APPROVED
  • SB564 NO6600 INCONEL/ALLOY 600 WN RF FLANGE B16.5 APPROVED
  • SB564 NO6600 INCONEL/ALLOY 600 WN RF FLANGE B16.5 APPROVED
SB564 NO6600 INCONEL/ALLOY 600 WN RF FLANGE B16.5 APPROVED
Product Details:
Place of Origin: China
Brand Name: Yuhong
Certification: ABS, BV, LR, DNV, GL , KR, CCS, TUV, ISO, GOST
Model Number: SB564 NO6600
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: PLY-WOODEN CASE
Delivery Time: 7days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Type: Weld-Neck Flange, Lap Joint Flange, Blind Flang, Slip-On Flange,Thread Flange, Socket-Weld Flange, Orifice Flange, Spectacle Flange Face: FF , RF, & RT.J
Material Grade: INCONEL 600 , Alloy 600 , UNS NO6600
High Light:

forged flange

,

stainless steel flange

SB564 INCONEL600 / Alloy 600 Steel Flange WN RF 900 LBS B16.5



Weld Neck Flanges


Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.

We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.





Product Range:

WNRF Flanges Size : 1/8" NB TO 48"NB.

WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Stainless Steel WNRF Flanges: ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181

Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal

WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10

Value Added Services

  • Hot Dip Galvanizing ,
  • Epoxy Coating.

Test Certificate

Manufacturer Test Certificate as per EN 10204 / 3.1B

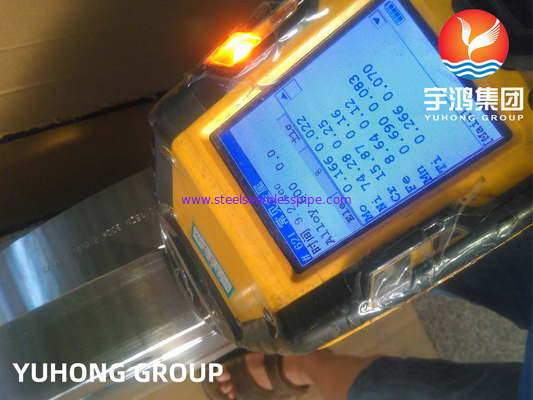

ASTM B564 Inconel® Alloy 600 Forged Flanges Chemical Composition



Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015 max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00

600 Inconel ASME SB564 Threaded / Screwed Flanges Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.47 g/cm3 1413 °C (2580 °F) 655 MPa, 95000 psi 310 MPa, 45000 psi 45 %
