Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Yuhong |
| Certification: | ABS, BV, LR, DNV, GL , KR, CCS, TUV, ISO, GOST |
| Model Number: | B564 NO6600 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PLY-WOODEN CASE |
| Delivery Time: | 7days |
| Payment Terms: | L/C, T/T |
| Type: | Weld-Neck Flange, Lap Joint Flange, Blind Flang, Slip-On Flange,Thread Flange, Socket-Weld Flange, Orifice Flange, Spectacle Flange | Face: | FF , RF, & RT.J |
|---|---|---|---|
| Material Grade: | INCONEL 600 , Alloy 600 , UNS NO6600 | ||
| High Light: | forged flange,stainless steel flange |
||

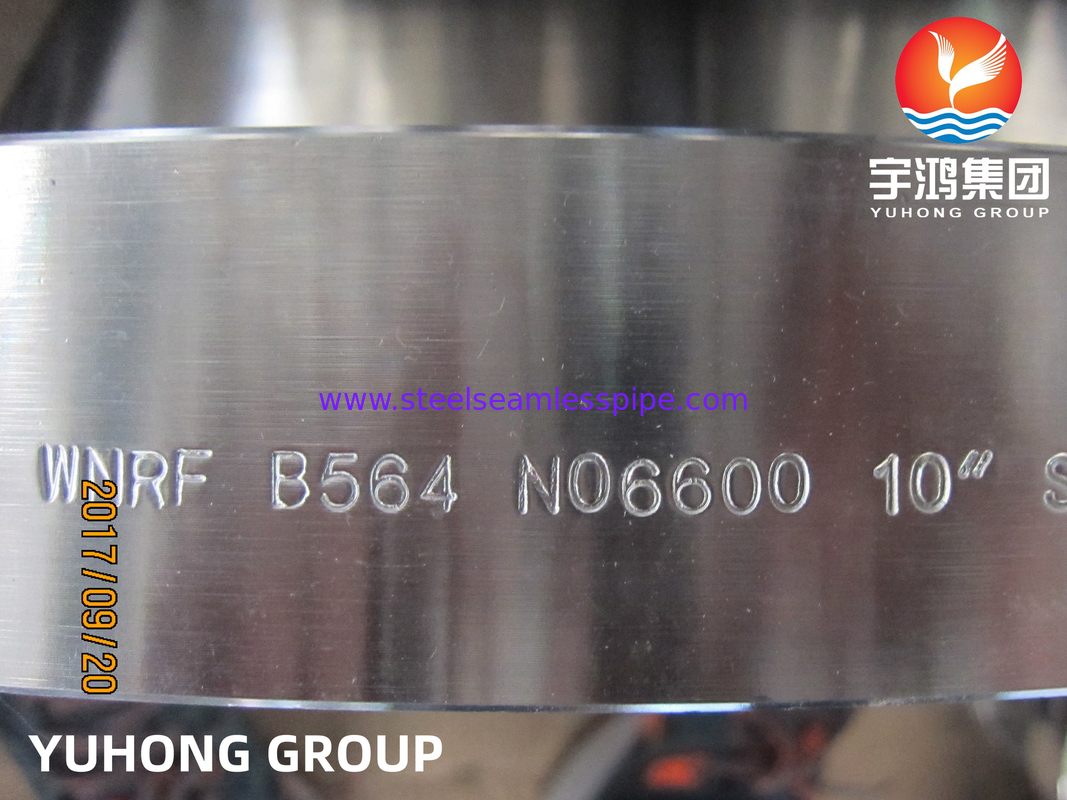

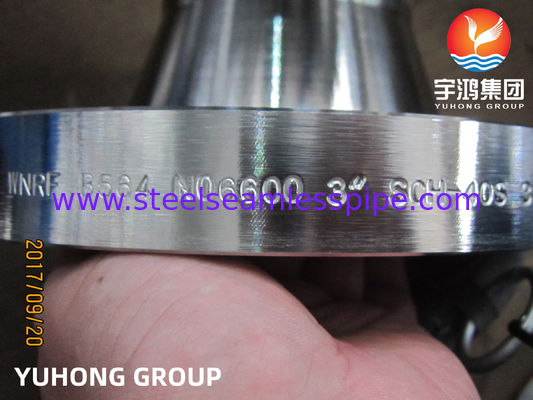

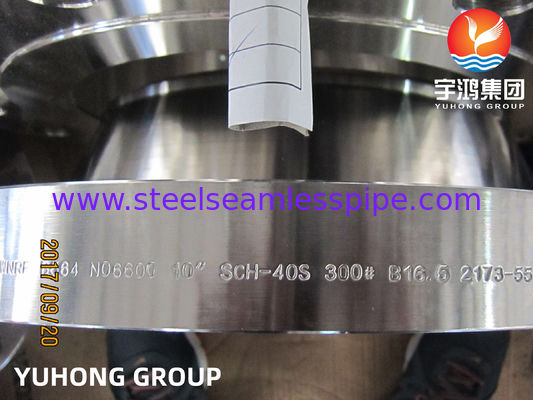

ASTM B564 INCONEL600 / Alloy 600 Steel Flange WN RF 900 LBS B16.5
|
Weld Neck Flanges
|
Product Range:
WNRF Flanges Size : 1/8" NB TO 48"NB.
WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel WNRF Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181
Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal
WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Value Added Services
Test Certificate
Manufacturer Test Certificate as per EN 10204 / 3.1B
ASTM B564 Inconel® Alloy 600 Forged Flanges Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
600 Inconel ASME SB564 Threaded / Screwed Flanges Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | 655 MPa, 95000 psi | 310 MPa, 45000 psi | 45 % |
