Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG SPECIAL STEEL |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B366 UNS N06625/DIN 2.4856 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CLIENT'S REQUIREMENT |
| Product Name: | NICKEL ALLOY BUTT WELD FITTING | Specification: | ASTM B366 |
|---|---|---|---|
| Material: | UNS N06625/DIN 2.4856 | Shape: | Bowl Shape |
| Technics: | Butt Weld | Application: | Aircraft Ducting Systems/Aerospace/Jet Engine Exhaust Systems |
| Outer Diameter(round): | As Per Client's Request | Surface Treatment: | Sand Blasting And Sand Rolling |
| High Light: | Stainless Steel Cap Butt Weld,Inconel 625 Steel End Caps,Bowl Shape Stainless Steel Pipe Caps |
||

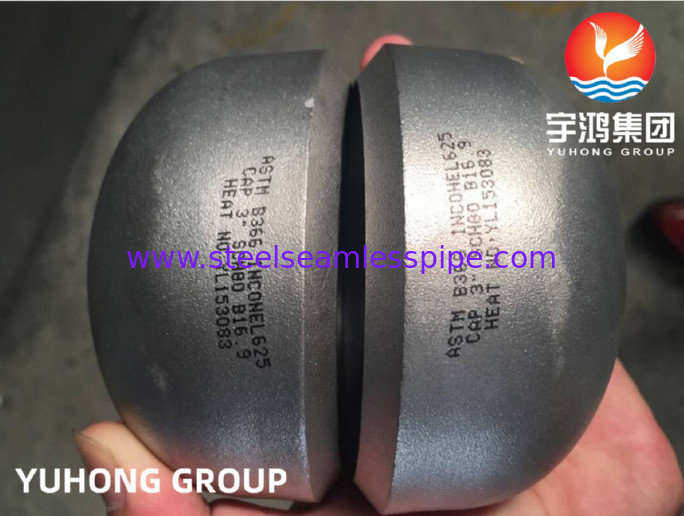

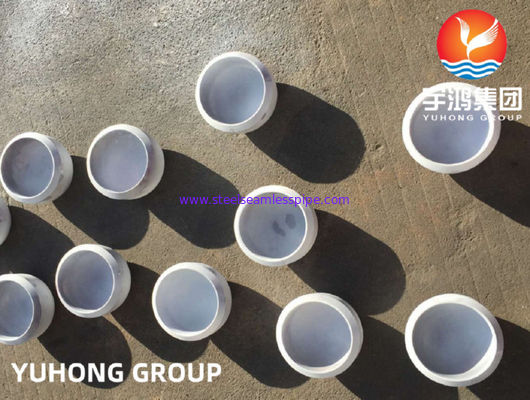

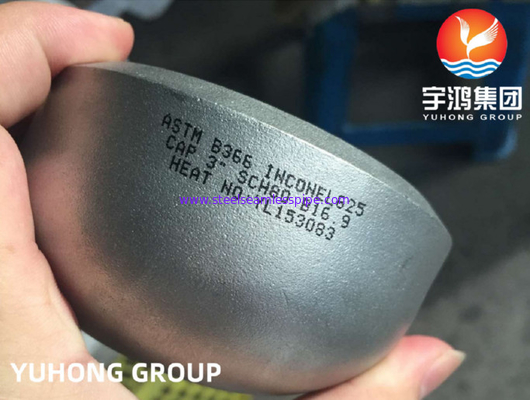

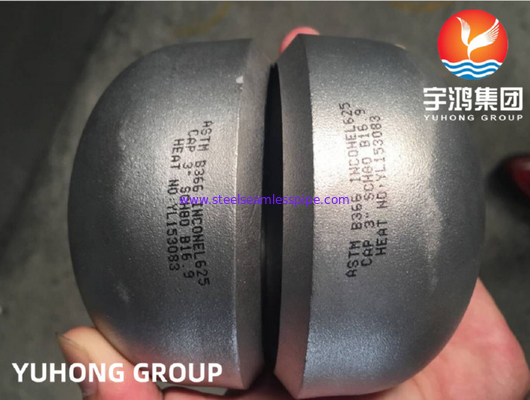

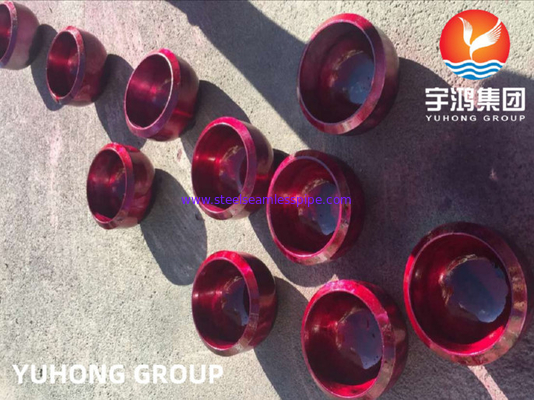

ASTM B366 INCONEL 625 CAP UNS NO6625 / DIN 2.4856 BUTT WELD FITTING B16.9 STANDARD
Overview
Inconel 625 is a corrosion and oxidation resistant nickel alloy that is used both for its high strength and outstanding aqueous corrosion resistance. Its outstanding strength and toughness is due to the addition of niobium which acts with the molybdenum to stiffen the alloy’s matrix. Alloy 625 has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions. This nickel alloy has excellent weldability and is frequently used to weld AL-6XN. This alloy resists a wide range of severely corrosive environments and is especially resistant to pitting and crevice corrosion. Some typical applications Inconel 625 is used in are chemical processing, aerospace and marine engineering, pollution-control equipment, and nuclear reactors.
ASTM B366/B366M-20 Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings
|
Pipe Smls |
Pipe Welded |
Tube Smls |
Tube Welded |
Sheet/Plate |
Bar |
Forging |
Fitting |
Wire |
|---|---|---|---|---|---|---|---|---|
| B444 | B705 | B444 | B704 | B443 | B446 | - | - | - |
|
Cr |
Ni |
Mo |
Co + Nb |
Ta |
Al |
Ti |
C |
Fe |
Mn |
Si |
P |
S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20.00-30.00 | Remainder | 8.0-10.0 | 1.0 max | 3.15-4.15 | .40 max | .40 max | .10 max | 5.0 max | .50 max | .50 max | .015 max | .015 max |
|
Temp° F |
Tensile (psi) |
.2% Yield (psi) |
Elongation in 2"(%) |
|---|---|---|---|
| 70 | 144,000 | 84,000 | 44 |
| 400 | 134,000 | 66,000 | 45 |
| 600 | 132,000 | 63,000 | 42.5 |
| 800 | 131,500 | 61,000 | 45 |
| 1000 | 130,000 | 60,500 | 48 |
| 1200 | 119,000 | 60,000 | 34 |
| 1400 | 78,000 | 58,500 | 59 |
| 1600 | 40,000 | 39,000 | 117 |
Applications
Chemical process equipment
