| Place of Origin: | China |
| Brand Name: | YUHONG SPECIAL STEEL |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM B366 HASTELLOY C22/UNS NO6602 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CLIENT'S REQUIREMENT |
| Standard: | ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 Etc | Name: | WELDOLET/OLETS FITTING |
|---|---|---|---|
| Material: | Nickel Alloy HASTELLOY-C22 | Technics: | Forged |
| Size: | 1/2" ~ 60" | Pressure: | 2000#,3000#,6000#,9000# |
| High Light: | C22 Hastelloy Insert Weldolet,Forged Insert Weldolet,Nickel Alloy Pipe Olet Fittings |
||

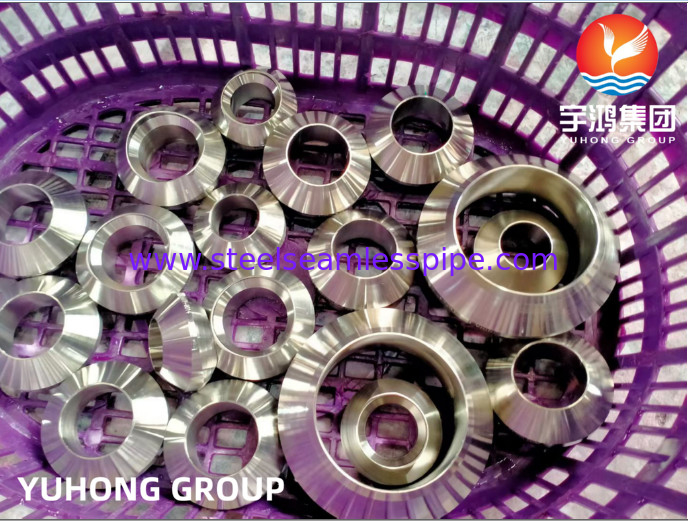

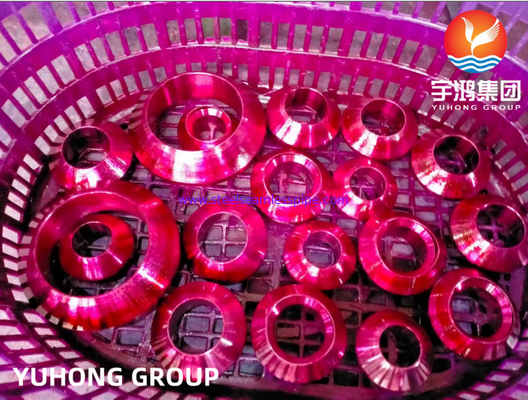

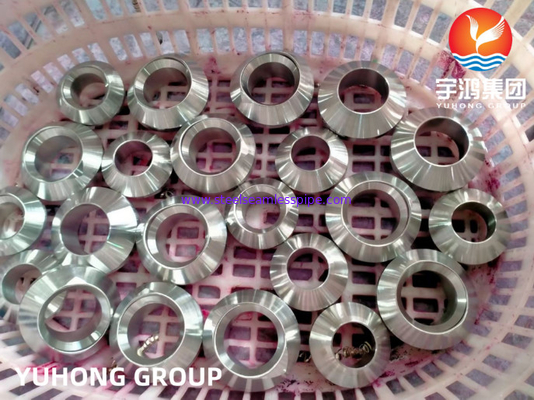

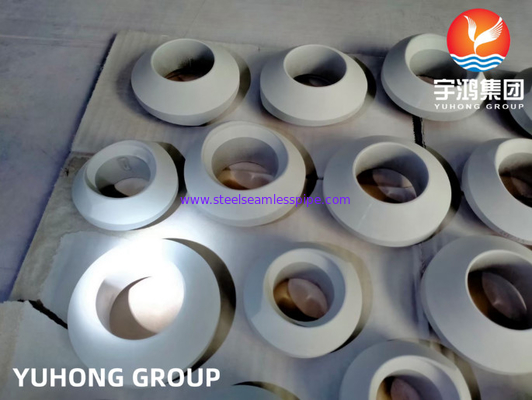

Weldolet is the most common among all pipe olet. It is ideal for high pressure
weight application, and is welded onto the outlet of the run pipe. The end are
bevelled to facilitate this process, and therefore the weldolet is consider a
butt weld fitting.Weldolet is a branch butt weld connection fitting that is
adhered to outlet pipe to minimizes stress concentrations. And it provides overall
reinforcement.Normally it has the same or a higher schedule than the run pipe
schedule, and offers a variety of forged material grades, such as ASTM A105, A350, A182 etc.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | NiCr21Mo14W |
|
Specifications |
ASTM B366 / ASME SB366 |
|---|---|
|
Olets Size |
1/8"-4" (DN6-DN100) |
|
Olets Dimensions |
ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc |
|
Olets Connect Type |
Welded, threaded, BW, SW |
|
Specialized manufacturer of |
Weldolets, Threadolets, Sockolets, Elbolets, Elbolets, Nippolets, Lateral Outlet, Coupolet, Flexolet, Sweepolet, Brazolet |
|
Test Certificates |
EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
|
Olets uses & application |
|
|
Material Test Certificates (MTC) for ASTM B366 Hastelloy C22 Olets as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
|
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
