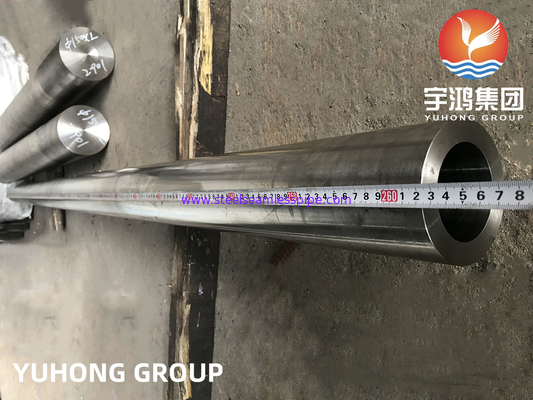

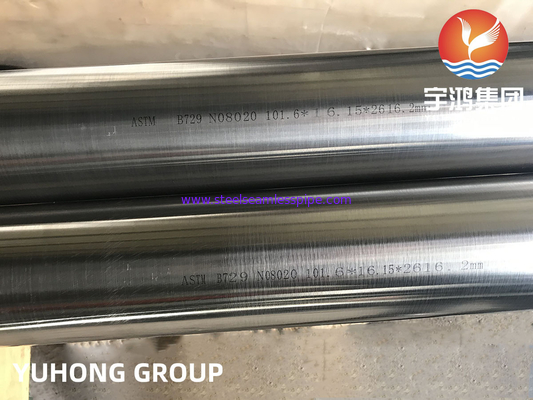

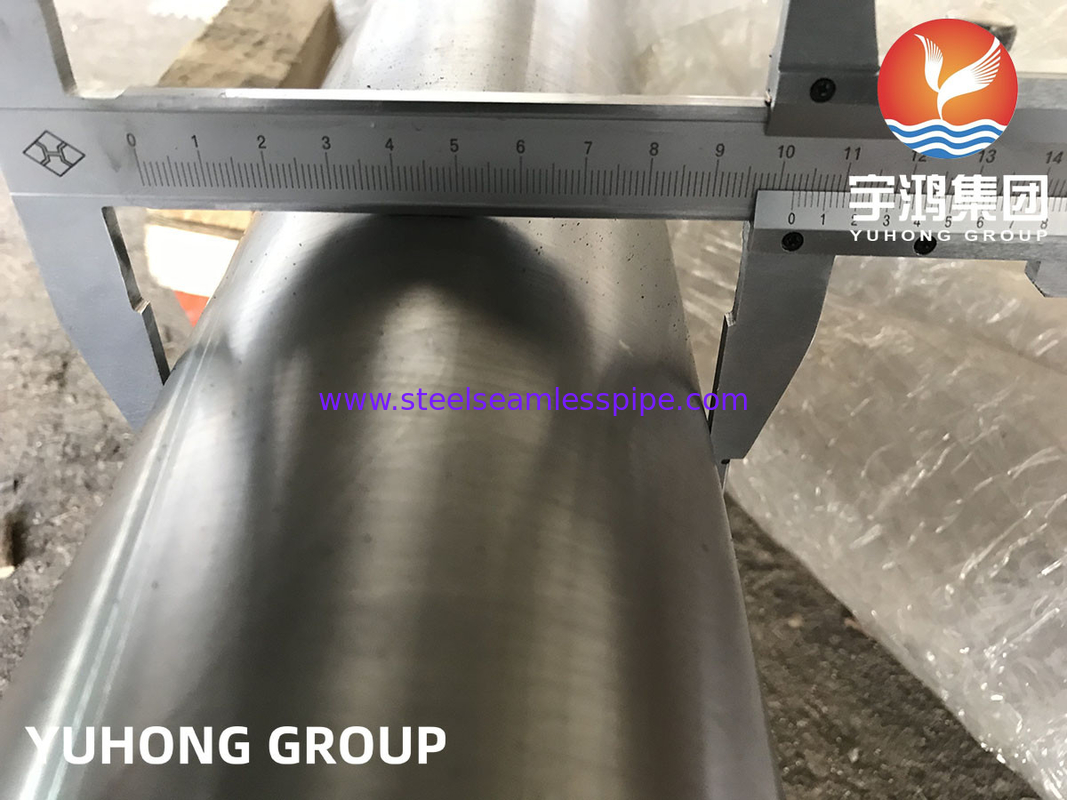

ASTM B729 NO8020/ 2.4660/Alloy 20 100% ET HT UT

ASTM B729 NO8020/ 2.4660/Alloy 20 100% ET HT UT

  • ASTM B729 NO8020/ 2.4660/Alloy 20 100% ET HT UT
  • ASTM B729 NO8020/ 2.4660/Alloy 20 100% ET HT UT
  • ASTM B729 NO8020/ 2.4660/Alloy 20 100% ET HT UT
ASTM B729 NO8020/ 2.4660/Alloy 20 100% ET HT UT
Product Details:
Place of Origin: China
Brand Name: Yuhong Group
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B729 ALLOY20 (NO8020 / 2.4660 )
Payment & Shipping Terms:
Minimum Order Quantity: 100 kgs
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle
Delivery Time: 7 days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Standard: ASTM B729, ASME SB729 Material Grade: ALLOY20 /NO8020 / 2.4660
Surface: Pickled And Annealed, Bright Annealed, Polished Application: Heat Exchangers
High Light:

Heat Exchangers Alloy 600 Pipe

,

HT Alloy Steel Pipe

,

Pickled Alloy Seamless Pipe

Hastelloy Pipe ASTM B729 ALLOY20 ( NO8020 / 2.4660 ) 2" SCH40S 6M 100% ET / HT/ UT





YUHONG GROUP deal with Stainless/Duplex/ Nickel steel seamless pipe and tube already more than 10 years, every year sell more than 80000 tons of Stainless/Duplex/ Nickel steel seamless pipe and tube. Our client already cover more than 45 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc. ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS





Alloy 20



Alloy 20 was designed specifically to withstand sulfuric acid. Its nickel, chromium, molybdenum and copper levels all provide excellent general corrosion resistance. Restricted carbon plus columbium stabilization permits welded fabrications to be used in corrosive environments, normally without post-weld heat treatment. At 33% nickel, Alloy 20 has practical immunity to chloride stress corrosion cracking. This alloy is often chosen to solve SCC problems, which may occur with 316L stainless.

Chemistry

  Ni Cr Mo Mn Cu Si C S P Cb+Ta Fe
MIN 32.5 19.0 2.0 - 3.0 - - - - 8.0 x C 1.0 -
MAX 35.0 21.0 3.0 2.0 4.0 1.0 0.06 0.035 0.035 - Balance

Specifications

ASME SA 240, ASME SB 366, ASME SB 463
ASTM A 240, ASTM B 366
ASTM B 463
ASTM B 473
EN 2.4660
UNS N08020
Werkstoff 2.4660



Inventory

Alloy 20 Coil, Alloy 20 Plate, Alloy 20 Sheet, Alloy 20 Weld Wire, Alloy20 Pipe , Alloy20 Tube , Alloy 20 Flange , Alloy20 Fitting

Features

  • Excellent resistance to hot sulfuric acid
  • Resistant to intergranular corrosion in the as-welded condition
  • Chloride stress corrosion cracking resistance

Applications

  • Sulfuric acid pickling tanks, racks and heating coils
  • Phosphate coating drums and racks
  • Heat exchangers
  • Bubble caps
  • Process piping
  • Mixing tanks
  • Chemical and petroleum process equipment

Physical Properties

Density: 0.278 lb/in3 annealed
Melting Point: 2525-2630°F
Electrical Resistivity: 651 Ohm-circ mil/ft

Temperature, °F 70 212 392 572 752 842 932
Coefficient* of Thermal Expansion, in/in°F x 10-6 - 8.16 8.37 8.62 8.62 8.84 8.91
Thermal Conductivity
Btu • ft/ft2 • hr • °F
6.7 7.57 8.56 9.53 10.5 - -
Modulus of Elasticity, Dynamic psi x 106 28 - - - - - -

* 70°F to indicated temperature.

Mechanical Properties

Minimum Specified Properties, Asme Sb-688 Plate

Ultimate tensile strength, ksi 80
0.2% yield strength, ksi 35
Elongation, % 30
Hardness MAX, Brinell 217


Typical Tensile Properties, Bar

Temperature, °F 70
Ultimate Tensile Strength, ksi 91
0.2% Yield Strength, ksi 48
Elongation, % 45
Charpy Impact V-notch, ft-lbs 200

ASTM B729 NO8020/ 2.4660/Alloy 20 100% ET HT UT 0ASTM B729 NO8020/ 2.4660/Alloy 20 100% ET HT UT 0
