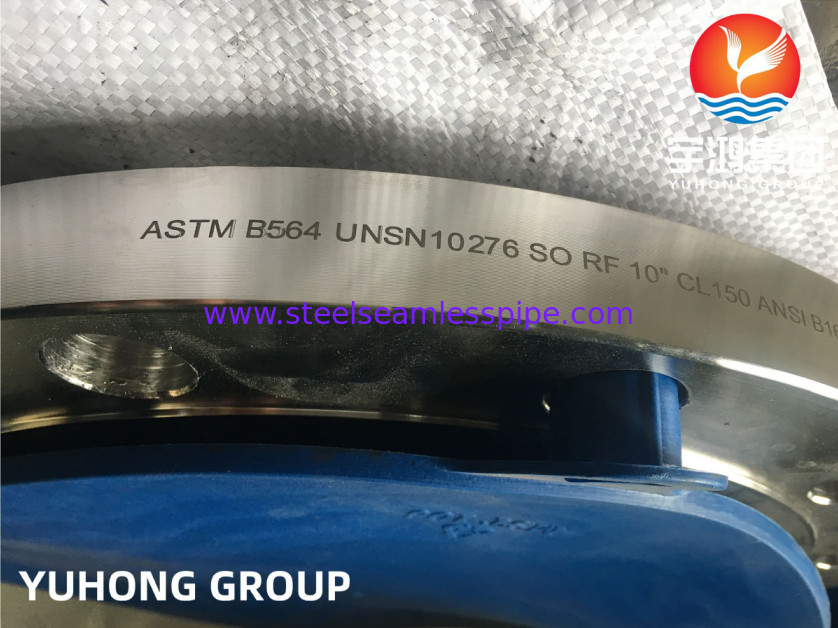

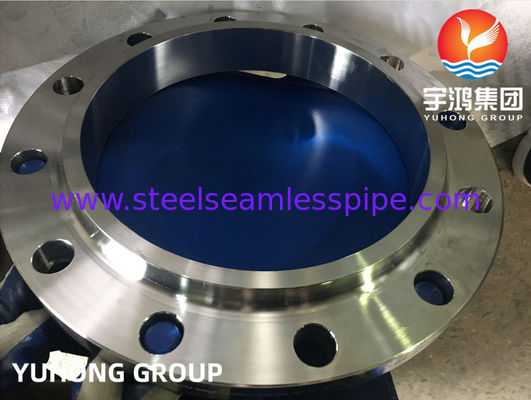

Astm B564 Hastelloy C276 Uns N10276 Forged Sorf Flange Asme B16.5

Astm B564 Hastelloy C276 Uns N10276 Forged Sorf Flange Asme B16.5

  • Astm B564 Hastelloy C276 Uns N10276 Forged Sorf Flange Asme B16.5
  • Astm B564 Hastelloy C276 Uns N10276 Forged Sorf Flange Asme B16.5
  • Astm B564 Hastelloy C276 Uns N10276 Forged Sorf Flange Asme B16.5
Astm B564 Hastelloy C276 Uns N10276 Forged Sorf Flange Asme B16.5
Product Details:
Place of Origin: China
Brand Name: YUHONG SPECIAL STEEL
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B564 HASTELLOY C276
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-30 DAYS
Payment Terms: L/C, T/T
Supply Ability: ACCORDING TO CLIENT'S REQUIREMENT
Contact Now
Detailed Product Description
Standard: ASTM B564 / ASME SB564 Material Grade: HASTELLOY C276 Flange, UNS (N10276), DIN (2.4819)
Product Name: Alloy Flange Dimensions: ANSI/ASTM B16.5, B16.7 SERIES A&B, B16.48
Flange Type: SORF Rasied Face (RF) Class/Pressure: 150#,300#,600#,900#,1500#,2500#,PN6,PN10,PN16,PN25,PN40,PN64,etc
Size: 1/2" To 48"
High Light:

Forged Sorf Flange

,

Hastelloy C276 Sorf Flange

ASTM B564 UNS N10276 Hastelloy C276 Nickel Alloy Flange SORF Flange





Hastelloy C-276 has a excellent resistance to localized corrosion, stress corrosion cracking, oxidizing and reducing media, which is suit for a wide variety of chemical process environments, including ferric and cupric chlorides, hot contaminated media (organic and inorganic), formic and acetic acids, seawater and brine solutions. Meanwhile, Hastelloy C276 is the few kinds of material that can withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide.

It is a solid solution strengthened nickel-molybdenum-chromium alloy with a small amount of tungsten. Alloy C-276 exhibits excellent corrosion resistance in a variety of harsh environments and media. Like many other nickel alloys, it is ductile, easily formed and welded.





What are the characteristics of Hastelloy C276?

1. Excellent corrosion resistance in reducing environments

2. Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides

3. High nickel and molybdenum contents providing good corrosion resistance in reducing environments

4. Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected zones of welded joints

5. Resistance to localized corrosion such as pitting and stress-corrosion cracking

6. One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide





N10276 flange types

WN brida forjada, bridas de cuello de soldadura – WNRF

-N10276 Welding Neck Flange(WNF) & Long Welding Neck Flange(LWNF)
-N10276 Slip-on Flange(SOF)
-Lap Joint Flange(LJW)
-N10276 bind Flange
-Socket Welding Flange (SWF)
-Threaded Flange(THW)
-Plate Flange

ASTM/ASME/ANSIB16.5, B16.47, ASME/ANSI B16.48 flange
slip on flange, Weld Neck Flange ,Threaded Flange Blind Flange,





Equivalent Grades for Hastelloy Alloy C276 Tubes

STANDARD UNS WNR. AFNOR EN JIS OR GOST
Hastelloy C276 N10276 2.4819 - NiMo16Cr15W NW 0276 ЭП760 ХН65МВУ





Chemical Composition

Hastelloy C276 Ni C Mo Mn Si Fe P S Co Cr
Balance 0.010 max 15.00 – 17.00 1.00 max 0.08 max 4.00 – 7.00 0.04 max 0.03 max 2.5 max 14.50 – 16.50





Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.89 g/cm3 1370 °C (2500 °F) Psi – 52,000 , MPa – 355 Psi – 1,15,000 , MPa – 790 40 %





Hastelloy Slip On Flange Specification

Specification : Hastelloy C276 Flanges
Production Process: Heat Treated, Machined, Forged
Coating Flange Faces : Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Standards: ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, JIS Flanges, ASME B16.47 (Series A, Series B) Flanges
Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Connect Type: RF, FF, RTJ, LMF, SMF, LJF
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Common Types of Flange : Flanges 150 LB WNRF
Class 300 RTJ
600# BLRF
Class 900 SORF
Supporting Flange Material: Gasket, Flange Bolts, Ring Joint
Application: Nuclear Power Plant
Chemical Industry
Fabrication Industry
Natural Gas Industry
Oil And Gas Industry
Water Pipeline Industry
Design For Size: PN, DIN, JIS, ANSI, EN, ASA, ASME, BS
Flange Machining Equipment: Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc



Applications & Uses of Hastelloy Alloy Flanges

Although there are several variations of the Hastelloy nickel alloy, Hastelloy C-276 is by far the most widely used.

Alloy C-276 is widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas.

Hastelloy C276 Flange are mainly used in Oil & Gas, Chemical, Nuclear power (mostly seamless), Power, Bitumen upgraders,

Petrochemicals and acids, Heavy oil refineries, Gas, ,Construction, Shipbuilding industries, Metallurgy&others.
