Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | A403 WP316L Stainless Steel Pipe Fitting 90 Degree Elbow |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Packaging Details: | Plwood case or Pallet |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Product Name: | Stainless Steel Butt Weld Elbow | Specification: | ASTM A403, ASME SA403 |
|---|---|---|---|
| Dimension Standard: | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 | Material: | Stainless Steel 310S, 304, 304L, 304H, 316L, Etc. |
| O.D.: | 1/8”NB To 48”NB | W.T.: | Schedule 10s - Schedule XXS |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D Or Custom | Type: | LR, SR, 45/90/180 Degree Elbow |
| Connection: | Welding | ||
| High Light: | Butt Weld 90 Degree LR Elbow,LR Stainless Steel Elbow,Stainless Steel 90 Degree Elbow WP316L |
||

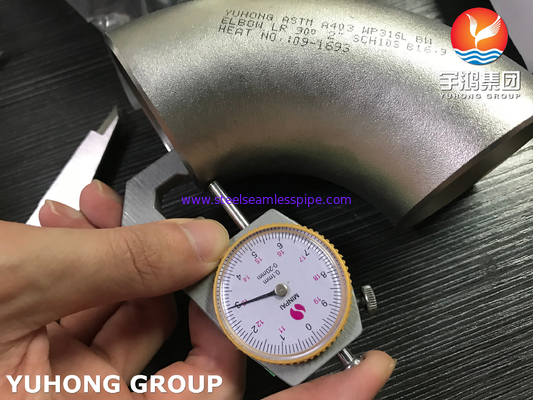

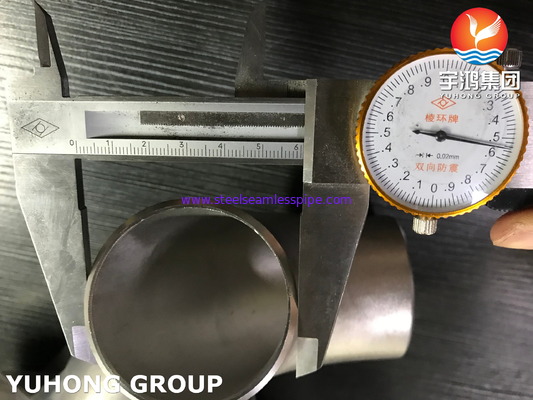

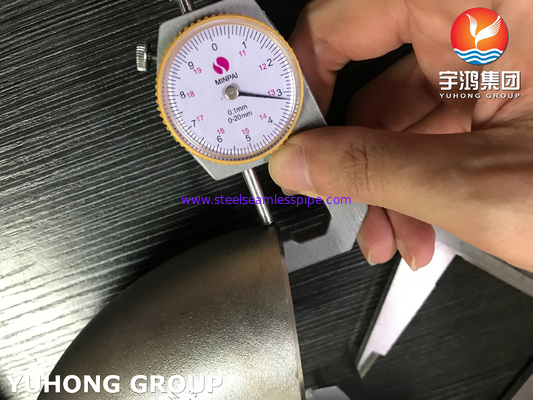

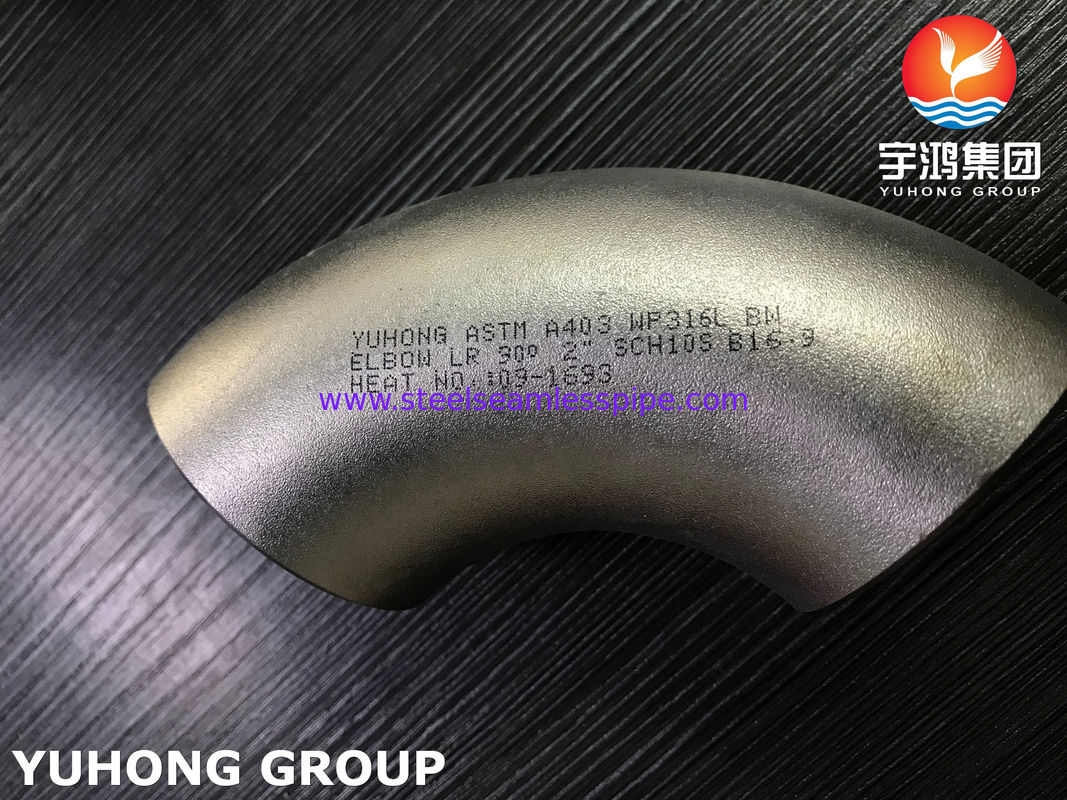

Stainless Steel Butt Weld Pipe Fitting, ASTM A403 WP316L 90 Degree LR Elbow
YUHONG GROUP is one of the biggest projects pipeline products supplier in China. Our products contain steel pipes / tubes, fittings and flanges. With decades years of development, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
ASTM A403 WP316L Stainless Steel Pipe Fittings Specifications
| Stainless Steel ASTM A403 WP316L Fittings Specifications | ASTM A403/ ASME SA403 |
|---|---|
| ASTM A403 WP316L Pipe fittings Types |
|
| SS WP316L Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| ASTM A403 WP316L SS Pipe Fittings size | ASTM A403 WP316L Seamless Butt Weld Fittings: 1/2" - 10" ASTM A403 Grade WP316L Welded Butt Weld Fittings: 1/2" - 48" |
| Stainless Steel 316L Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | 1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) SA 403 WP316L Buttweld Fitting |
| 316L Stainless Steel Fittings Type | DN15-DN1200 |
| ASTM A403 WP316L Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| ASTM A403 316L Buttweld Fitting Connection | Welding |
| End | Threaded, Welding, JIC |
| Buttweld Fitting Types | Seamless / ERW / Welded / Fabricated fittings |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Gr WP316L Pipe Fitting |
| 316L Stainless Steel Buttweld Pipe Fittings Test Certificates |
|
| SS Grade WP316L Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Key markets and industries for SS Grade WP316L Pipe Fittings |
|
| Specialized manufacturer of | Grade WP316L Stainless Steel 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| Application & uses of Industrial A403 316L Fittings |
|
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Nickel Alloy | ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C276) |
| Stainless Steel | ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H |
| Duplex Steel | ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760 |
| Carbon Steel | ASTM / ASME A 234 WPB, WPC ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Alloy Steel | ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91 |
Specifications : ASTM A403 / ASME SA403
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Butt Weld Elbow (90°)
Pipe elbow fittings is a very important pipe fitting. When we talk about a pipe elbow, it means a length of pipe with a sharp bend in it. Pipe elbows are fitting accessories which are used widely in various industrial sectors in pipe fitting. A pipe elbow is frequently used in pressurized applications and is available in various shapes and sizes for use in different applications. A pipe elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction.
