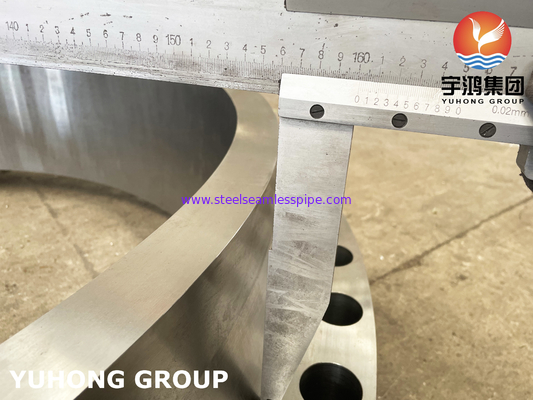

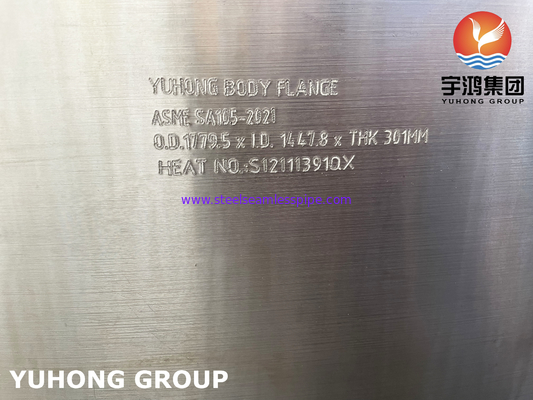

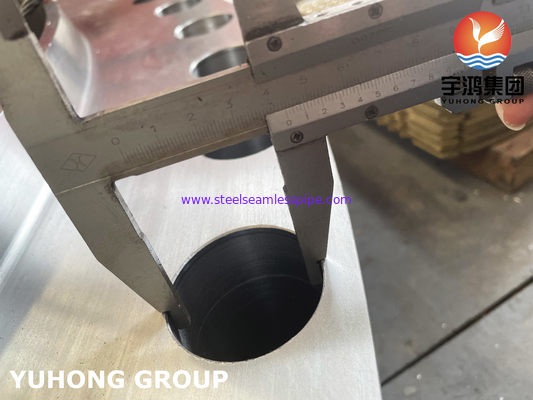

A105 Forged carbon steel Girth Flange, Body flange For Pressure Vessel with Good Durability

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	API , ABS, DNV, GL , LR, NK
Model Number:	ASTM A105 / ASME SA105

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	500 pcs per month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Material:

ASTM A105 – Forged Carbon Steel (used For Ambient- And High-temperature Service)

Product Name:

Girth Flange, Body Flange

Shape:

Typically A Flat Ring Or Hubbed Flange That Wraps Around The Girth Of A Vessel Or Pipe

Pressure Class:

Commonly Available In ANSI/ASME Classes (150, 300, Etc.) Depending On System Design

Highlight:

Carbon Steel Forged Channel Ring

Carbon Steel Girth Flange

Forged Body Girth Flange

A105 Forged carbon steel Girth Flange, Body flange For Pressure Vessel with Good Durability

Name: A105 Forged carbon steel Girth Flange, Body flange For Pressure Vessel with Good Durability
Brand: Yuhong Group Co.,Ltd
SKU: ASTM A105 / ASME SA105
Price: 150000.00 USD
Availability: InStock

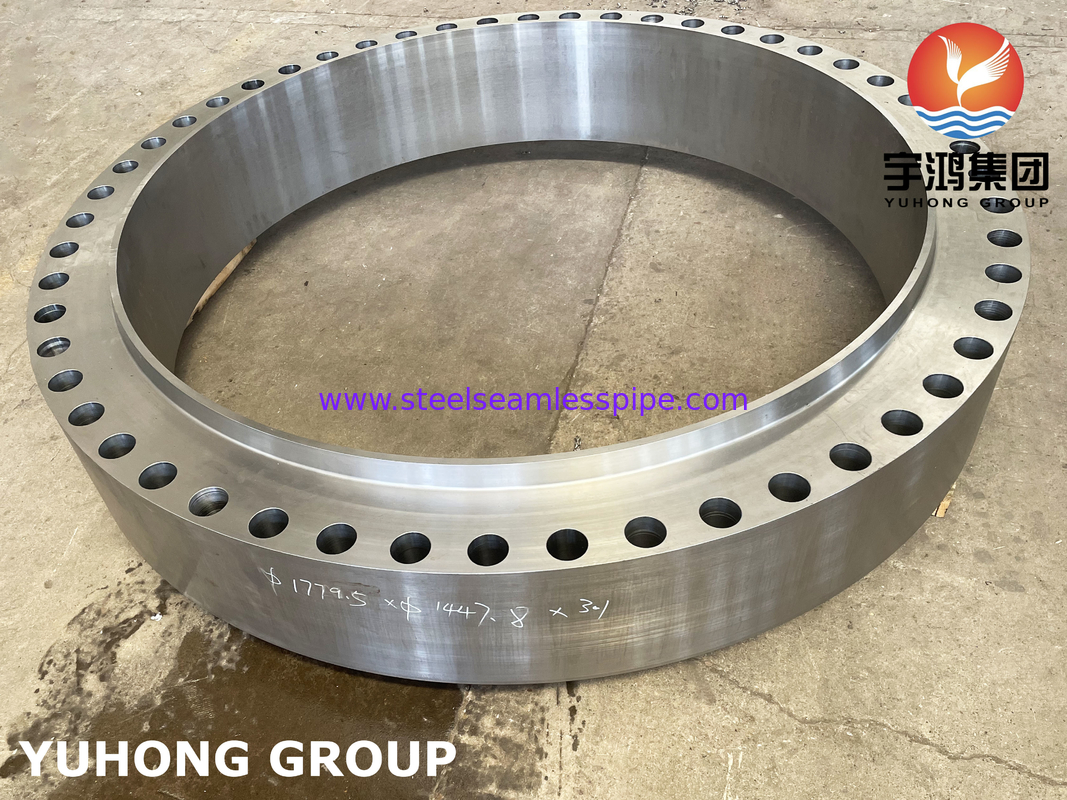

What is Girth Flange / Body Flange?

A Girth Flange (also known as a Body Flange) is a circular, ring-shaped flange welded around the circumference (girth) of pressure vessels, shells, tanks, or large diameter piping. It is used to join two cylindrical sections—typically as a structural or maintenance access point in equipment that cannot be made in a single piece due to size, transport, or fabrication constraints.

Why choose A105 Girth Flange:

Wide availability: A105 is a commonly used carbon steel material that is readily available in the market, making it easy to source for various industrial applications.
Cost-effective: A105 girth flanges are relatively affordable compared to other materials, making them a cost-effective choice for projects with budget constraints.
High strength: A105 carbon steel has excellent mechanical properties, including high tensile strength and impact resistance, making it suitable for high-pressure and high-temperature applications.
Corrosion resistance: A105 girth flanges are resistant to corrosion, making them ideal for use in environments where exposure to moisture or chemicals is a concern.
Easy to weld: A105 carbon steel is weldable and can be easily fabricated, allowing for quick and efficient installation of girth flanges in piping systems.

Overall, A105 girth flanges are a reliable and versatile choice for various industrial applications due to their strength, affordability, and corrosion resistance.

Available material grades of girth flange

Carbon steel (A105, A266 CL2/CL4)

Plate material of Baffle plate: A36, SS440, A516 Gr60/70

Low Temp Carbon steel (A350 LF2 CL1/CL2, LF3)

High Yield Carbon steel (A694 F52/F60/F65/F70)

Stainless steel (A182 F304/L, F304H, F310, F316/L, F317/L, F321/H, F347/H, F44)

Low alloy steel (A182 F1, F5, F9, F11 CL1/CL2/CL3, F12 CL1/CL2, F22 CL1/CL3, F23, F91, F92)

Duplex stainless steel ( A182 F51, F53, F60)

Alloy steel (Alloy 20, Alloy625/825/800)

A105 Chemical Composition

ELEMENT	COMPOSITION, %
Carbon	0.35 max
Manganese	0.60-1.05
Phosphorus	0.035 max
Sulfur	0.040 max
Silicon	0.10-0.35
Copper	0.40 max (1)
Nickel	0.40 max (1)
Chromium	0.30 max (1-2)
Molybdenum	0.12 max (1-2)
Vanadium	0.08 max

A105 Mechanical Properties

Mechanical Properties	Requirements
Tensile strength,min,psi [MPa]	70000 [485]
Yield strength,min,psi [MPa]	36000 [250]
Elongation, min, %	30
Reductionofarea,min,%	30
Hardness,HB,max	187

A105 Physical Properties

Density (lb / cu. in.)	0.284
Specific Gravity	7.9
Specific Heat (Btu/lb/Deg F - [32-212 Deg F])	0.107
Melting Point (Deg F)	2740
Thermal Conductivity	360
Mean Coeff Thermal Expansion	6.7
Modulus of Elasticity Tension	30
Modulus of Elasticity Torsion	11

Girth flanges Application:

Piping systems: Girth flanges are used to connect sections of pipes together in pipelines for transporting fluids or gases.
Pressure vessels: Girth flanges are used to connect the shell and heads of pressure vessels, ensuring a secure and leak-proof connection.
Heat exchangers: Girth flanges are used in heat exchangers to connect the tubes or plates to the shell, allowing for efficient heat transfer.
Boilers: Girth flanges are used in boilers to connect the various components of the boiler system, such as the steam drum, tubes, and headers.
Storage tanks: Girth flanges are used in storage tanks to connect the tank shell to the roof or bottom, providing a secure and leak-proof seal.
