Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM A403/A403-2018 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-wooden case, with plastic cap |
Delivery Time: | 20-60DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
Material: | WP304,304L, WP316L,WP310S | Shape: | Equal, Reducing |
---|---|---|---|
Type: | Butt Welded Fitting | Other Fittings: | Con/Ecc Reducer, Elbow, Cap, Stub End.... |
High Light: | WP304L-W Reducing Tee,Steel Pipe Reducing Tee,Pipe Reducing Tee Fitting |

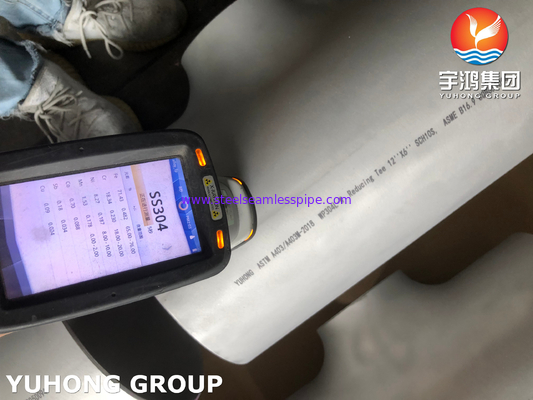

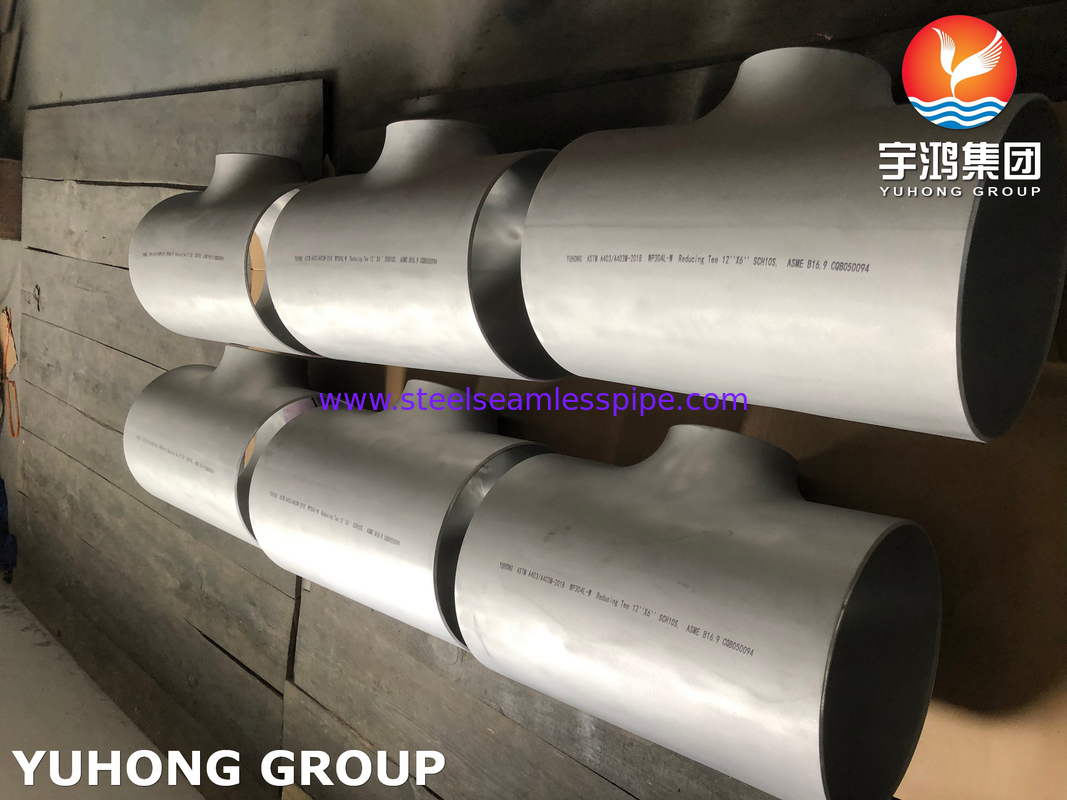

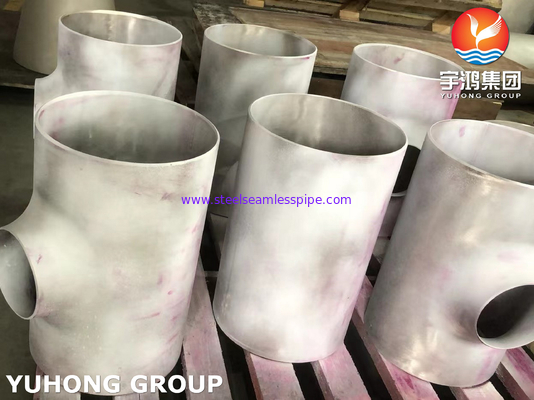

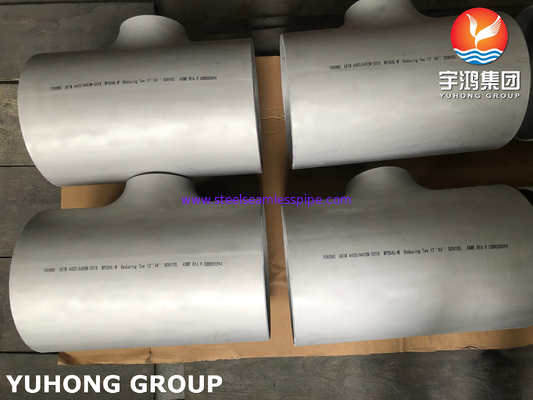

ASTM A403/A403M-2018 WP304L-W Reducing Tee 12" x 6" SCH10S BUTT WELDED FITTINGS ASME B16.9
We are YUHONG GROUP, with more than 30 years on the butt welded fittings like elbow, reducer, tee,elbow, our product has exported to more than 55 countries and got very good feedback. Our product has the inspection of ABS,GL, DNV,NK,PED.AD2000.GOST9941-81,CCS,ISO 9001-2008. Quality is in the first place. Welcome to inquiry to YUHONG.
ASTM A403 WP304 covers the standard for wrought austenitic stainless steel fittings for pressure piping applications. The material of pipe fittings shall include forgings, bars, plates or seamless or welded pipes. Forging or forming operations shall be performed by hammering, pressing, piercing, extruding, upsetting, rolling, bending, fusion welding, machining, or a combination of two or more of these operations. All accessories should be heat treated.
Chemical and product analysis should be performed and should meet the required chemical composition of carbon, manganese, phosphorus, sulfur, silicon, chromium, molybdenum and titanium. Tensile tests should be performed on fitting materials to determine tensile properties such as yield strength and tensile strength. Accessories supplied in accordance with this specification shall be visually inspected for surface discontinuities, surface inspections, and mechanical markings.
Butt welded pipe fittings are designed to be field welded at their ends to join pipes together and allow for changes in direction or pipe diameter, or branching or ending.
The accessory then becomes part of a system for transporting fluids (oil, gas, steam, chemicals...) over short or long distances in a safe and efficient manner.
Other types of fittings can be threaded or socket welded.
This specification covers several grades of austenitic stainless steel alloys. Designate the grade with a prefix according to the applicable ASTM/ASME or MSS standard. For each WP stainless grade, several types of fittings are specified to indicate whether seamless or welded construction is used. Category names are also used to indicate NDT methods and NDT scopes. Below is a general summary of the fitting grades available for all WP stainless grades. There are no class at the CR level.
Fitting Classes for WP Grades
|
---|
ASTM A403 WP304 Pipe Fittings Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
304 | min. max. | - 0.08 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - 0.10 |
304L | min. max. | - 0.030 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 12.0 | - 0.10 |
304H | min. max. | 0.04 0.10 | - 2.0 | - 0.75 | -0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - |
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Grade | UNS | W.Nr | plate | bar |
seamless pipe |
welded pipe |
welded tube |
forging | flange, fitting |
304H | S30409 | 1.4301 |
A240 /SA240 |
A479 /SA479 |
A312 /SA312 |
A312 /SA312 |
A213 /SA213 |
A182 /SA 182 |
A 815 /SA 815 |
309S | S30908 | 1.4833 |
A240 /SA240 |
A479 /SA479 |
A312 /SA312 |
A312 /SA312 |
A213 /SA213 |
A182 /SA 182 |
A 815 /SA 815 |
310S | S31008 | 1.4845 |
A240 /SA240 |
A479 /SA479 |
A312 /SA312 |
A312 /SA312 |
A213 /SA213 |
A182 /SA 182 |
A 815 /SA 815 |
321 | S32100 | 1.4541 |
A240 /SA240 |
A479 /SA479 |
A312 /SA312 |
A312 /SA312 |
A213 /SA213 |
A182 /SA 182 |
A 815 /SA 815 |
347 | S34700 | 1.455 |
A240 /SA240 |
A479 /SA479 |
A312 /SA312 |
A312 /SA312 |
A213 /SA213 |
A182 /SA 182 |
A 815 /SA 815 |
410/410S |
S41000 /S41008 |
1.4006 /1.4000 |
A240 /SA240 |
A479 /SA479 |
A312 /SA312 |
A312 /SA312 |
A213 /SA213 |
A182 /SA 182 |
A 815 /SA 815 |
330 | N08330 |
1.4886 /1.4864 |
B536 /SB536 |
B511 /SB511 |
B535 /SB535 |
B535 /SB535 |
B535 /SB535 |
||
333 | N06333 | 2.4608 |
B718 /SB718 |
B719 /SB719 |
|||||
800 | N08800 | 1.4876 |
B409 /SB409 |
B408 /SB408 |
B407 /SB407 |
B514& ASTM SB514 | B514& ASTM SB514 |
B564 /SB564 |
B366 /SB 366 |
800H/800HT | N08810 |
1.4958 /1.4959 |
B409 /SB409 |
B408 /SB408 |
B407 /SB407 |
B514& ASTM SB514 | B514& ASTM SB514 |
B564 /SB564 |
B366 /SB 366 |
601 | N06601 | 2.4851 |
B168 /SB168 |
B166 /SB166 |
B167 /SB167 |
B564 /SB 564 |
B366 /SB 366 |
||
253MA | S30815 | 1.4893 |
A240 /SA240 |
A480 /SA480 |
A312 /SA312 |
A312 /SA312 |
A213 /SA213 |
A182 /SA 182 |
A 815 /SA 815 |
