Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A105 Carbon Steel Forged Flange |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply- Wooden Case/Plastic Bag |
| Delivery Time: | 10-75DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Size: | 15mm-6000mm, STD, 1/2"-120", DN 10-DN3000 | Pressure: | Class 150/300/600/900/1500/2500, PN 2.5/6/10/16/25/40, 0-63MPa, 150LB-2500LB |
|---|---|---|---|
| Type: | Treaded Flange, Slip On Flange, Socket Weld Flange, Weld Neck Flange, Lap Joint Flange | Application: | Petroleum, Chemical, Fittings And Connection, Beer, Etc. |
| High Light: | Carbon Steel Forged Flange A105N,Petroleum Carbon Steel Flange,Carbon Steel Wnrf Flange |
||

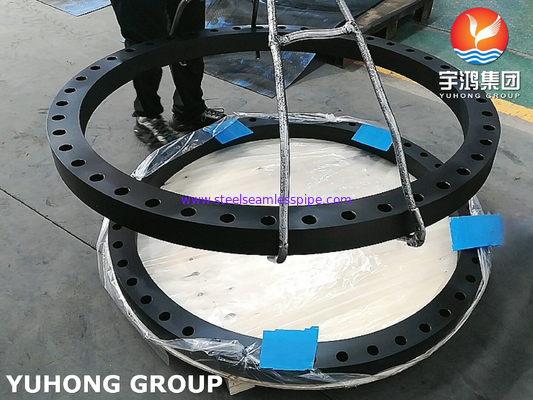

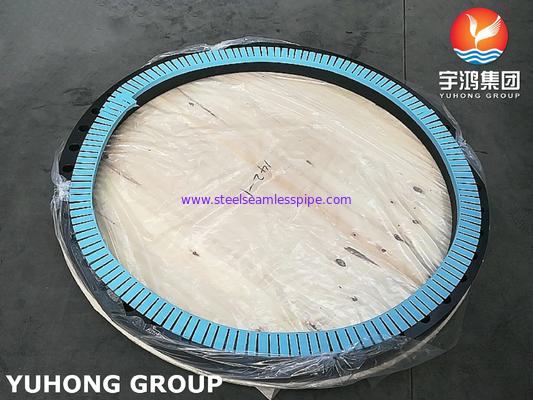

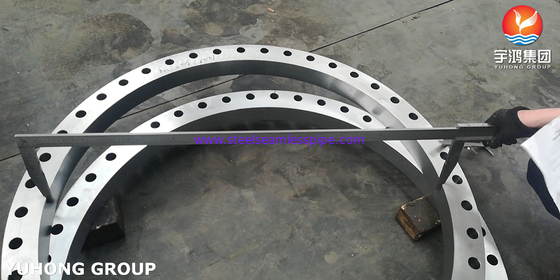

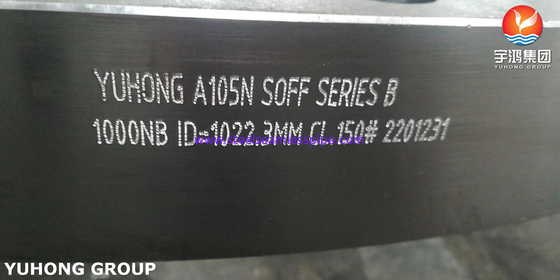

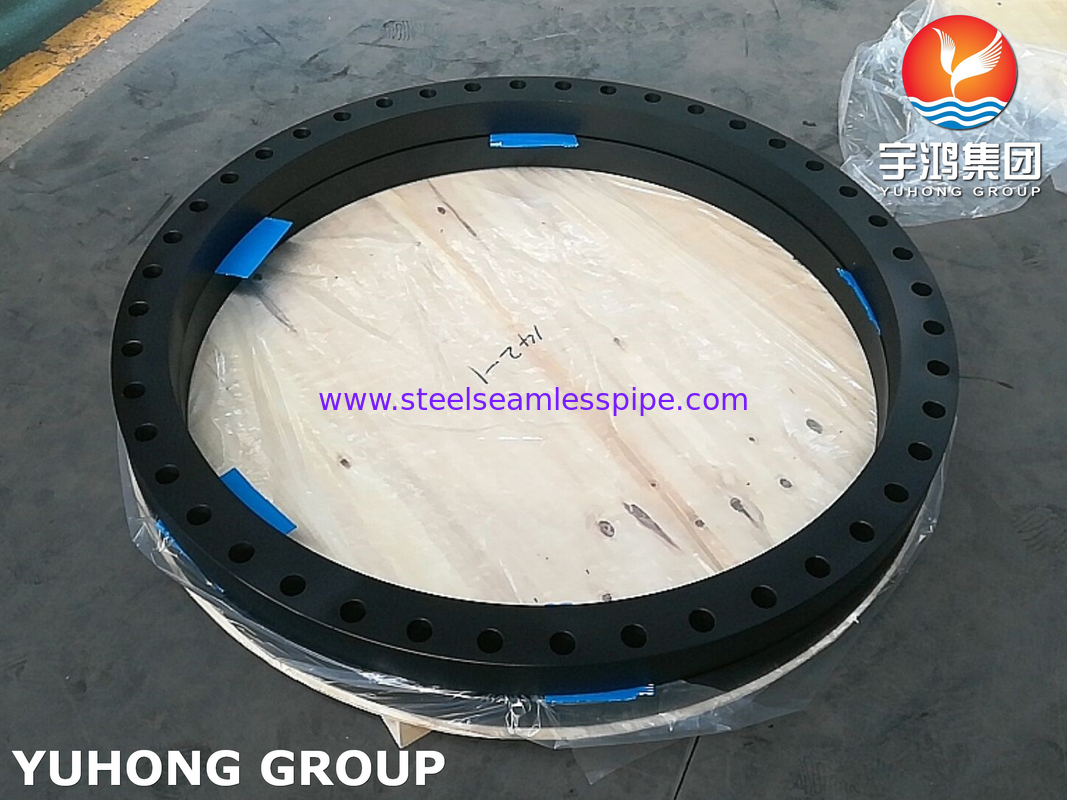

ASTM A105/A105N SOFF SERIES B Carbon Steel Forged Flange ASME B16.48
We are a manufacturer, supplier and exporter of Carbon Steel A105 / A105N Flanges, classified by the American Society for Testing and Materials as a standard covering forged carbon steel pipe components, which also includes carbon steel pipe flanges that can be used in pressure systems at room temperature and above. We manufacture Carbon Steel A105/A105N Blind Flanges which successfully contain and seal pipe ends in heavy pressure applications such as hydraulic systems because they have the greatest bending stress at the center.
| Element | Composition %, Note C |
|---|---|
| Carbon | .35 max |
| Manganese | .60-1.05 |
| Phosphorus | .035 max |
| Sulfur | .040 max |
| Silicon | .10-35 |
| Copper | .40 max, note A |
| Nickel | .40 max, note A |
| Chromium | .30 max, note A,B |
| Molybdenum | .12 max, note A,B |
| Vanadium | .08 max, note A |
Forged and Plate Flanges
| Products | Size | |
| ASTM A105 Carbon Steel Slip-On Flanges | ASTM A105 Carbon Steel Threaded Flanges | Sizes 1/2″ – 48″ Raised Face or Flat Face |
| ASTM A105 Carbon Steel Weld Neck Flanges | ASTM A105 Carbon Steel Socket Weld Flanges | |
| ASTM A105 Carbon Steel Blind Flanges | ASTM A105 Carbon Steel Reducing Flanges | |
| ASTM A105 Carbon Steel Lap Joint Flanges | ASTM A105 Carbon Steel Plate Flanges | |
| ASTM A105 Carbon Steel Orifice Flanges | ASTM A105 Carbon Steel Forged Flanges | |
| ASTM A105 Carbon Steel Ring Type Joint Flanges | ASTM A105 Carbon Steel Square Flanges | |
Carbon Steel Flange Standards / Types And Pressure Class :
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
