Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YuHong |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A815 WP32750-S |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply- Wooden Case/Plastic Bag / Plastic Cap |
| Delivery Time: | 10-75DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Material: | 1.4469, SAF2507,G-X-25Cr7Ni4MoN,S32750 | Type: | 45DGE 90 DGE ELBOW |
|---|---|---|---|
| Production Standard: | ASME B16.9 | Delivery: | 25-30 Days |
| High Light: | Super Duplex Butt Welded Elbow,Steel Pipe Butt Welded Elbow,Butt Welded Duplex 45 Degree Elbow |
||

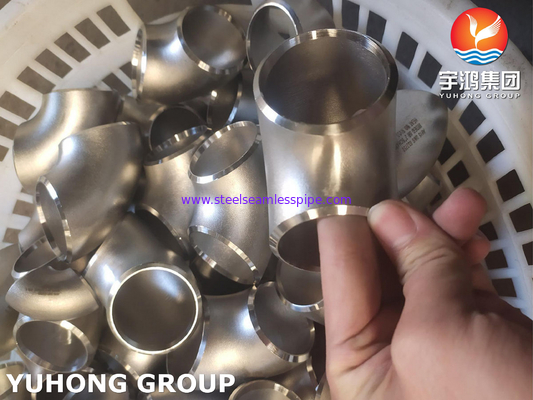

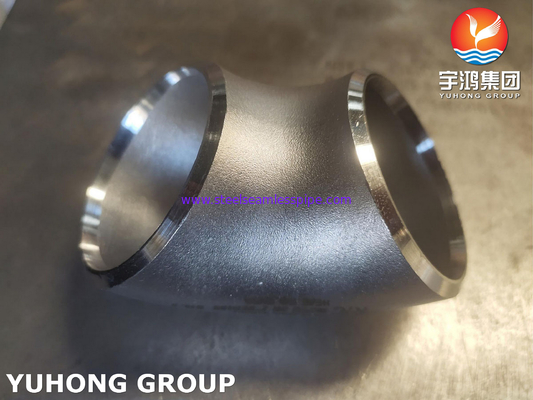

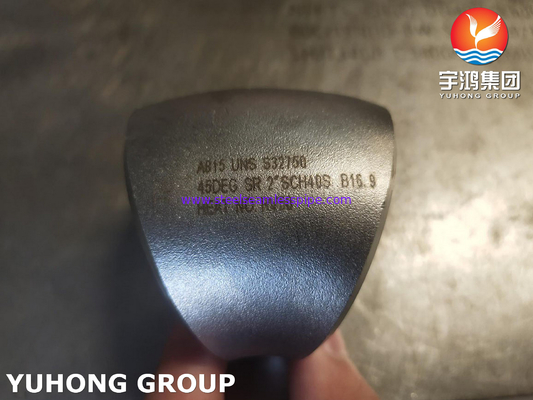

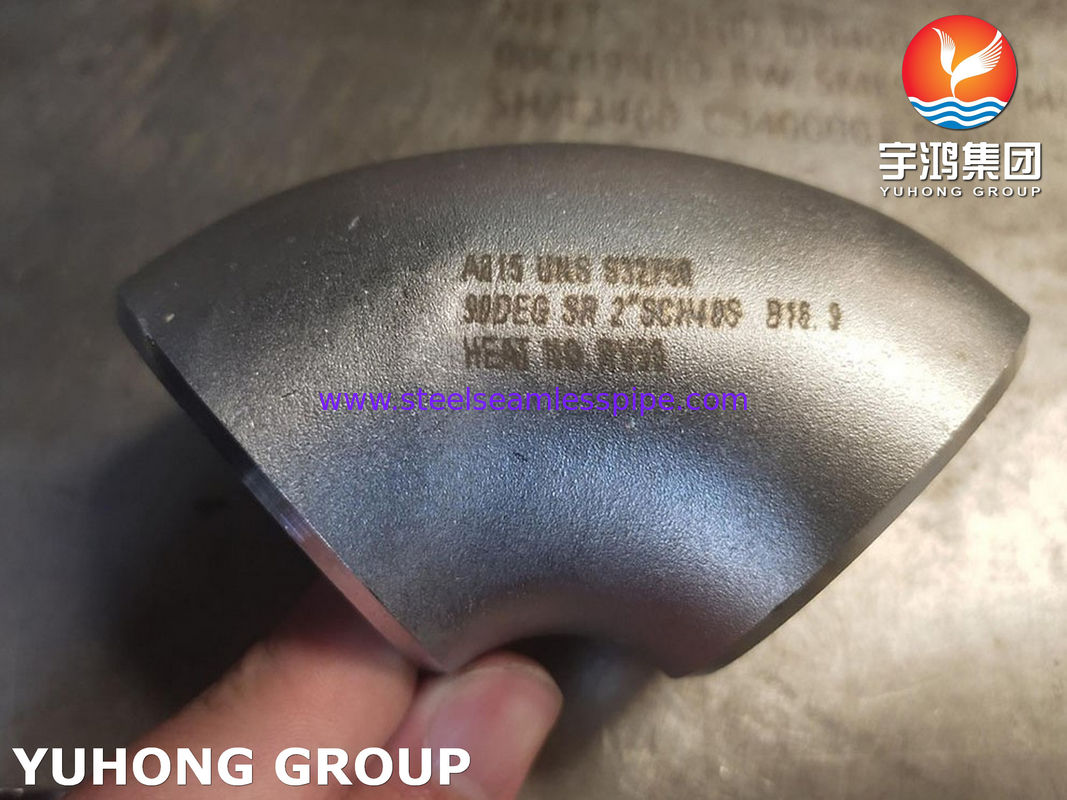

ASTM A815 WP32750-S ELBOW Super Duplex Butt Welded Fittings ASME B16.9
Duplex stainless steels are a family of stainless steels. These are called duplex (or austenitic-ferritic) grades because their metallurgical structure consists of two phases, austenite (face-centered cubic lattice) and ferrite (body centered cubic lattice) in roughly equal proportions. They are designed to provide better corrosion resistance, particularly chloride stress corrosion and chloride pitting corrosion.
ASTM A815/A815M-20 Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings.
| Specifications | ASTM A815 / ASME SA815 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 24″, Welded Butt Weld Fittings: 1/2″ – 48″ |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
