Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Yuhong Group |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A790 UNS 31803 |
| Minimum Order Quantity: | 100 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, L/C |
| Standard: | ASTM A790 | Material Grade: | UNS31803/31500/32750 |
|---|---|---|---|
| NDT: | ET, UT, HT , PT | Application: | Oil And Gas |
| High Light: | UNS 31803 Duplex Stainless Steel Pipes,Thick Wall Duplex Stainless Steel Pipes,Gas Stainless Steel Seamless Pipe |
||

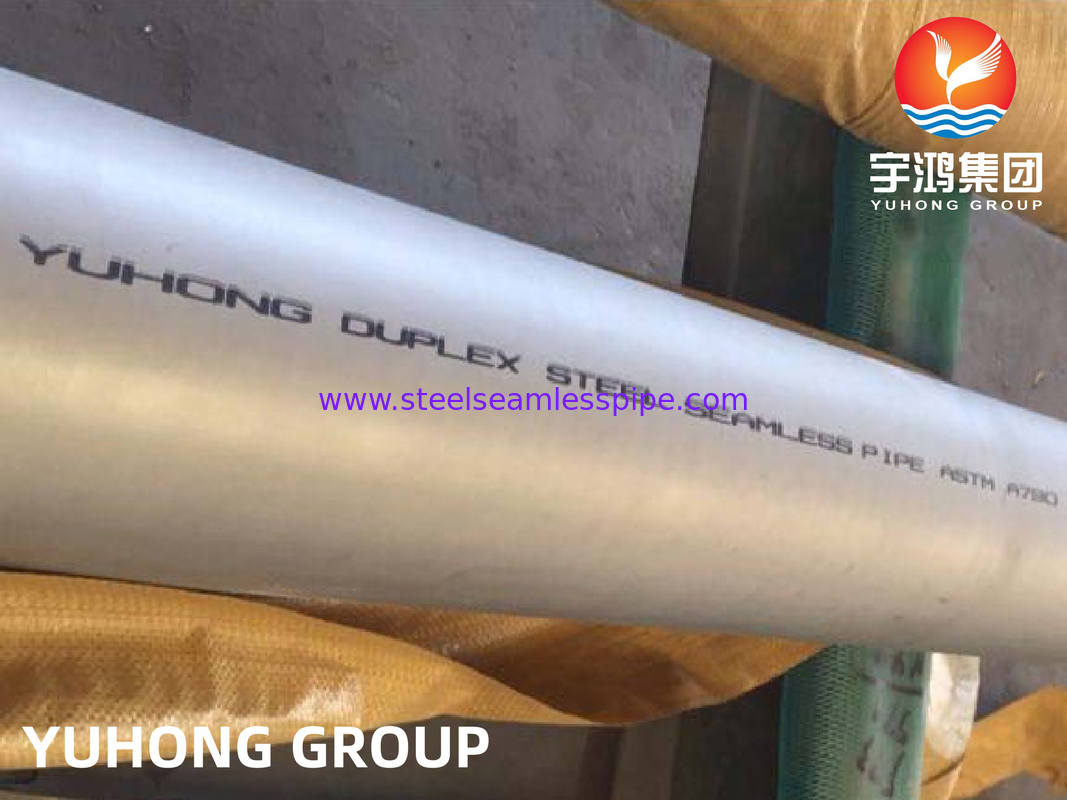

ASTM A790 S31803/S31500 (1.4410)Duplex Stainless Steel Pipes
ASTM A790 Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe. Duplex stainless steel pipe (DSS) is featured with structure of two phases (α and γ) and has characteristics of both ferritic and austenitic stainless steel. It has good corrosion resistance and high strength. It is alloyed with 18%-28% Cr and 3%-10% Ni in the condition of low C. Some steels also contain the alloy elements such as Mo, Cu, Nb, Ti and N, etc. Comparing with ferritic stainless, duplex stainless steel has higher plasticity, ductility and better intergranular corrosion resistance and weldability. It keeps same 475°C brittleness with ferritic stainless and high thermal conductivity. Duplex has improved yield strength, resistance to intergranular corrosion, stress corrosion, corrosion fatigue and abrasion & corrosion compared with austenitic stainless steel.
S31500 material is a duplex (austenitic-ferritic) stainless steel with characters as High resistance to stress corrosion cracking (SCC) in chloride, bearing environments, Good resistance to general corrosion and pitting, High mechanical strength, roughly twice the proof strength of austenitic grades, Good resistance to erosion corrosion and corrosion fatigue, Physical properties that present design advantages, Good weldability
Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530
Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410),UNS S31500(Cr18NiMo3Si2),
UNS32760(1.4501)
Chemical Composition
| Grade |
C max |
Si max |
Mn max |
P max |
S max |
Cr | Ni | Mo | N |
| UNS S32750 | 0.030 | 0.8 | 1.2 | 0.030 | 0.015 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | 0.24-0.32 |
| UNS S31803 | 0.030 | 1.0 | 2.0 | 0.020 | 0.020 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | 0.08-0.20 |
| UNS S31500 | 0.030 | 1.0 | 1.2-2.0 | 0.030 | 0.030 | 18.0-19.0 | 4.5-5.5 | 2.5-3.5 | 0.05-0.10 |
Physical Properties
| Grade | Y.S.MPa min | T.S.Mpa min | Elongation % | Hardness HRC |
| UNS S32750 | 550 | 800 | 15 | 20 |
| UNS S31803 | 450 | 620 | 25 | 20 |
| UNS S31500 | 440 | 630 | 30 | 20 |
Duplex Stainless Steel Pipe Application:
Chemical processing, Transport and Storage.
Oil and gas exploration and offshore rigs.
Oil and gas refining.
Marine environments.
Pollution control equipment.
Pulp and paper manufacturing
Chemical process Plant
Some of the quality tests carried out by us includes:
| Corrosion Test | Conducted only when specially requested by the client |

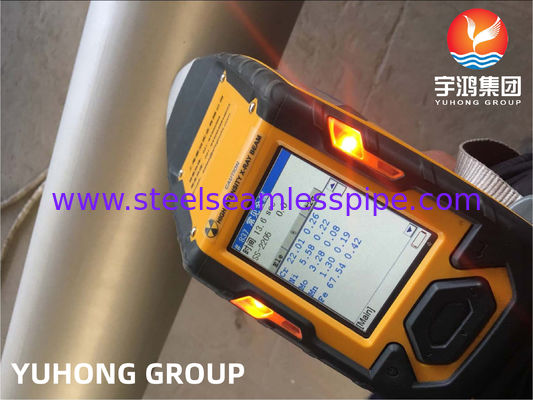

| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
|
|
|
