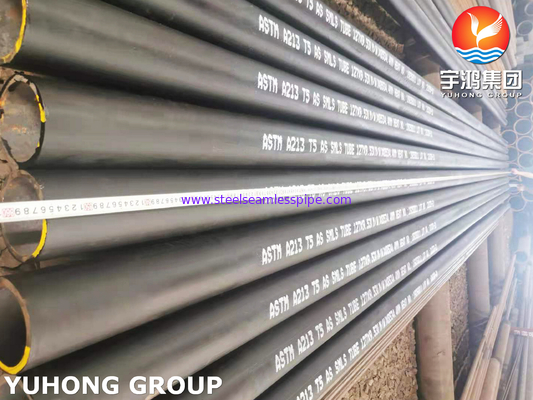

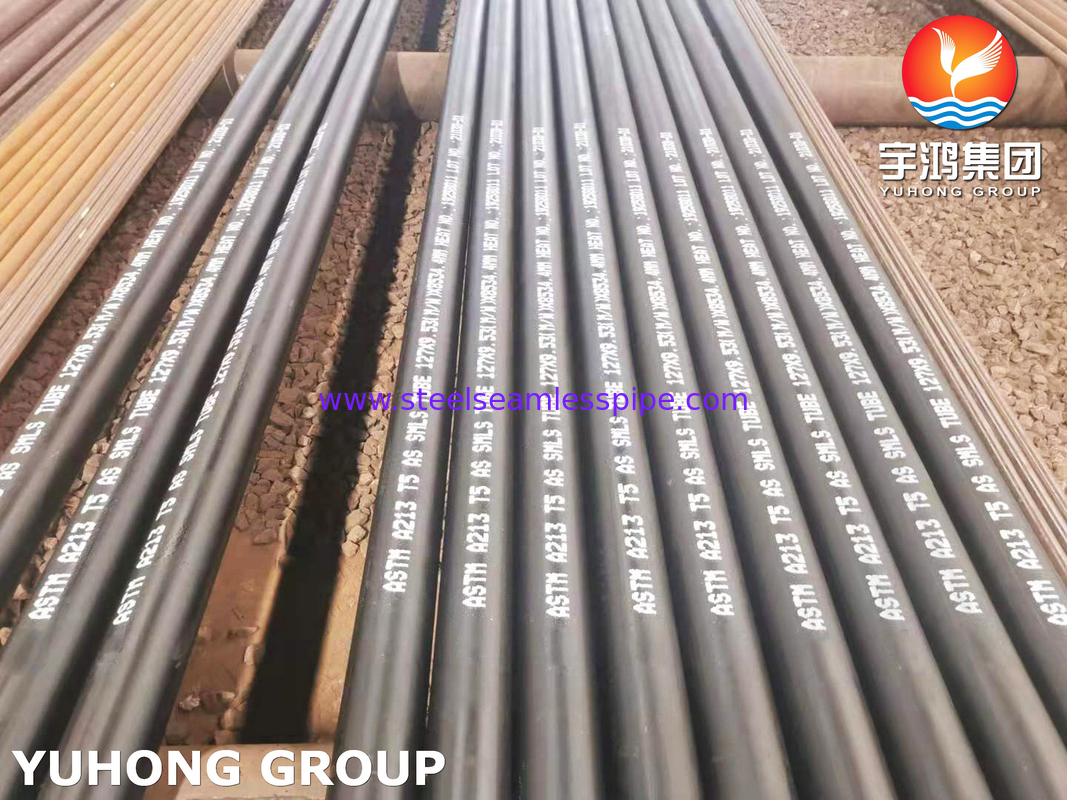

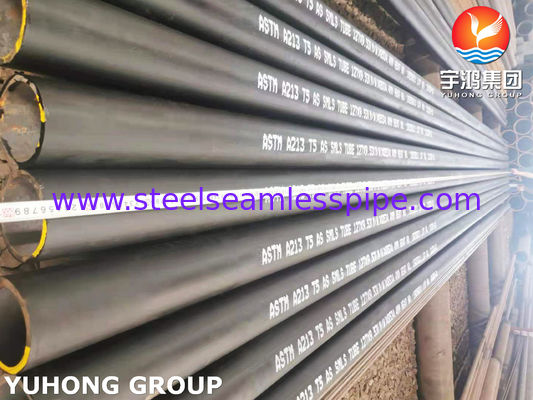

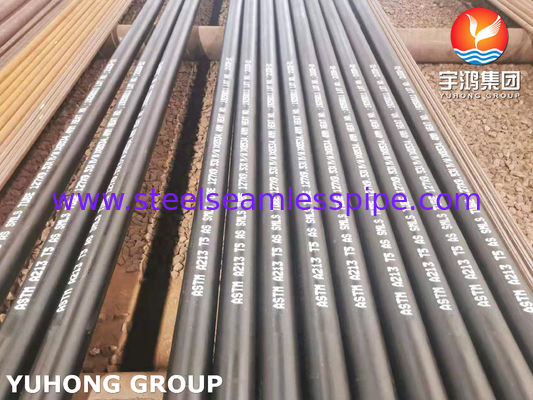

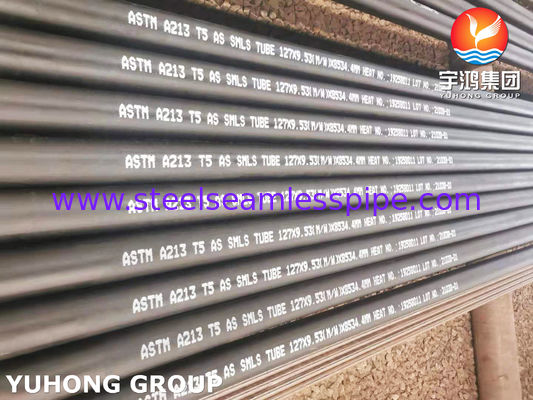

ASTM A213 T5 15Mo3 Chromium-Molybdenum Alloy Steel Seamless Boiler Tube Hot Finished

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	EN 10204 3.1 OR 3.2 /PED 2014/68/EU/ISO 9001
Model Number:	A213 T5 Alloy Steel Seamless Tube

Payment & Shipping Terms:

Minimum Order Quantity:	500 KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T,L/C AT SIGHT
Supply Ability:	1500 tons / Month

Contact Now

All Products

Stainless Steel Seamless Pipe (353)

Stainless Steel Seamless Tube (348)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (175)

Fin Tube (756)

Heat Exchanger (45)

Heat Exchanger Tube (481)

Heat Exchanger Tube Bundle (57)

Heat Exchanger Tubesheet (132)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (136)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (110)

Copper Alloy Tube (258)

Alloy Steel Tube (229)

Titanium Tube (22)

Bright Annealed Tube (166)

Boiler Tube (166)

Steel Fitting (886)

Steel Flange (687)

Others (412)

Cladding Parts (9)

Detailed Product Description

Material:	T5 / 15MO3 / K41545	Product Form:	Seamless
Technique:	Hot Finished / Cold Finished	Heat Treatment:	Full Annealing, Isothermal Annealing, Normalizing And Tempering
Surface:	Black Painting	Testing:	Hydrostatic / Nondestructive Electric Test
Tensile Strength:	≥ 415 MPa	Yield Strength:	≥ 205 MPa
Highlight:	Alloy Steel Seamless Tube Hot Rolled , Grade T5 Alloy Steel Seamless Tube , ASTM A213 Alloy Steel Pipe

ASTM A213 T5 / K41545 Alloy Steel Seamless Tube 15Mo3 Hot Finished

Product Overview

ASTM A213 T5 seamless tube is a chromium-molybdenum alloy steel tube specified for boiler, superheater and heat-exchanger service. Grade T5 is identified as UNS K41545 and contains approximately 4.00-6.00% chromium and 0.45-0.65% molybdenum according to ASTM A213 requirements.

The Cr-Mo alloy composition provides a combination of elevated-temperature strength and resistance to oxidation compared with conventional carbon steel tubing. The seamless construction is suitable for pressure-containing heat-transfer equipment where welded seams are not preferred.

The tubes can be supplied in hot finished or cold finished conditions according to the applicable specification and purchase requirements.

Technical Specifications

Item	Specification
Product	Alloy Steel Seamless Tube
Grade	ASTM A213 T5
UNS	K41545
Common Material Reference	15Mo3*
Material Type	Chromium-Molybdenum Alloy Steel
Standard	ASTM A213 / ASME SA213
Manufacturing	Seamless
Finish	Hot Finished / Cold Finished
Heat Treatment	According to ASTM A213
Outside Diameter	Customized
Wall Thickness	Customized
Length	Fixed / Random / Customized
End Type	Plain End / Beveled End
Surface	Mill / Customized
Testing	Hydrostatic or Nondestructive Electric Test

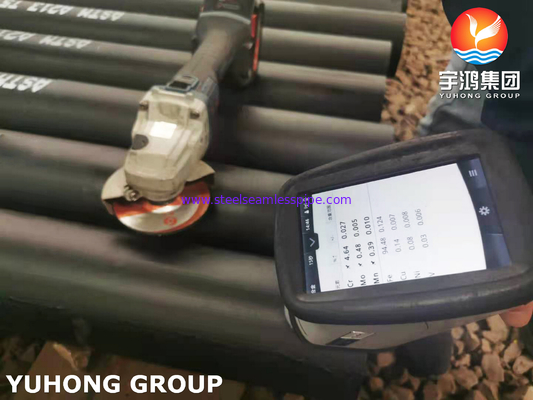

Inspection	Chemical, Mechanical, Dimensional and Visual
Certification	EN 10204 3.1 / 3.2 Available

Note: 15Mo3 should be presented as a related/commonly referenced designation rather than an automatic one-to-one equivalent of ASTM A213 T5. For projects requiring strict material equivalency, chemistry and applicable standard requirements should be verified.

Chemical Composition

Element	ASTM A213 T5 Requirement
Carbon (C)	0.15% max
Manganese (Mn)	0.30-0.60%
Phosphorus (P)	0.025% max
Sulfur (S)	0.025% max
Silicon (Si)	0.50% max
Chromium (Cr)	4.00-6.00%
Molybdenum (Mo)	0.45-0.65%

These are the ASTM A213 T5 composition limits.

Mechanical Properties

Property	ASTM A213 T5
Tensile Strength	≥ 415 MPa
Yield Strength	≥ 205 MPa
Elongation	According to ASTM A213 requirements
Hardness	According to ASTM A213 requirements

Manufacturing Process

Steel Billet → Hot Piercing → Seamless Rolling → Heat Treatment → Sizing → Straightening → Cutting → Inspection → Marking → Packaging

For hot-finished tubes, the seamless forming process can be followed by sizing and heat treatment to achieve the required dimensions and mechanical properties.

Applications

Boiler Tubes - Used in selected boiler pressure-part applications operating at elevated temperatures.
Superheater Systems - Suitable for heat-transfer tubing exposed to elevated-temperature steam service.
Heat Exchangers - Applicable to industrial heat exchangers where Cr-Mo alloy steel is selected for elevated-temperature service.
Petrochemical Equipment - Can be used in selected refinery and petrochemical heating and heat-transfer equipment.
Power Generation - Used for components and heat-transfer systems in thermal power equipment where ASTM A213 alloy-steel tubing is specified.

ASTM A213 specifically covers seamless ferritic and austenitic alloy-steel tubes for boilers, superheaters and heat exchangers.

Product Advantages

Chromium-Molybdenum Alloy - The Cr-Mo composition of T5 provides improved elevated-temperature performance compared with conventional carbon steel tubing.
Seamless Construction - Seamless production eliminates a longitudinal weld seam and is suitable for pressure-containing heat-transfer applications.
Hot Finished Availability - Hot-finished tubes can be supplied for applicable sizes and wall thicknesses according to project requirements.
Custom Dimensions - Outside diameter, wall thickness, tube length and end preparation can be supplied according to customer specifications.
Project Inspection Support - Hydrostatic testing or nondestructive electric testing can be arranged according to the applicable ASTM A213 requirements. ASTM A213 also specifies tension, hardness, flattening and flaring tests for applicable tubing.

Inspection & Testing

Typical inspection includes:
