Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, LR, DNV-GL, KR, CCS , TS, GOST, CCS, TUV, PED |
| Model Number: | S31254 ,254 SMO, 1.4547 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Butt Weld Fittings | Standard: | ASME SA403 , ASTM A403 |
|---|---|---|---|
| Material Grade: | S31254, 254 SMO, 1.4547 | Size: | 1/8"NB TO 48"NB IN |
| Schedule: | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS | Type: | Seamless / ERW / Welded / Fabricated /Forged |
| Form: | Eccentric Reducer, Concentric Reducer | ||
| High Light: | Stainless Steel Weld Elbow,254 SMO Stainless Steel Elbow,WPS31254 Steel Pipe Elbow |
||

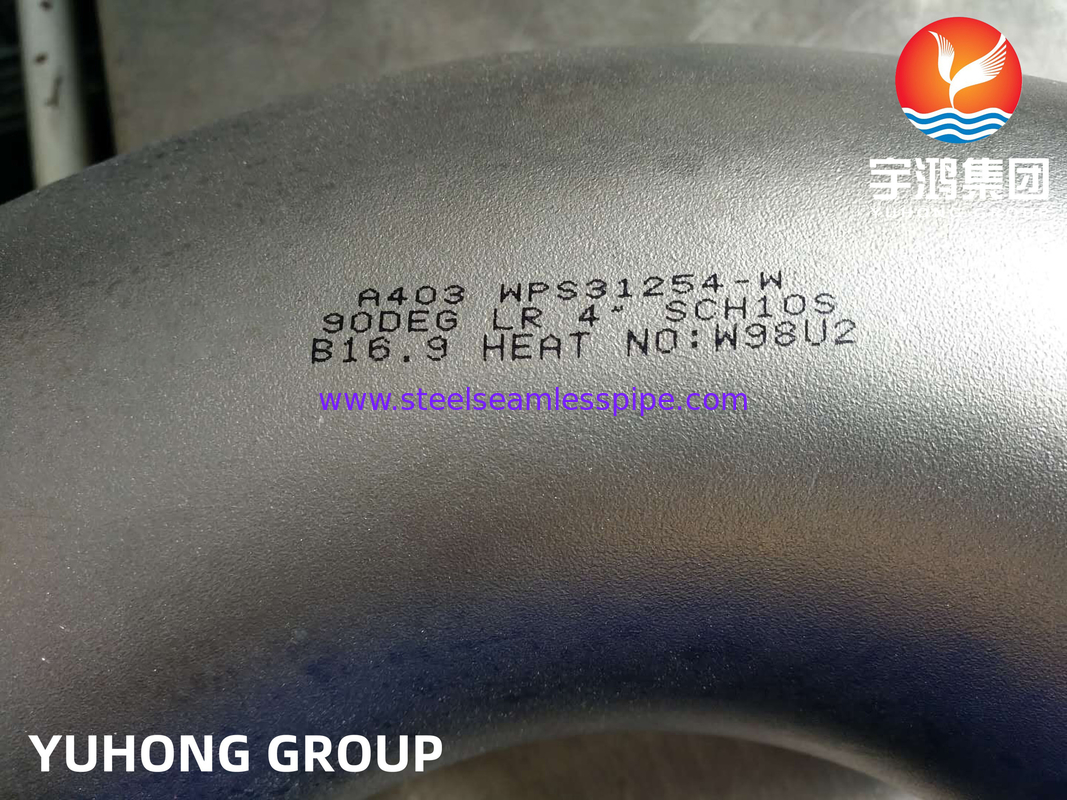

ASTM A403 WPS31254-W Super Austenitic Stainless Steel Elbow
Stainless Steel A403 WPS31254 contains higher chromium and low carbon content. Lower carbon means less chromium carbide precipitation due to welding. This steel type contains as low as 0.03% of carbon content and thus reduces its susceptibility to intergranular corrosion. This kind of steel can be continuously exposed to temperatures of about 1500°F without appreciable scaling. It is applicable in various applications like car headers, machinery parts, screws and also food handling equipment.
ASTM A403 WPS31254-W Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | EN |
| 254 SMO® | S31254 | 1.4547 | X1CrNiMoCuN20-18-7 |
ASTM A403 WPS31254-W Equivalent Grades Chemical Composition
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Ce | Fe | |
| SS 254 SMO | min. | - | 17.5 | - | 0.18 | - | - | - | 19.5 | 0.03 | Balance |
| max. | 0.02 | 18.5 | 0.08 | 0.22 | 0.01 | 1.00 | 0.03 | 20.5 | 0.08 | ||
ASTM A403 WPS31254-W Equivalent Grades Mechanical Properties
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 254 SMO | 650 | 35 | 300 | 50 | 70 |
ASTM A403 WPS31254-W Specification
| Specification | ASTM A403, ASTM SB 366, ASTM B564, ASME SB564, En 2.4816 UNS S31254 |
| Dimensions Standards |
ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MSS-SP-43, MSS-SP-75 |
| Size Range | S31254 / 254 SMO Seamless Butt Weld Fittings: 1/2″ – 10″ S31254 / 254 SMO Welded Butt Weld Fittings: 1/2″ – 48″ |
| Wall Thickness | 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80, STD, 60, 80, XS, 100, 120, 140, 160 Sch XXS |
| Type | Seamless / Welded / ERW/ Fabricated / Forged |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Applicable Standards | 1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow |
| Surface treatment | Sand Rolling, Sand Blasting, Acid Cleaning |
ASTM A403 WPS31254-W Pipe Fittings
| 254 SMO 90 Deg Long Radius Elbow | UNS S31254 F44 Eccentric Reducer |
| UNS S31254 F44 90 Deg Short Radius Elbow | Alloy 254 6mo Stub End |
| Alloy 254 6mo 45 Deg Long Radius Elbow | ASTM A403 WPS S31254 End Cap |
| ASTM A403 WPS S31254 Buttweld Elbow | 254 SMO Stainless Steel Pipe Cap |
| 254 SMO Stainless Steel Elbow | F44 UNS S31254 Reducer |
| F44 UNS S31254 Seamless Butt Weld Fittings | Stainless Steel S31254 1.4547 Long Radius Bend |
| Stainless Steel S31254 1.4547 45 Deg Short Radius Elbow | SMO 254 Duplex Pipe Elbow |
| SMO 254 Duplex U Bend | 1.4547 Stainless Steel 5D Bend |
| 1.4547 Stainless Steel 180 Deg Long Radius Elbow | ASTM A403 UNS S31254 Pipe Tee |
| ASTM A403 UNS S31254 180 Deg Short Radius Elbow | 254 SMO Pipe Cross |
| 254 SMO Equal Cross | UNS S31254 F44 Welded Pipe Fittings |
| UNS S31254 F44 Stubends | Alloy 254 6mo Seamless Pipe Fitting |
| Alloy 254 6mo Equal Tee | ASTM A403 WPS S31254 Pipe Reducer |
| ASTM A403 WPS S31254 Tees | 254 SMO Stainless Steel Pipe Nipple |
| 254 SMO Stainless Steel Reducing Tee | F44 UNS S31254 Pipe End Cap |
| F44 UNS S31254 Eccentric Reducer | Stainless Steel S31254 1.4547 End Pipe Cap |
| Stainless Steel S31254 1.4547 Concentric Reducer | SMO 254 Duplex Pipe Bends |
| SMO 254 Duplex Cross | 1.4547 Stainless Steel Lap Joint |
| 1.4547 Stainless Steel Straight Cross | ASTM A403 UNS S31254 Buttweld Fittings |
| ASTM A403 UNS S31254 Reducing Cross | 254 SMO Piggable Bend |
| 254 SMO Concentric Reducer | UNS S31254 F44 Lateral Tee |
