Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B407 UNS N08811 ( INCOLOY 800HT ) |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Nickel Alloy Seamless Pipe | Standard: | ASTM B407 / ASME SB407 |
|---|---|---|---|
| Material: | UNS N08811 / DIN 1.4959 / INCOLOY 800HT | OD Size: | 1/2" To 24" |
| WT: | Sch 5 To Sch XS | End: | Plain Ends / Beveled Ends |
| Technique: | Cold Drawn | Type: | Seamless, Welded |
| Processing Service: | Bending, Welding, Decoiling, Punching, Cutting | Application: | Oil And Gas Industries, Chemical Industries, Shipbuilding Industries, Heat Exchanger, |
| High Light: | UNS N08811 Nickel Alloy Pipe,DIN 1.4959 Nickel Alloy Seamless Pipe,Cold Drawn Alloy Seamless Pipe |
||

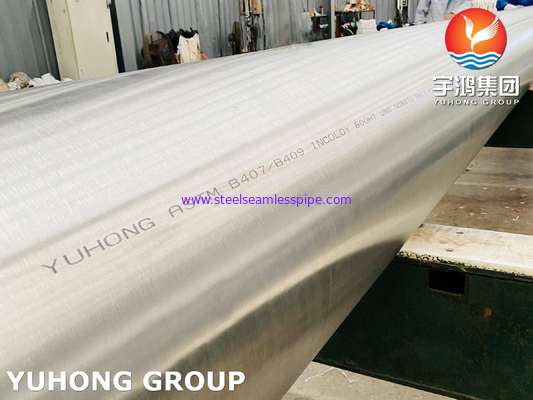

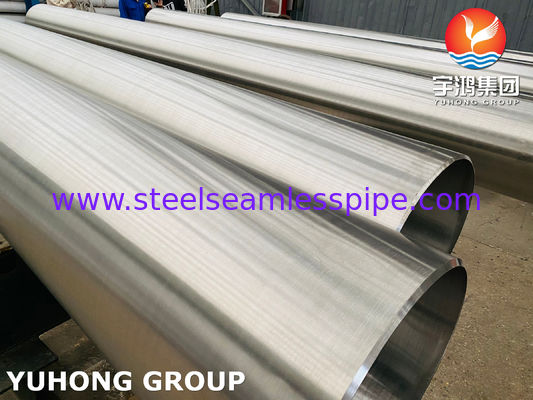

ASTM B407 UNS N08811 DIN / 1.4959 / INCOLOY 800HT SEAMLESS PIPE NICKEL ALLOY PIPE
The incoloy 800HT series of alloys offer good strength retention under exposure to extremely corrosive and high temperature environments along with having good creep and rupture strength. They have found wide usage in chemical plants, refineries and power generation facilities.
Suitable applications are found in process piping, heat exchanger and furnace manufacture.
ASTM B407 Incoloy 800HT Pipes Specification
| Specifications | ASTM B163 / ASTM B407 / ASTM B423 / ASME SB163 / ASME SB407 / ASME SB423 |
| Grades | INCOLOY 800 / INCOLOY 800H / INCOLOY 800HT / INCOLOY 825 / UNS NO8800 / UNS NO8810 / UNS NO8811 / UNS NO8825 |
| Type | Cold Drawn Seamless / Welded / ERW |
| OD Size | Seamless - 1/2" NB to 16" NB (Nominal Bore Size) Welded / ERW- 1/2" NB to 24" NB (Nominal Bore Size) |
| Wall Thickness | Schedule 5 to Schedule XS |
| Length | Single Random Length, Double Random Length And Customize Size. |
| Pipe Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
800 / 800H / 800HT Incoloy Pipes Equivalent Grades
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
OR |
|
Incoloy 800 |
1.4876 |
N08800 |
NCF 800 |
NA 15 |
ЭИ670 |
Z8NC32-21 |
X10NiCrAlTi32-20 |
XH32T |
|
Incoloy 800H |
1.4958 / 1.4876 |
N08810 |
NCF 800H |
NA 15(H) |
ЭИ670 |
Z8NC33-21 |
X5NiCrAlTi31-20 |
XH32T |
|
Incoloy 800HT |
1.4859 / 1.4876 |
N08811 |
NCF 800HT |
NA 15(HT) |
ЭИ670 |
– |
X8NiCrAlTi32-21 |
XH32T |

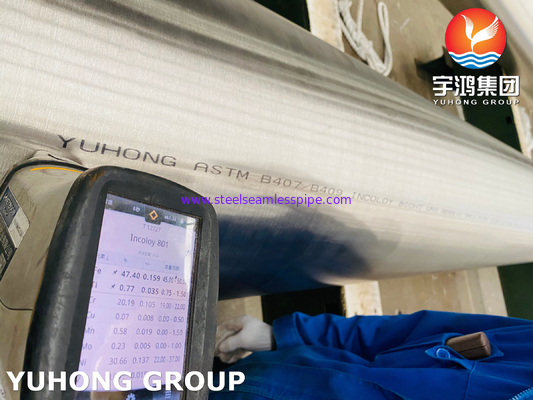

ASTM B407 Incoloy 800HT Pipes Chemistry Composition
|
Ni, % |
Cu, %
|
Fe, %
|
Mn, %
|
C, %
|
Si, %
|
S, %
|
Cr, %
|
Al, %
|
Ti, %
|
|
30.0-35.0
|
0.75 max
|
39.5 min
|
1.50 max
|
0.06-0.10
|
1.00 max
|
0.015 max
|
19.0-23.0
|
0.15-0.60
|
0.15-0.60
|
ASTM B407 Incoloy 800HT Pipes Mechanical Properties
|
Tensile Strength , MPa
|
Yield Strength, MPa
|
Elongation, %
|
|
|
450 min
|
170 min
|
30 min
|
Hot-finished Annealed
|
|
450 min
|
170 min
|
30 min
|
Cold-worked Annealed
|

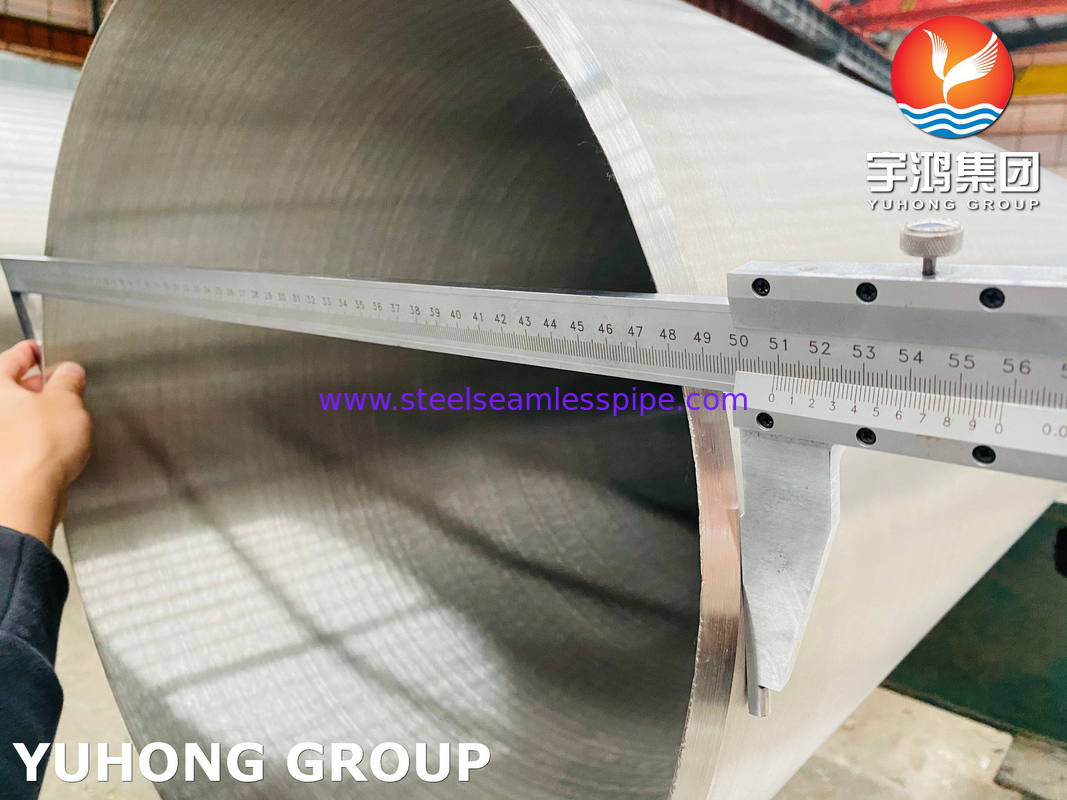

Outside Diameter & Tolerance
|
|
Outside Diameter, mm
|
Tolerance, mm
|
|
Cold-Finished
|
12.7≤OD＜15.8
|
±0.127
|
|
15.8＜OD≤38.1
|
±0.19
|
|
|
38.1＜OD≤88.9
|
±0.254
|
|
|
88.9＜OD≤114.3
|
±0.381
|
|
|
114.3＜OD≤152.4 |
±0.508
|
|
|
152.4＜OD≤168.3
|
±0.635
|
|
|
Hot-Finished
|
63.5≤OD＜139.7
|
±0.787
|
|
139.7≤OD≤234.9
|
±1.19
|
Wall thickness & Tolerance
|
|
Outside Diameter, mm |
Tolerance, % |
|
|
Average Wall |
Minimum Wall |
||
|
Cold-Finished |
12.7≤OD＜15.8 |
±15.0 |
- |
|
15.8＜OD≤38.1 |
±10.0 |
- |
|
|
38.1＜OD≤88.9 |
±10.0 |
- |
|
|
88.9＜OD≤114.3 |
±10.0 |
- |
|
|
114.3＜OD≤152.4 |
±12.5 |
- |
|
|
152.4＜OD≤168.3 |
±12.5 |
- |
|
|
Hot-Finished |
63.5≤OD＜139.7 |
±12.5 |
+28.5/-0 |
|
139.7≤OD≤234.9 |
±12.5 |
+28.5/-0 |
|
More information about Incoloy 800, Incoloy 800H, Incoloy 800HT
Incoloy 800, Incoloy 800H, Incoloy 800HT, also named as Alloy 800, Alloy 800H, Inconel 800, Alloy 800HT are nickel-iron-chromium alloys with good strength and excellent resistance to oxidation and carburization in high-temperature exposure. These nickel steel alloys are identical except for the higher level of carbon in alloy 800H, and the addition of up to 1.20 percent aluminum and titanium in alloy 800HT. Incoloy 800 was the first of these alloys and it was slightly modified into Incoloy 800H. This modification was to control carbon (.05-.10%) and grain size to optimize stress rupture properties. Incoloy 800HT has further modifications to the combined titanium and aluminum levels (.85-1.20%) to ensure optimum high temperature properties. The nickel alloy is dual certified (800H/HT) and combines the properties of both forms. Incoloy 800H/HT alloy was intended for high temperature structural applications. The nickel content makes the alloys highly resistant to both chloride stress-corrosion cracking and to embrittlement from precipitation of sigma phase. The general corrosion resistance is excellent. In the solution annealed condition, alloys 800H and 800HT have superior creep and stress rupture properties.
The characteristics of Incoloy 800, Incoloy 800H and Incoloy 800HT
- High temperature strength
- High creep rupture strength
- Resistant to oxidation and carburization in high temperature environments
- Good corrosion resistance in many acidic environments
- Good resistance to many sulfur-containing atmospheres
The applications of Incoloy 800, Incoloy 800H and Incoloy 800HT
- Ethylene furnace quench boilers
- Hydrocarbon cracking
- Valves, fittings and other components exposed to corrosive attack from 1100-1800° F
- Industrial furnaces
- Heat-treating equipment
- Chemical and petrochemical processing
- Super-heater and re-heaters in power plants
- Pressure vessels
- Heat exchangers
