Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK |
| Model Number: | JIS B2220 SS316L SOP FF Flanges |
| Minimum Order Quantity: | 1PC |
|---|---|

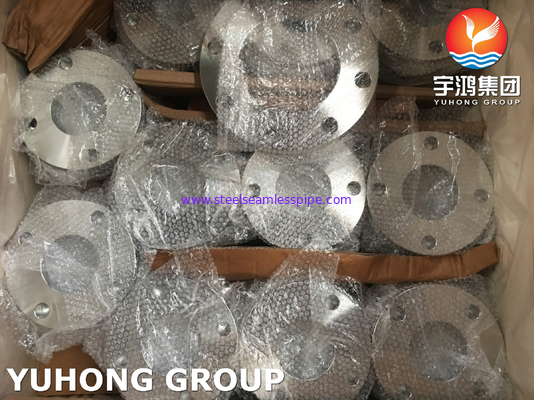

| Packaging Details: | PALLET, PLYWOOD CASE |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Stainless Steel Flange | Standard: | JIS B2220, ASTM A182 |
|---|---|---|---|
| Material: | 304, 304L, 304H, 309S, 310S, 316L, Etc. | Size: | 1/2" To 48" |
| Face Type: | FF, RF, RTJ | Flange Type: | Weld Neck, Slip-On, Blind, Plate, Loose, Orifice |
| Pressure: | 5K, 10K, 16K, 20K, 30K | Application: | Equipment, Pipeline, Marine, Etc. |
| High Light: | SS316L SOP FF Flanges,SOP Stainless Steel Forged Flanges,JIS B2220 Stainless Steel Forged Flanges |
||

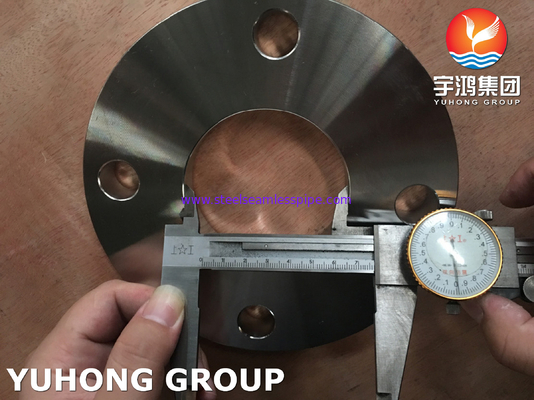

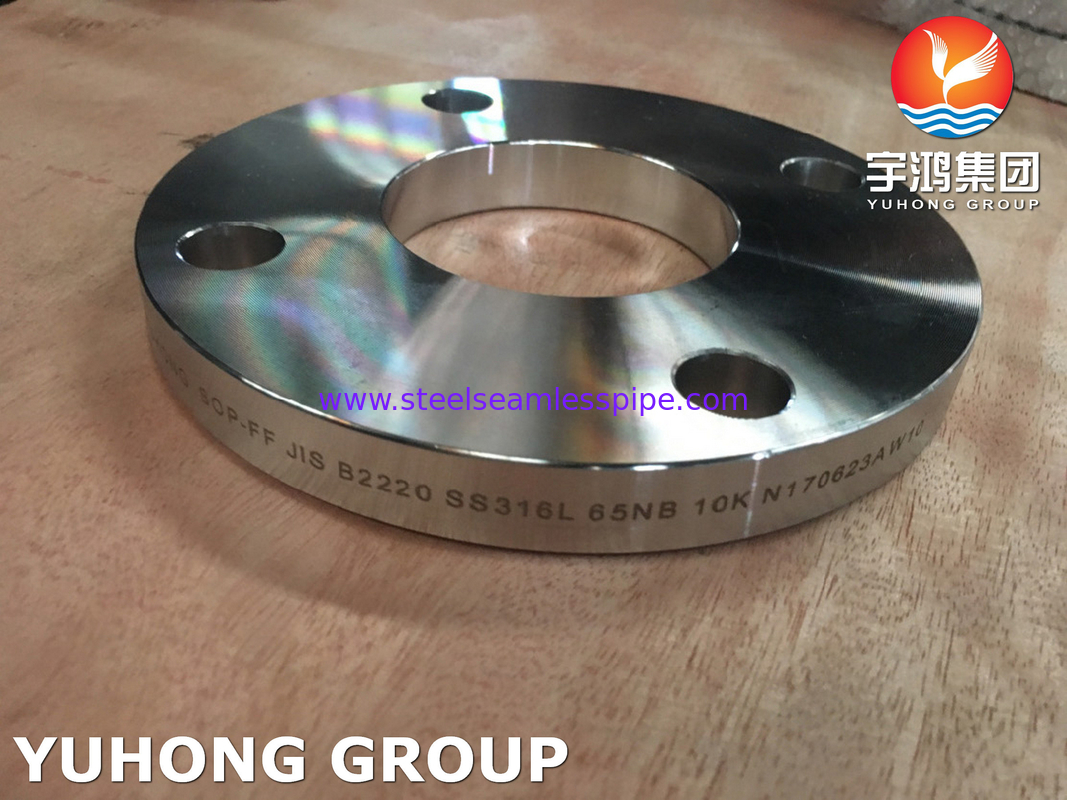

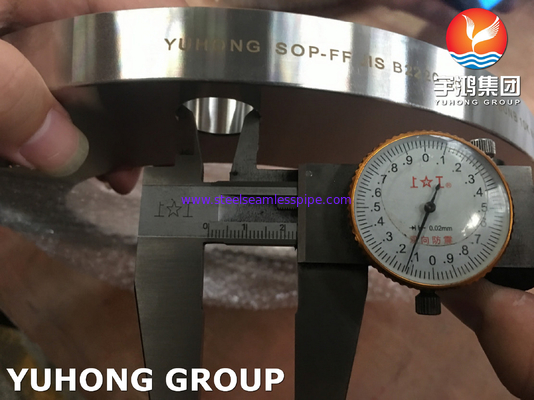

Forged JIS B2220 SOP FF Plate Flange Stainless Steel 316L Slip On Flanges
The Japanese Standard Specification, JIS B2220 10K flanges, comprises high-quality stainless steel and available in different types like the slip-on and blind flange. This Standard specifies steel pipe flanges (hereafter referred to as “flanges”) of nominal size 10A to 1500A for nominal pressure 5K, 10K, 10K light type,16K, 20K and 30K which are used to join parts for piping, such as steel pipes and valves. It typically used in fuel and water pipelines, the two flange plates will be bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
Specification
| ASTM Standard Stainless Steel 316L Flange | 150# Stainless Steel 316L Flange, Class 300 Lbs SS 316L Flange, 600# Stainless Steel S31603 Flange, ANSI B16.5 Stainless Steel 316L Class 900 Lbs Flange, SS 316L 1500# Flange, Stainless Steel 316L 2500 Lbs Flange, ANSI B16.47 Series A or MSS SP-44 SS 316L Flange, ANSI B16.47 series B or API-605 Stainless Steel 316L Flange, ANSI B16.48 Stainless 316L Flange, ANSI B16.36 Steel 316L Flange |
| DIN Standard Stainless Steel 316L Flange | Stainless Steel 316L DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638, DIN 2673 Flange |
| JIS Stainless Steel 316L Flange | Stainless Steel 316L JIS Flange, JIS B2220 5K / JIS B2220 10K / JIS B2220 16K / JIS B2220 20K SS 316L Flange |
| EN Stainless Steel 316L Flange | Stainless Steel 316L EN Flange, EN 1092-1 SS 316L Flange |
| BS 4504 Stainless Steel 316L Flange | BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250 Stainless Steel 316L Flange |
| BS Stainless Steel 316L Flange | BS 10 Stainless Steel 316L Flange, SS 316L BS Table D Flange, 316L Steel BS Table E Flange, Stainless Steel S31603 BS Table F Flange, Stainless 316L BS Table H Flange |
Forged and Plate Flanges
| Products | |
| ASTM A182 SS 316L Slip-On Flanges | ASTM A182 SS 316L Threaded Flanges |
| ASTM A182 SS 316L Weld Neck Flanges | ASTM A182 SS 316L Socket Weld Flanges |
| ASTM A182 SS 316L Blind Flanges | ASTM A182 SS 316L Reducing Flanges |
| ASTM A182 SS 316L Lap Joint Flanges | ASTM A182 SS 316L Plate Flanges |
| ASTM A182 SS 316L Orifice Flanges | ASTM A182 SS 316L Forged Flanges |
| ASTM A182 SS 316L Ring Type Joint Flanges | ASTM A182 SS 316L Square Flanges |
SS316L Flange Chemical Composition
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
SS316L Flange mechanical properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS316L Flange Equivalent Grades
|
STANDARD |
WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 /1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Applications
1. Reverse osmosis desalination equipment and pumps
2. FGD Scrubbers
3. Chemical process tanks and pipelines
4. Seawater heat exchangers
5. Tall oil distillation columns and packing
6. Offshore oil and gas production equipment
7. Pulp bleaching plant washers, vats, press rolls and pipelines
