ASTM A182 F316 Tube Sheet Large Diameter Stainless Steel Forged For Heat Exchanger Components

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A182 F316

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1500 Tons Per Month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Standard:	ANSI, JIS, DIN, EN, BS, Etc.	Size:	15mm-6000mm, STD, 1/2"-120", DN 10-DN3000
Material:	Steel	Product Name:	Long Welding Neck Flange, Pipe Flange, Hydraulic Flange, Stainless Steel Flange
Application:	Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc.	Pressure:	Class 150/300/600/900/1500/2500, PN 2.5/6/10/16/25/40, 0-63MPa, 150LB-2500LB
Type:	Treaded Flange, Slip On Flange, Socket Weld Flange, Weld Neck Flange, Lap Joint Flange	Name:	DIN 2573 2543 GOST Stainless Steel Pipe Slip On Flange PN16, ANSI B16.5 150LB Weld Neck Carbon Steel Pipe Flanges, ANSI B16.5 2 Inch Pipe Carbon Steel Flange Class125, Stainless Steel Pipe Fittings
Process:	Forged, Drilling/Bending/Stamping, Casting, Heating Treament	Surface Treatment:	Heat Treament, Pickeling, Galvanized, Customize
Inspection:	Mechinical Property Inspection, Factory Or Third Party Assigned, 100% Inspection	Connection:	Welding, Pipe And Pipe, Flange
Connection Type:	Welding Neck, Slip On, Socket Weld, Threaded, Lap Joint, Etc.	Face Type:	Raised Face, Flat Face, Ring Joint, Etc.
Packaging:	Wooden Case, Pallet, Etc.	Shape:	Round, Square, Rectangle, Oval, Etc.
Surface Treatment:	Galvanized, Black, Polished, Etc.
Highlight:	F316 Stainless Steel Forged Tube Sheet , ASTM A182 Forged Tube Sheet , Forged Fixed Tube Heat Exchanger

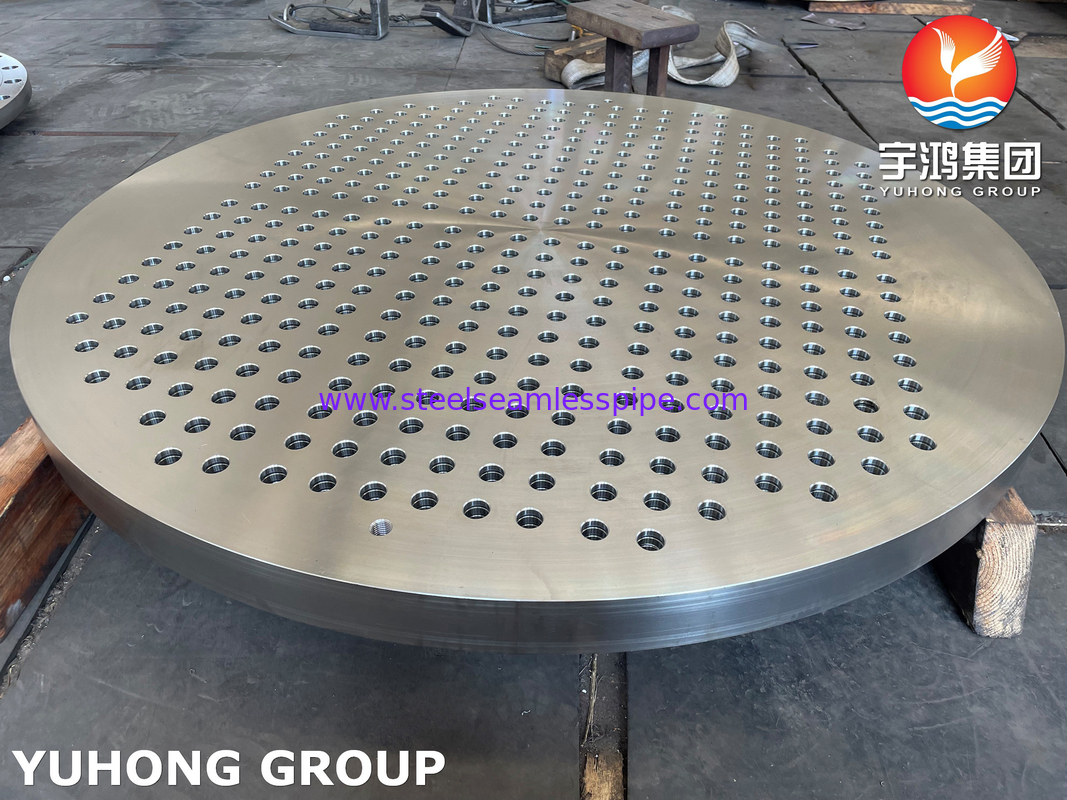

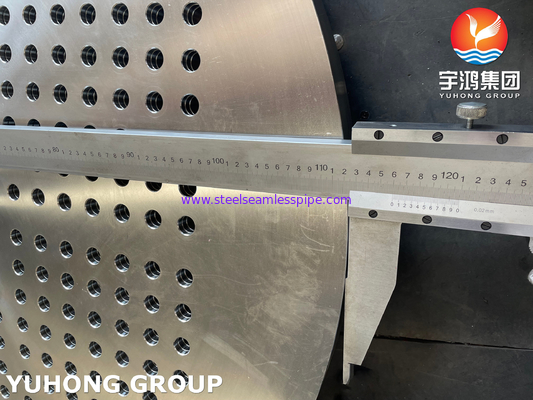

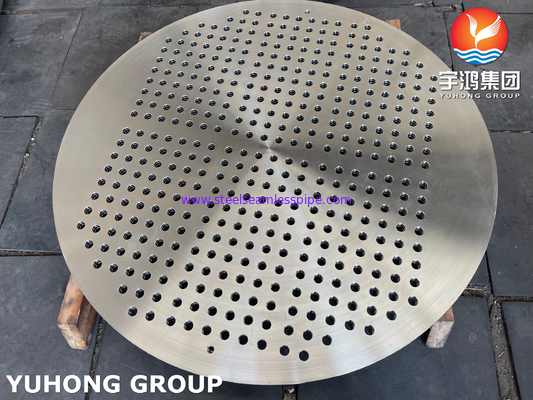

ASTM A182 F316 Tube Sheet Large Diameter Stainless Steel Forged For Heat Exchanger Components

Yuhong Holding Group Co., Ltd., an ISO 9001, ISO 14001:2015, OHS 18001:2007, and PED 2014/68/EU certified manufacturer, specializes in producing high-quality forged tube sheets and flanges for heat exchanger applications.

Product Overview:

Our ASTM A182 F316/F316L forged tube sheets represent premium-grade austenitic stainless steel components, engineered for superior corrosion resistance and mechanical properties.

Technical Specifications:

Material Properties:

Parameter	F316	F316L
Tensile Strength	≥515 MPa	≥485 MPa
Yield Strength	≥205 MPa	≥170 MPa
Elongation	≥40%	≥40%
Hardness	≤217 HB	≤217 HB

Chemical Composition:

Element	C	Mn	P	S	Si	Cr	Ni	Mo
F316	≤0.08	≤2.00	≤0.045	≤0.030	≤1.00	16-18	10-14	2-3
F316L	≤0.03	≤2.00	≤0.045	≤0.030	≤1.00	16-18	10-14	2-3

Key Features:

Superior corrosion resistance
Excellent pitting and crevice resistance
High-temperature strength
Outstanding weldability
Excellent formability
Superior mechanical properties

Manufacturing Standards:

ASME/ANSI B16.5
DIN 2641/2642
BS 1560/4504
JIS B2220
KS B1503
AS2129

Applications:

Heat Exchangers
Chemical Processing Equipment
Marine Applications
Oil & Gas Industry
Power Generation
Petrochemical Plants
Food Processing Equipment

Operating Capabilities:

Temperature Range: -254°C to 800°C
Pressure Rating: Up to Class 2500
Excellent performance in chloride environments
Superior resistance to stress corrosion cracking

Quality Assurance:

100% Material Traceability
Ultrasonic Testing
Liquid Penetrant Testing
Dimensional Inspection
PMI Testing
Third-party Inspection Available

Manufacturing Process:

Material selection and testing
Forging process
Heat treatment
Machining
Surface finishing
Quality inspection
Marking and packaging

Special Features:

Custom sizes available
Special shapes on request
Various surface finishes
Heat treatment options
Multiple testing protocols available

Yuhong Holding Group maintains strict quality control throughout the manufacturing process, ensuring each product meets international standards and customer specifications. Our advanced manufacturing facilities and experienced technical team guarantee consistent quality and reliable performance. Contact us today for customized tube sheet solutions tailored to your specific requirements.

Certifications Available:

Material Test Certificates (EN 10204 3.1/3.2)
NACE Compliance
PED Compliance
Custom Certification Requirements
