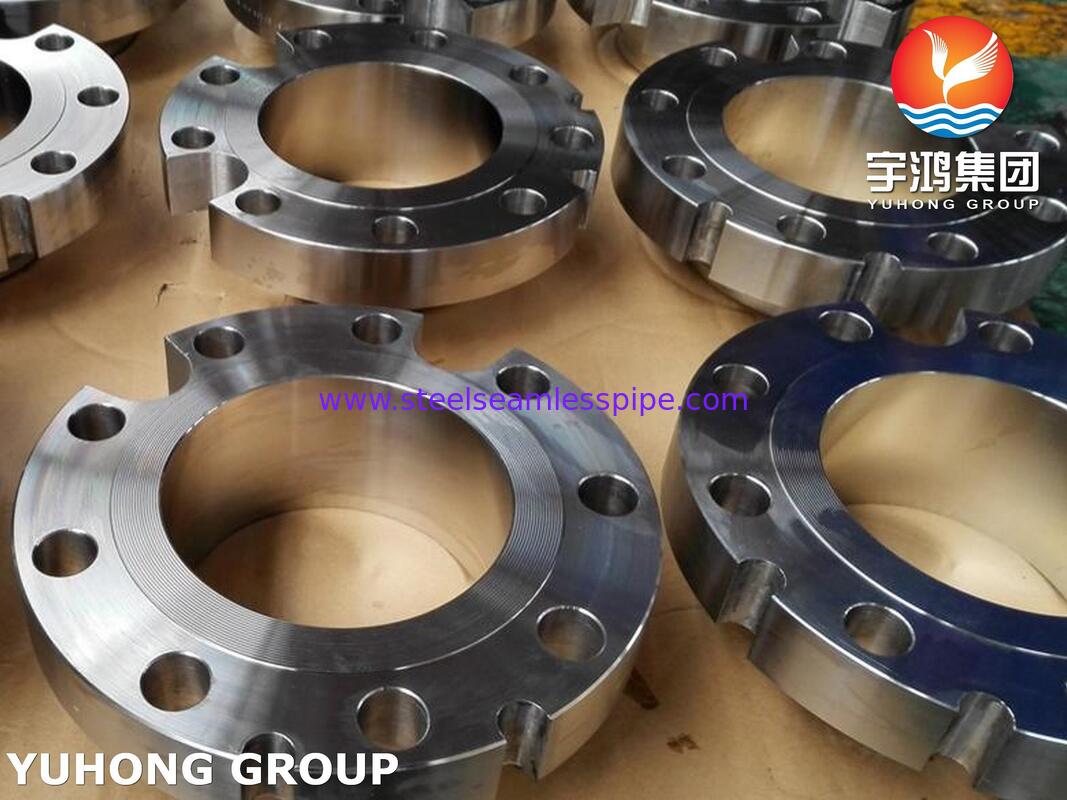

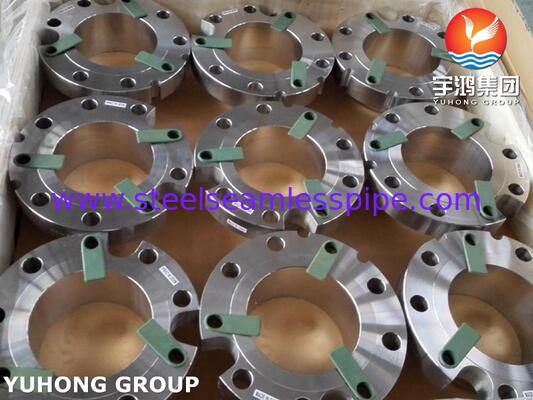

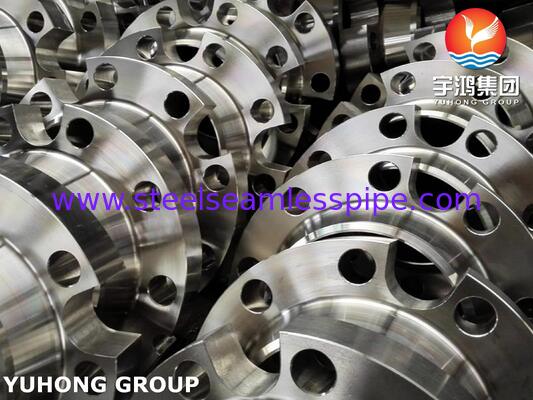

ASTM A182 F304L Stainless Steel Flange Forged Special Shaped Flange Custom Flange

ASTM A182 Stainless Steel UNS S30403 Special Flange F304L Forged Special Shaped Flange

ASTM A182 F304L Stainless Steel Special Flange is a custom-engineered solution used when a standard, off-the-shelf flange cannot meet the geometric, spatial, or performance demands of a specific connection point. In the piping and mechanical industries, a flange is a method of connecting pipes, valves, pumps, and other equipment to form a piping system. It also provides easy access for cleaning, inspection, or modification.

While standard flanges (like Weld Neck, Slip-On, Blind, and Socket Weld) are round and conform to specific dimensional standards (ASME B16.5, ASME B16.47), a special shaped flange is any flange that deviates from these standard circular shapes or dimensions to meet a specific engineering requirement. These are often custom-made components designed for unique applications, space constraints, or non-standard connection points.

Why Use a Special Shaped Flange? Engineers opt for special shaped flanges for several reasons:

1. Non-Circular Connections: The mating equipment (like a gearbox, pump casing, or chute) might have an oval, square, or rectangular bolt pattern. A special flange matches this exact interface.

2. Space Constraints: In cramped industrial environments, a full-size round flange might not fit. An oval or custom-shaped flange can provide the necessary seal in a limited space.

3. Alignment Requirements: Sometimes, bolt holes need to be oriented in a very specific way that isn't possible with standard, symmetrical flanges.

4. Adapting to Odd Ducting: In HVAC, material handling, or specific process industries, ductwork is often rectangular or square. A special flange allows a round pipe to connect to a rectangular chute or vessel.

5. High-Stress or Specialized Applications: Standard flanges might not be sufficient for extremely high pressures, temperatures, or corrosive environments, requiring a custom design with thicker walls or specialized alloys.

Equivalent Grades of ASTM A182 F304L Stainless Steel Special Flange

Special shaped flanges can be made from a wide variety of materials to suit the environment:

• Carbon Steel: (e.g., ASTM A105, A350) - General purpose, oil and gas, structural.

• Stainless Steel: (e.g., ASTM A182 F304/F316) - Corrosive environments, food processing, pharmaceuticals.

• Alloy Steel: (e.g., ASTM A182 F11/F22) - High-temperature and high-pressure services (like power generation).

• Duplex & Super Duplex: (e.g., ASTM A182 F51/F55) - Offshore and marine applications requiring high strength and corrosion resistance.

• Nickel Alloys: (e.g., Inconel, Hastelloy) - Extremely corrosive or high-temperature environments.

Chemical Composition of ASTM A182 F304L Stainless Steel Special Flange %

Mechanical Properties of ASTM A182 F304L Stainless Steel Special Flange

Common Types of Special Shaped Flanges

1. Oval Flanges: Often used where space is limited in one direction (e.g., on valve bodies, compressor casings, or in shipbuilding). They provide a good sealing surface with a smaller footprint than a circle.

2. Square Flanges: Common in low-pressure ducting work, water treatment tanks, and agricultural equipment. They are easier to fabricate for square or rectangular connections and are often used with simple gaskets cut from sheet material.

3. Rectangular Flanges: Very common in material handling (dust collection systems), HVAC (heating, ventilation, and air conditioning), and chemical processing where large volumes of air or materials are moved through rectangular ducting.

4. Segmented or Clamshell Flanges: These are flanges made in two or more pieces that are bolted around an existing pipe. They are used for repairs, reinforcement, or for attaching branches to an existing line without cutting the pipe (Hot Tapping).

5. Orifice Flanges with Special Taps: While orifice flanges are a standard type, "special" versions include additional or differently positioned pressure tap holes for more complex flow measurement setups.

6. Custom Forgings: Any flange designed from scratch to meet a specific engineering drawing, incorporating unique bolt hole patterns, unusual hub lengths, or special tapers.

Application
