Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | B366 WP904L Stainless Steel Elbow |
| Minimum Order Quantity: | 1 PC |
|---|---|

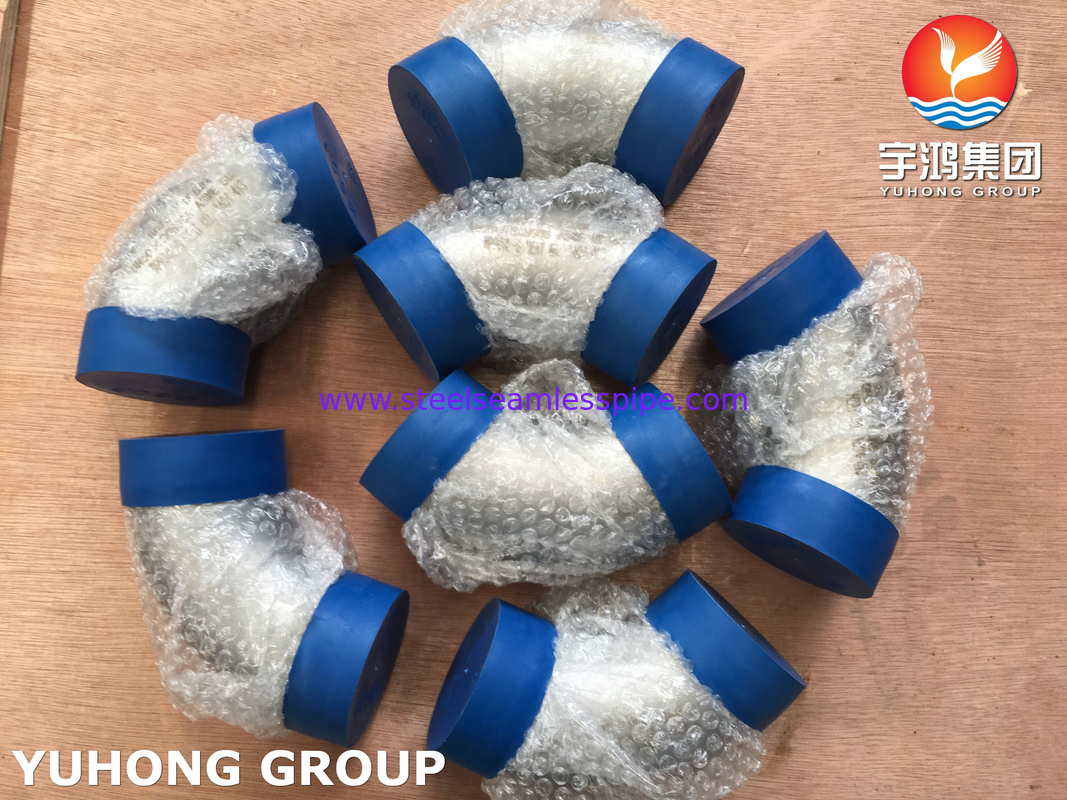

| Packaging Details: | Plwood case or Pallet |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Product Name: | Stainless Steel Butt Weld Elbow | Specification: | ASTM B366, ASTM A403 |
|---|---|---|---|
| Dimension Standard: | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 | Material: | Stainless Steel 310S, 304, 304L, 304H, 316L, 904L Etc. |
| O.D.: | 1/8”NB To 48”NB | W.T.: | Schedule 10s - Schedule XXS |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D Or Custom | Type: | LR, SR, 45/90/180 Degree Elbow |
| Connection: | Welding | ||
| High Light: | WP904L 90 Degree LR Elbow,ANSI B16.9 LR Elbow,Stainless Steel Pipe Fitting Elbow |
||

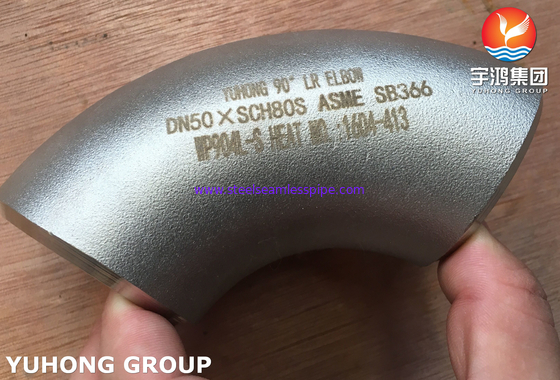

ANSI B16.9 Stainless Steel Buttweld Pipe Fitting , ASTM B366 WP904L 90 Degree LR Elbow
YUHONG GROUP is one of the biggest projects pipeline products supplier in China. Our products contain steel pipes / tubes, fittings and flanges. With decades years of development, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Stainless steel UNS N08904/904L Buttweld elbow is a low Carbon stainless steel grade, alloyed with Copper and Molybdenum, with the normal austenitic base. Chromium-Nickel and Molybdenum give an unmatched corrosion resistance power to the steel grade, especially against acids like sulphuric acid, phosphoric and acetic acid.
ASTM B366 WP904L Stainless Steel Pipe Fittings Specifications
| Stainless Steel ASTM B366 WP904L Fittings Specifications | ASTM B366/ ASME SB366 |
|---|---|
| Stainless Steel 904L Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| ASTM B366 WP904L Pipe fittings Types |
|
| ASTM B366 WP904L SS Pipe Fittings size | ASTM B366 WP904L Seamless Butt Weld Fittings: 1/2" - 10" ASTM B366 Grade WP904L Welded Butt Weld Fittings: 1/2" - 48" |
| SS WP904L Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| 904L Stainless Steel FittingsType | DN15-DN1200 |
| ASTM B366 904L Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Gr WP904L Pipe Fitting |
| Size Range |
1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) SB 366 WP904L Buttweld Fitting |
| SS Grade WP904L Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| ASTM B366 WP904L Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| 904L Stainless Steel Buttweld Pipe Fittings Test Certificates | EN 10204/3.1 Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | Grade WP904L Stainless Steel 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
Other materials
| Nickel Alloy | ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C276) |
| Stainless Steel | ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H |
| Duplex Steel | ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760 |
| Carbon Steel | ASTM / ASME A 234 WPB, WPC ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Alloy Steel | ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91 |
ASME SB366 904L Stainless Steel Buttweld Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Butt Weld Elbow (90°)
Pipe elbow fittings is a very important pipe fitting. When we talk about a pipe elbow, it means a length of pipe with a sharp bend in it. Pipe elbows are fitting accessories which are used widely in various industrial sectors in pipe fitting. A pipe elbow is frequently used in pressurized applications and is available in various shapes and sizes for use in different applications. A pipe elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction.
ASTM B366 WP904L Fittings Applications
Oil and Gas Pipeline
Chemical Industry
Plumbing
Heating
Water Supply Systems
Power Plant
Paper & Pulp Industry
Food Processing Industry
Fabrication Industry
