ASME SB462 UNS N10276 Nickel Alloy Plug NPT ASME B16.11 Hastelloy C276 Forged Fittings

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASME SB462 UNS N10276 / C276 Plug NPT

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	PLYWOOD CASE / PALLET
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (355)

Stainless Steel Seamless Tube (354)

Duplex Stainless Steel Pipe (144)

Duplex Stainless Steel Tube (41)

Needle Tube (175)

Fin Tube (765)

Heat Exchanger (45)

Heat Exchanger Tube (485)

Heat Exchanger Tube Bundle (57)

Heat Exchanger Tubesheet (133)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (136)

Nickel Alloy Pipe (280)

Nickel Alloy Tube (114)

Copper Alloy Tube (259)

Alloy Steel Tube (229)

Titanium Tube (22)

Bright Annealed Tube (165)

Boiler Tube (166)

Steel Fitting (888)

Steel Flange (693)

Others (413)

Cladding Parts (9)

Detailed Product Description

Product Name:	Plug NPT	Material:	UNS N10276 / 2.4819 / Hastelloy C276
Size:	1/8" To 4"	Pressure:	Class 3000#, 6000#, 9000#
Length:	Can Custom	Type:	NPT
Application:	Petroleum, Chemical, Onshore Adn Offshore, Shipbuilding, Etc
High Light:	ASME SB462 UNS N10276 Forged Fittings, Hastelloy C276 Plug NPT

ASME B16.11 Hastelloy C276 Forged Fitting, ASME SB462 UNS N10276 / 2.4819 Plug NPT

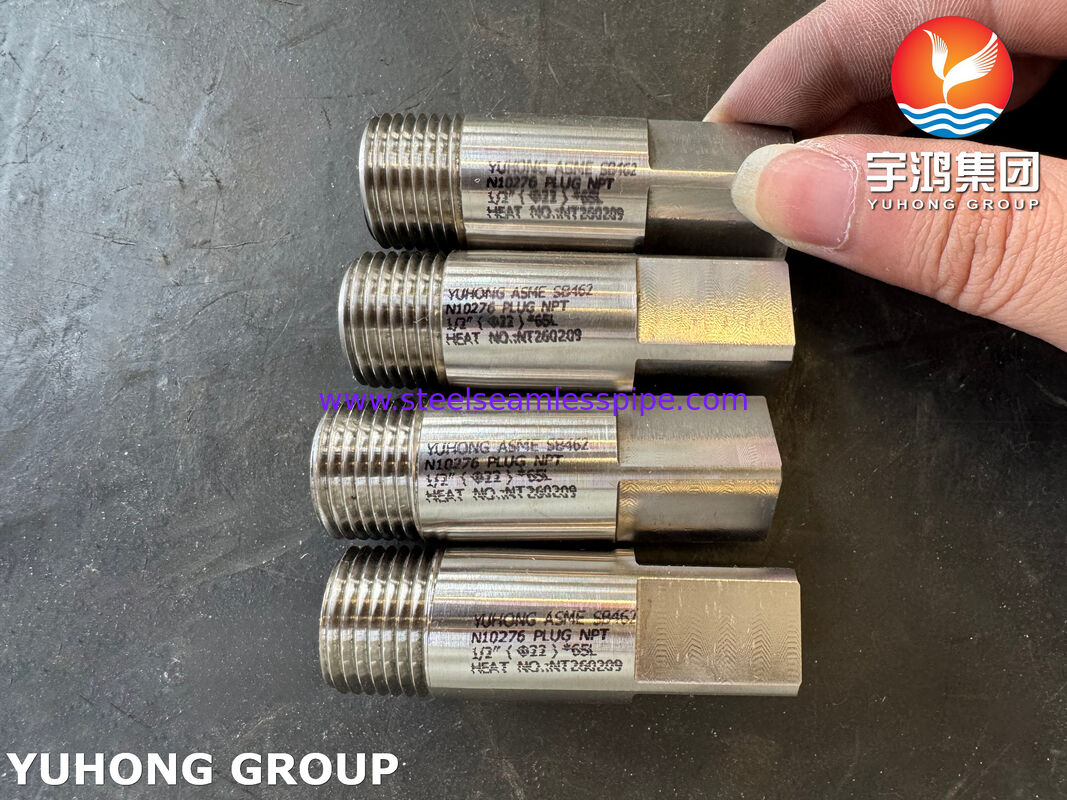

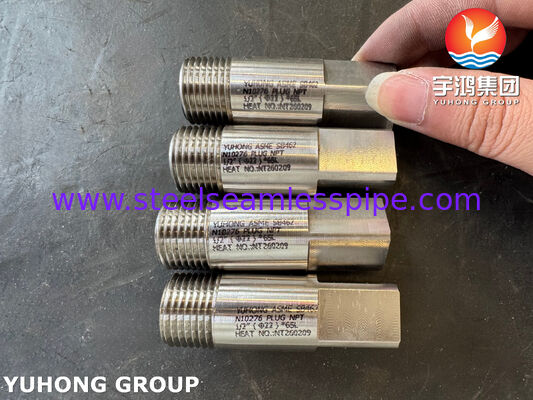

A Hastelloy C276 forged NPT plug, material per ASME SB462 UNS N10276, a forged pipe plug made from Hastelloy C276 / UNS N10276, with NPT tapered threads, where the material conforms to ASME SB462 and the fitting dimensions, pressure class, and marking conform to ASME B16.11. Forging gives better mechanical strength, toughness, and pressure tightness than casting. A male-threaded fitting used to close or blank off a threaded opening. It has external threads and is installed into a coupling, tee, elbow, or other threaded port.

Equivalent Grades of ASME SB462 UNS N10276 LWN Flange B16.5 Hastelloy C276 Long Weld Neck Flange

STANDARD	UNS	WNR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	-	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Chemical Composition of of ASME SB462 UNS N10276 LWN Flange B16.5 Hastelloy C276 Long Weld Neck Flange

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.010 max	15.00 – 17.00	1.00 max	0.08 max	4.00 – 7.00	0.04 max	0.03 max	2.5 max	14.50 – 16.50

Mechanical properties of ASME SB462 UNS N10276 LWN Flange Hastelloy C276 Long Weld Neck Flange

(Minimum value at 20℃)

Tensile Strengthσb/MPa	Yield Strengthσp0.2/MPa	Elongationσ5 /%
690	283	40

It is a threaded plug, not a weld fitting. It seals only when installed in a matching NPT female port with proper sealant and correct torque. Verify pressure class, temperature, and media compatibility before use.

Select the correct size and class
Match the plug to the female NPT port: size, thread type, and ASME B16.11 class — normally 2000, 3000, or 6000.
Confirm material suitability
Use Hastelloy C276 / UNS N10276 where resistance is needed to chlorides, seawater, acids, hypochlorite, and mixed corrosive media.
Prepare the threads
Clean both threads. Apply PTFE tape or a compatible anti-seize/sealant. Nickel alloys can gall, so lubrication matters.
Install the plug
Thread it into the matching NPT opening by hand, then tighten with a wrench. Do not over-torque.
Check tightness
Pressure-test or leak-test according to the system procedure before service.
Operate within limits
Stay within the ASME B16.11 pressure/temperature rating and the corrosion limits of UNS N10276.
